Hitech Hydraulic Reversible Plough

FEATURES



  1. It has a pair of three sets of mold board ploughs which can be changed or reversed to work in both directions. And its reversible action makes the ploughing operation faster & more economical.
  2. Reversing of the Furrow easily done by hydraulic actuation mechanism.
  3. Since Two Furrows are used it reduces ploughing time.
  4. It perform the function of deep opening and loosing of soil.
  5. It lifts the soil-clod and throws it on the soil surface breaking the soil-clod into smaller particle size.
  6. The plough is capable for infinite angle adjustment for left hand and right hand work.
  7. The plough is protected against damage by an additional shear bolt device. Same plough can be used for various width of cut

SPECIFICATION

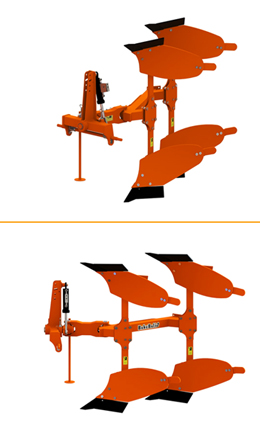

image 1
Description 2 Bottom 3 Bottom (2+1)
Size of Board in inch 12,14,16
Complete width of Cut in (inch) 20,24,28 30,36,42
Depth of Cut (inch) 9-16
Size of frame mm HD Sq. pipe 95 X 95 mm
Material of Shear Bar & land slide Boron Steel
Material of Shear plate Boron Steel
Actuation of change of Board Hydraulic
Safety Shear Bolt
Weight (Approx.) in Kgs 435 610
Suitable HP Range 50 - 60 70-90
