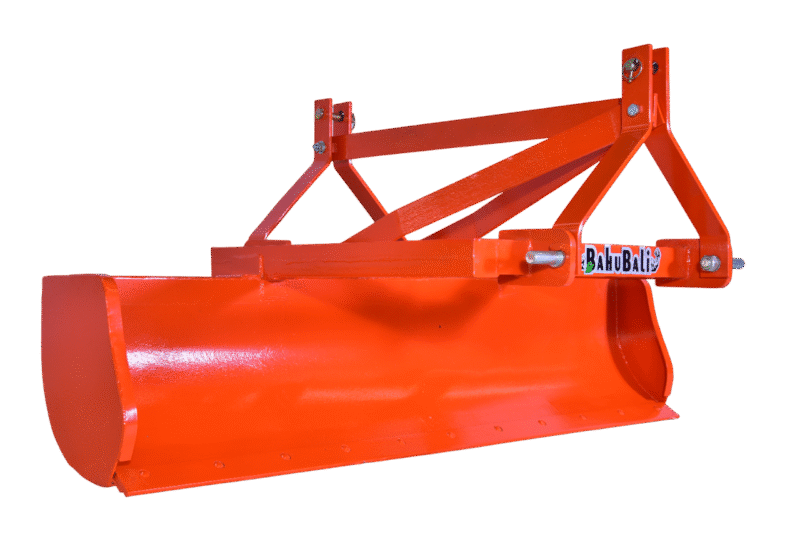

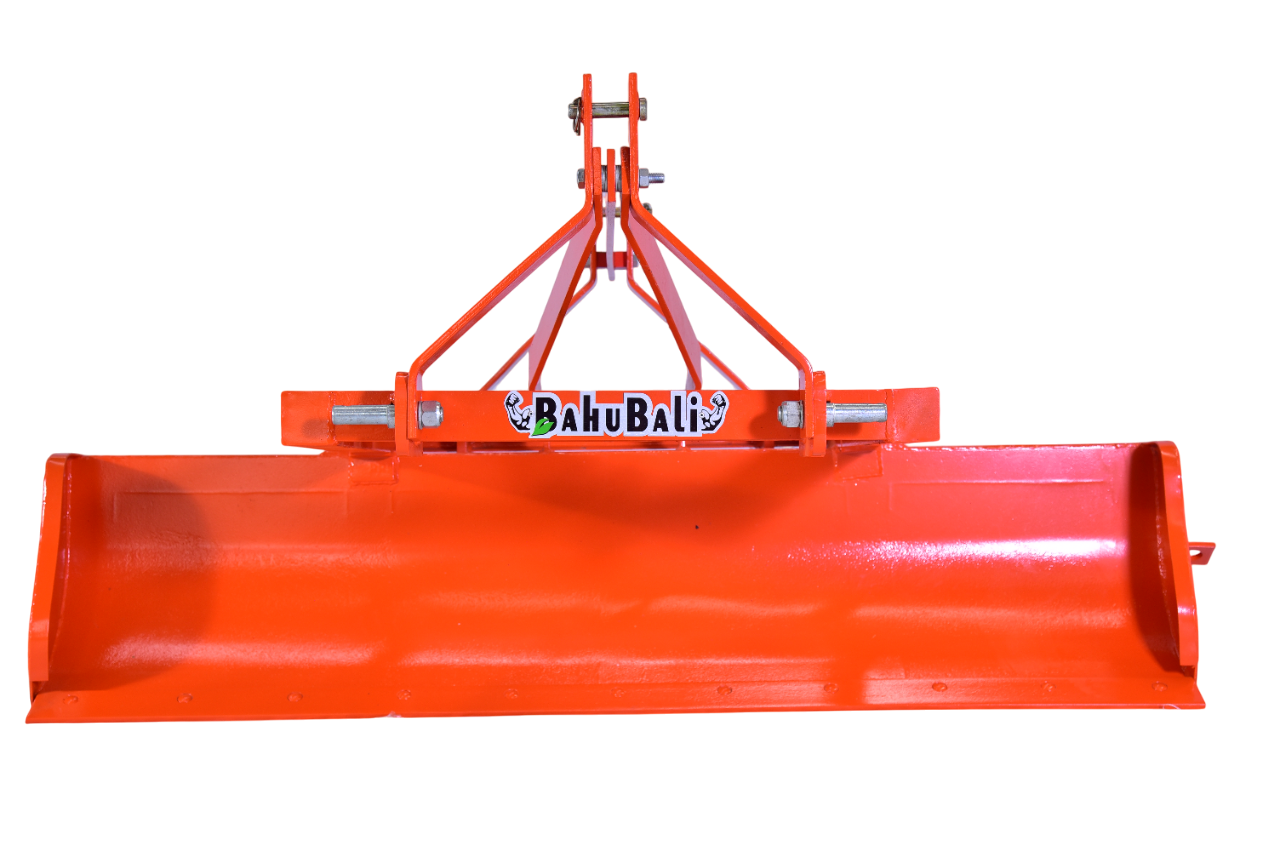

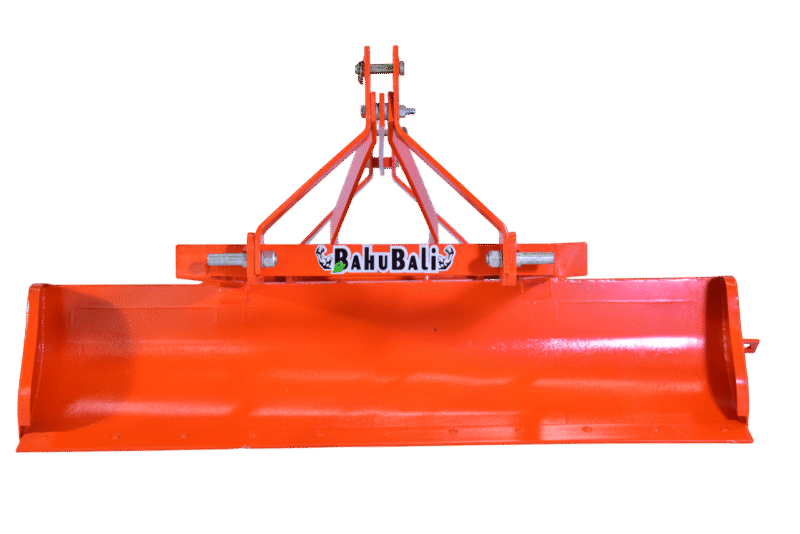

Two Way Land Leveller
- Soil retaining wings can be optionally fitted on both ends of the blade for carrying the soil without spillage.
- “Reversible Land Leveller” is ideal for levelling, filling, back fillings, farm yard clearing etc.
- Improved crop establishment by uniform spreading of water and fertilizer improves uniformity of crop maturity.
- Reduces weed problems and time of complete task of irrigation.
- Provision for usage in front as well as reverse direction ensures satisfactory front and back filling and leveling of the land.
- Sharp edged hardened blades cuts weeds, clods, thrashes and uneven lands easily performing above expectations.
Description
Specification
| Model | 6FTLL | 65FTLL | 7FTLL | 8FTLL |
| Feet’s | 6 Feet | 6.5 Feet | 7 Feet | 8 Feet |
| Working Width, mm | 1800 | 1990 | 2100 | 2400 |
| Cutting Blade Thickness mm | 10 | 10 | 10 | 10 |
| Main Frame(mm) | 125 X 65 | 125 X 65 | 125 X 65 | 125 X 65 |
| Blade Dim (mm) | 75 X 10 | 75 X 10 | 75 X 10 | 75 X 10 |
| Over All: Width X length X Height (mm) | 1300 X 1830 X 1050 | 1300 X 1980 X 1050 | 1300 X 2135 X 1050 | 1300 X 2440 X 1050 |
| Mounting | 3 point linkage (Cat II) | 3 point linkage (Cat II) | 3 point linkage (Cat II) | 3 point linkage (Cat II) |
| Weight Kgs | 190 | 205 | 224 | 256 |
| Levelling direction | Two Way | Two Way | Two Way | Two Way |
| Linkage Pin | 28 mm | 28 mm | 28 mm | 28 mm |
| Suitable HP Range | 35 – 45 | 35 – 45 | 50 – 60 | 60 – 70 |
