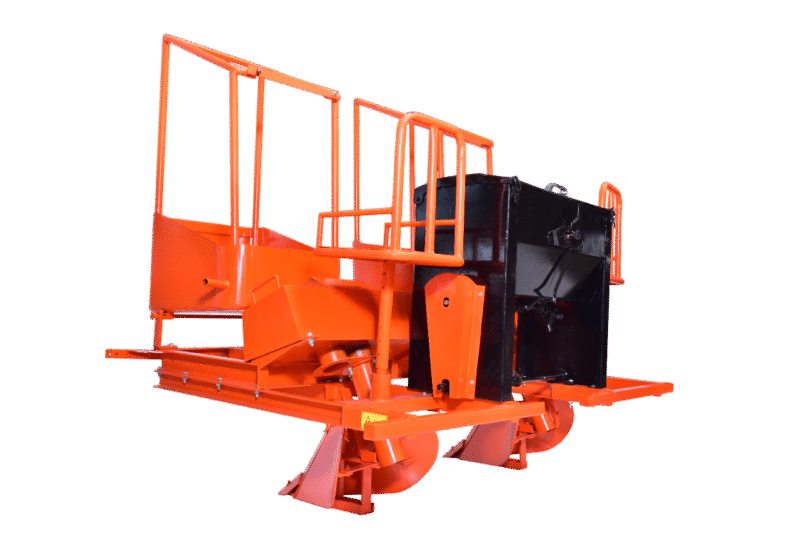

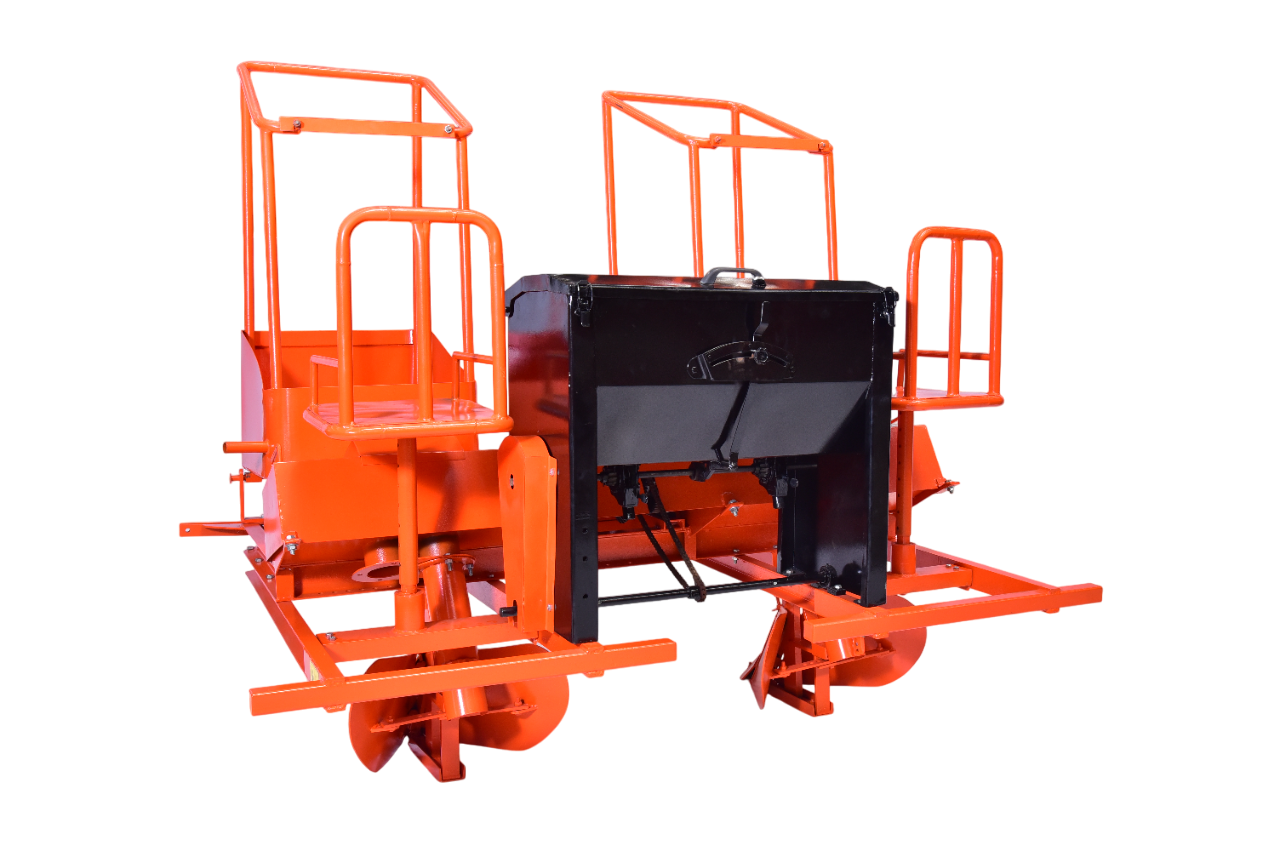

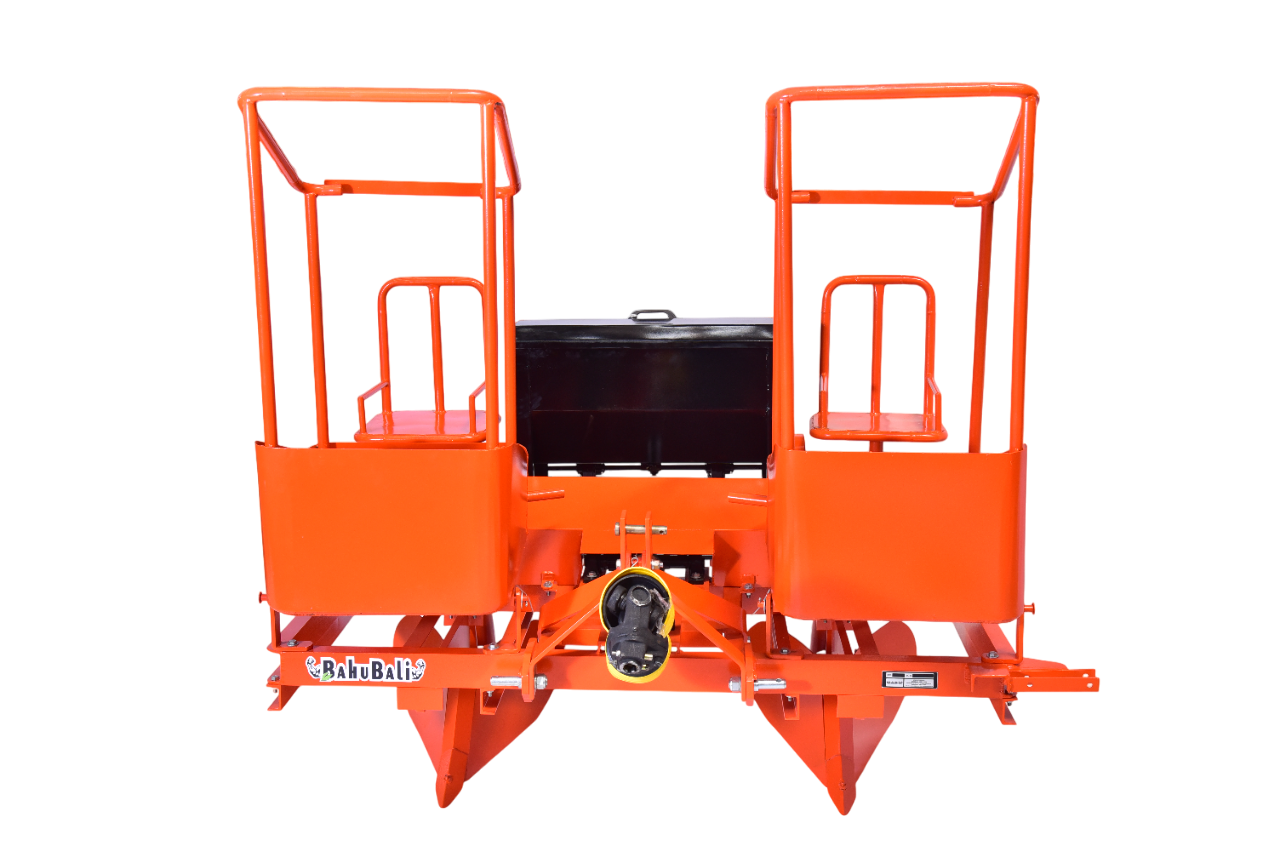

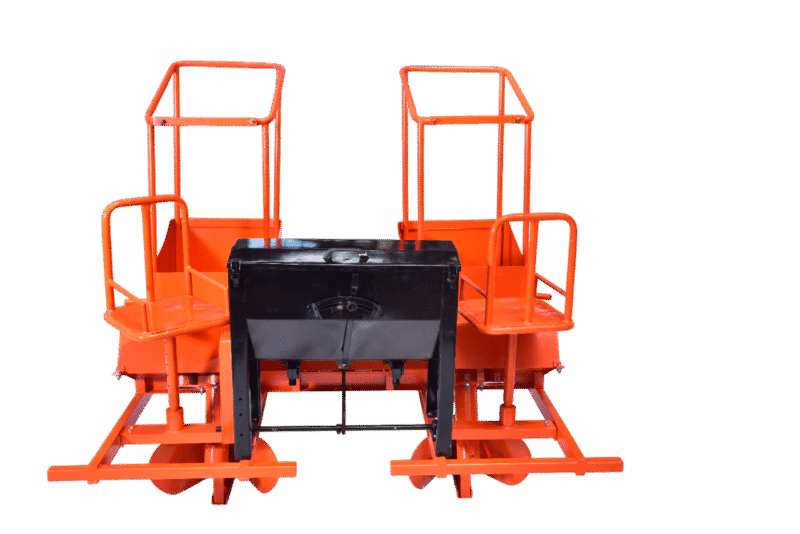

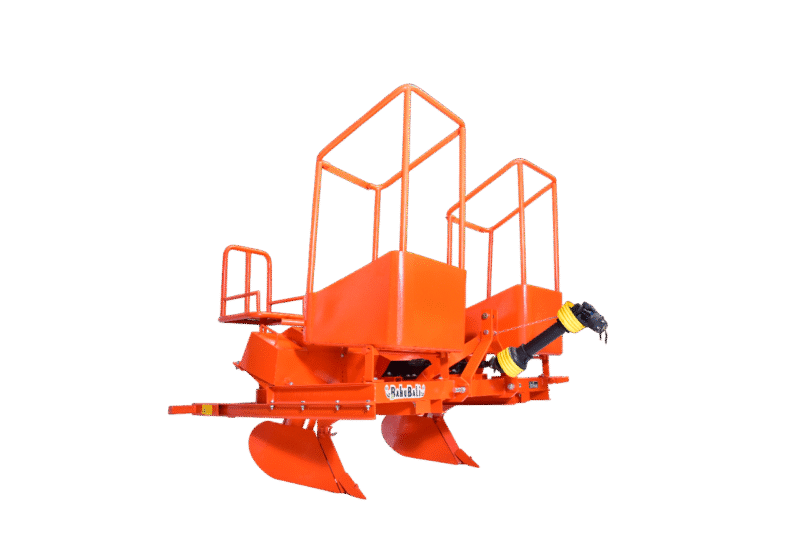

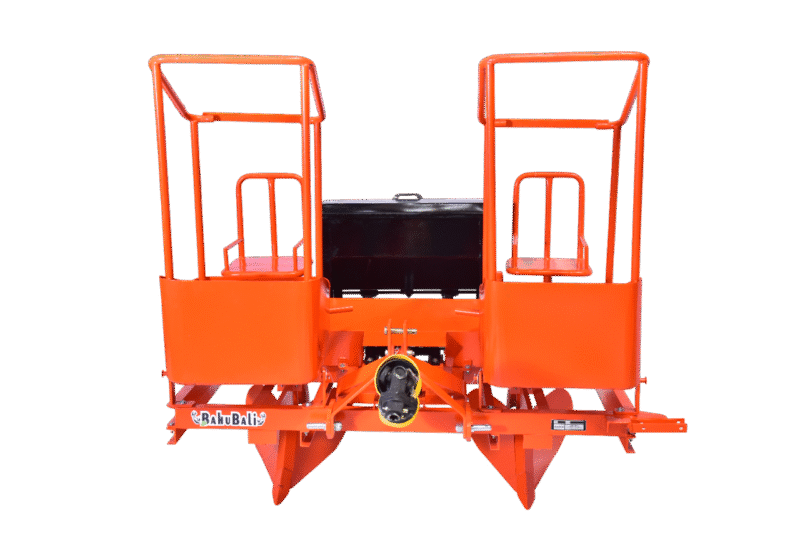

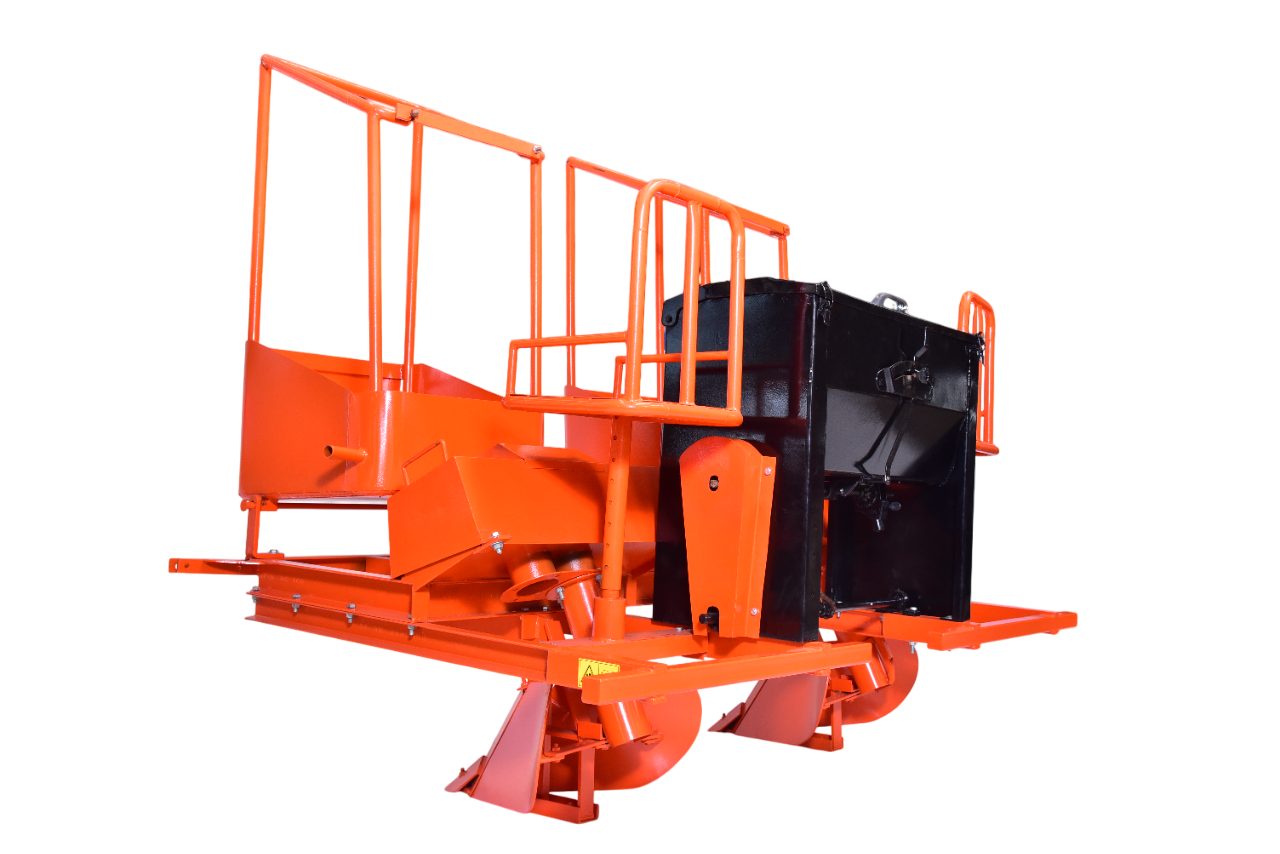

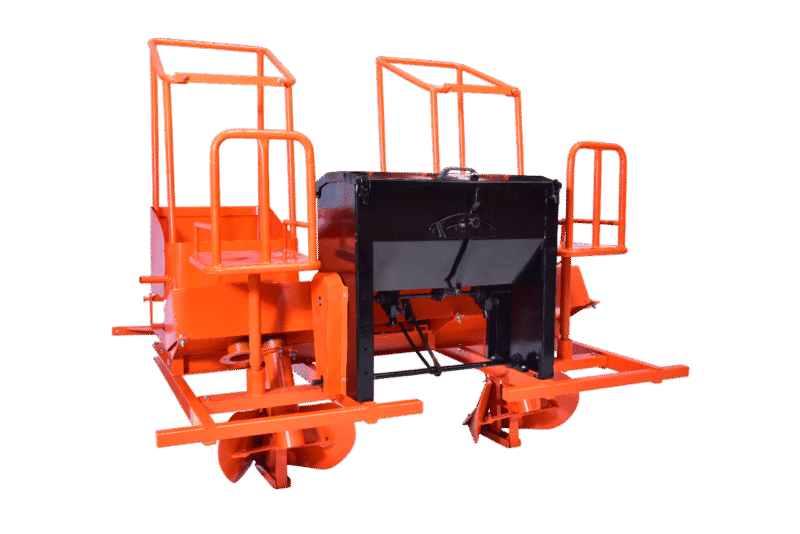

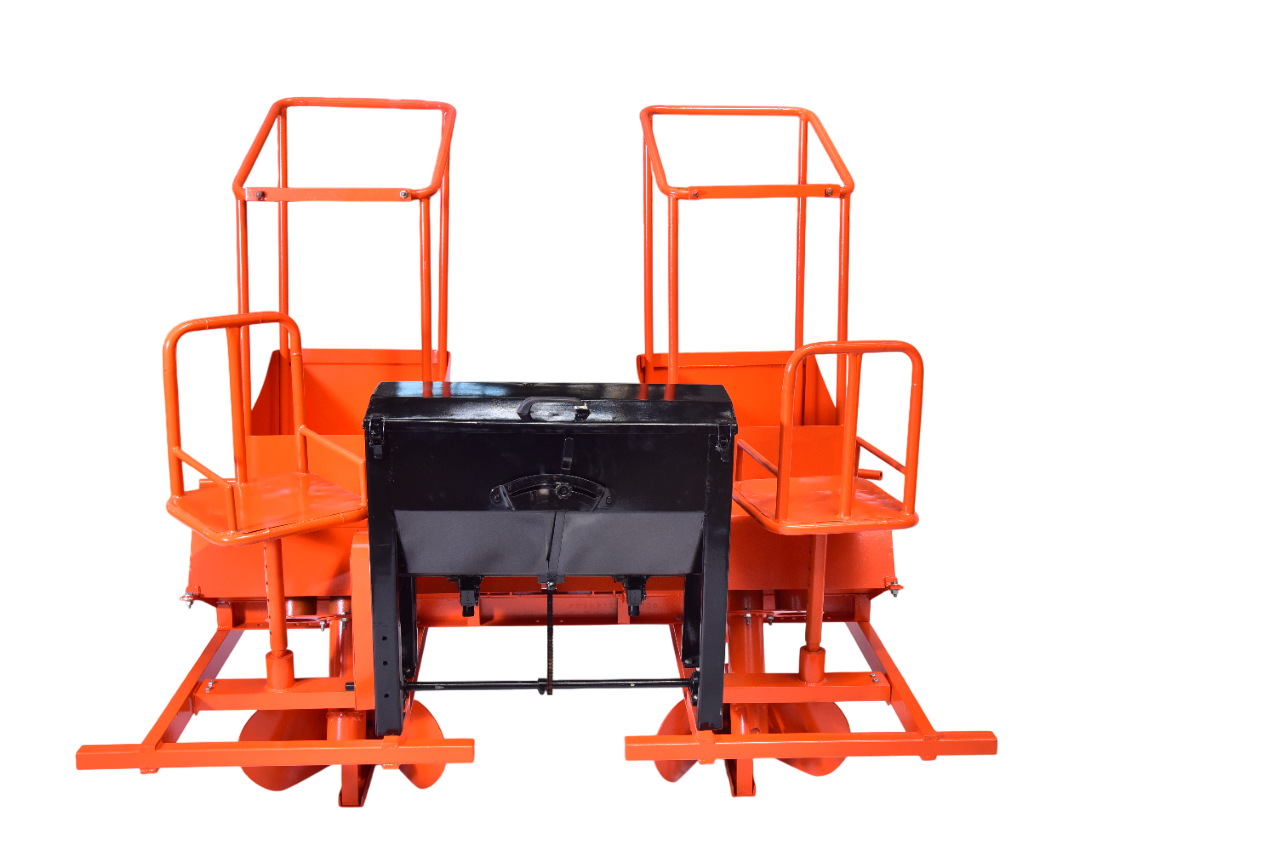

Sugarcane Planter
- “Sugarcane Planter” covers six operations at a time.
- It consist of sugarcane cutting block and fertilizer box.
- The gear box operates the PTO shaft according to the tractor speed.
- There is sitting arrangement with two chair for sugarcane placing.
- The given ridger is useful for making deep farrow openings.
- This Ridger prior to planting / sowing operations.
- It having arrangement for changing the size of row.
Description
Specification
| Model Number | SCP45F |
| Number of Tynes | 2 |
| Mounting CAT | Cat II |
| Main Frame | 100 X 50 channel |
| Farrow Bases thickness (in mm) | 25 |
| Number Of Clamp | 2 |
| Working Width Range (Approx. ) | 4,4.5,5 Feet |
| Maximum Depth (mm) | 150-250(Depends on soil moisture and field conditions) |
| Suitable HP Range | 45 to 55 |
| Fertilizers capacity (Kgs) | 50 Kgs |
| Total Weight (Approx.) Kgs | 700 |
