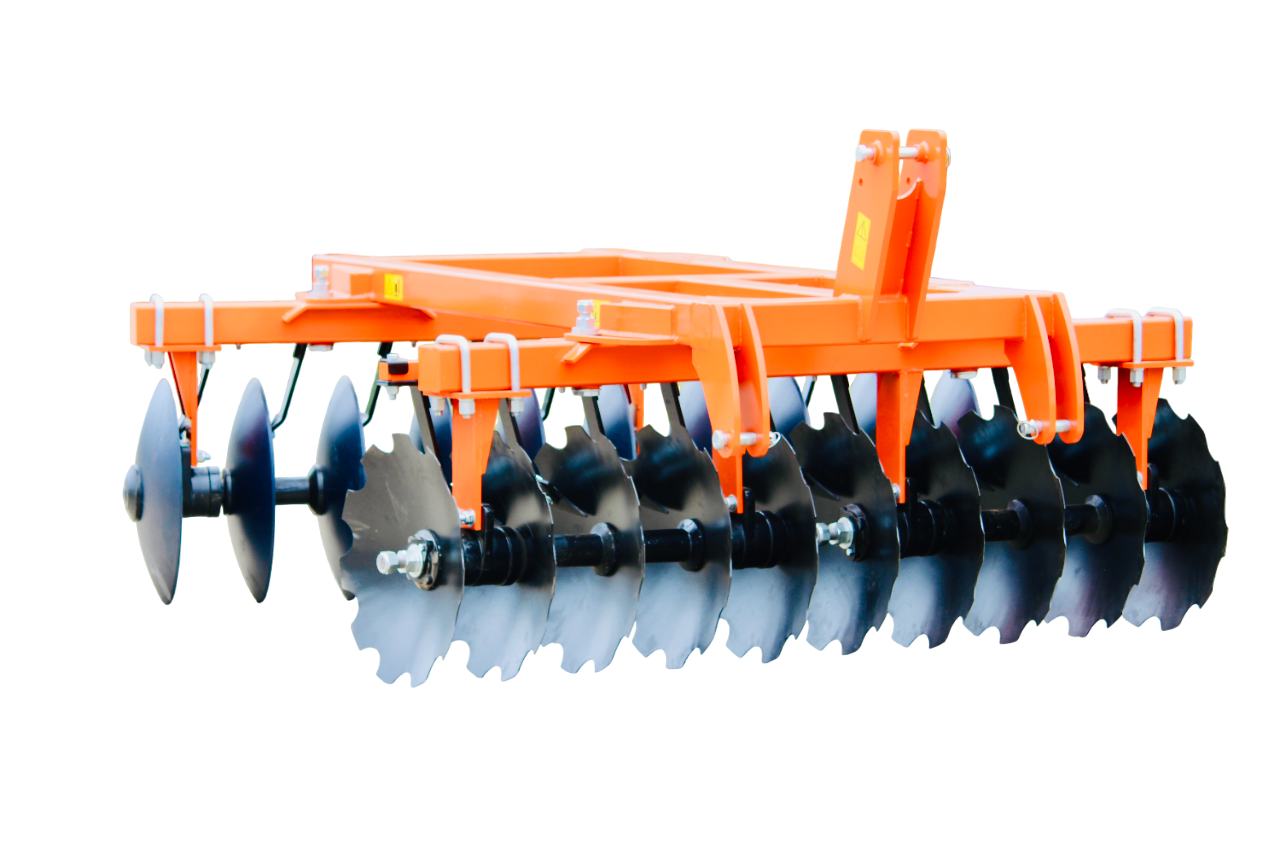

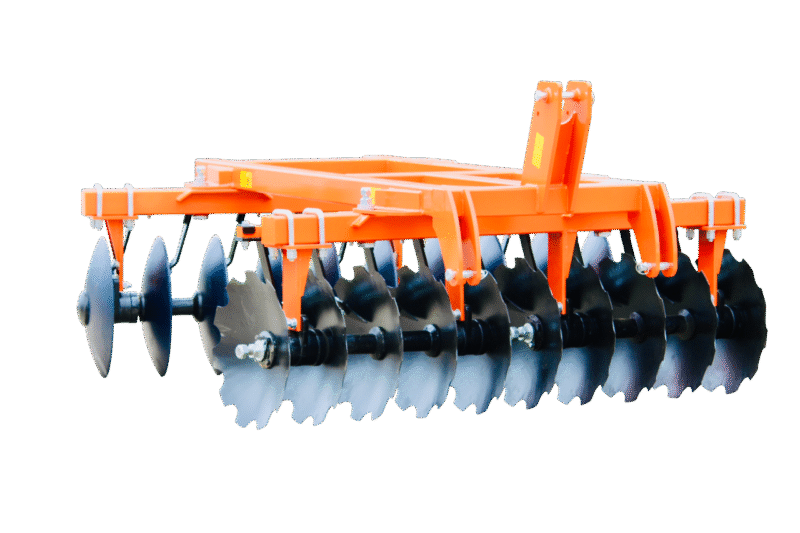

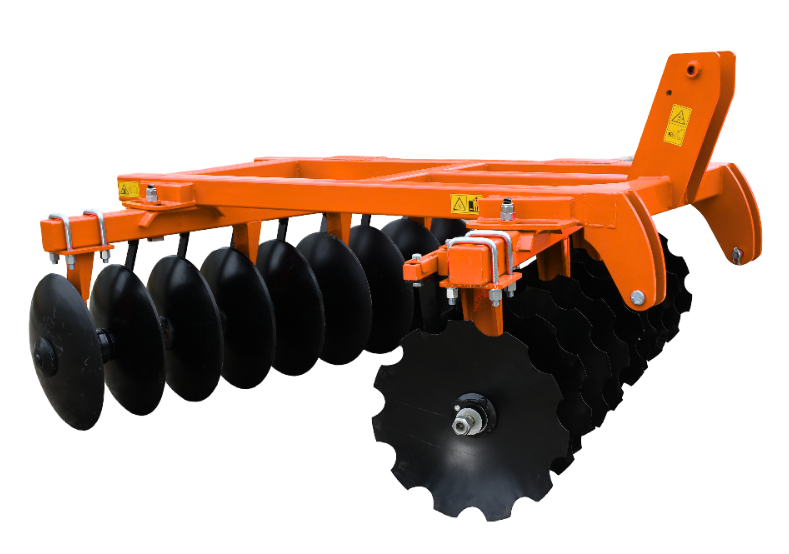

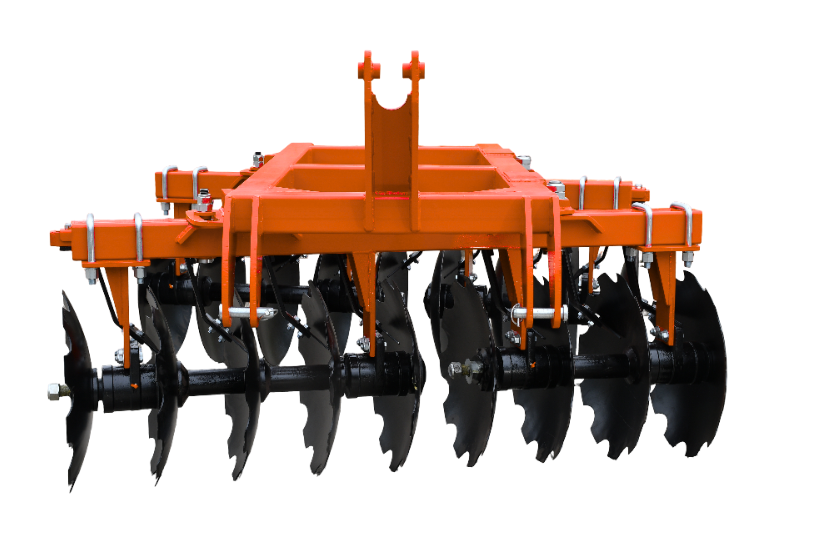

Square Pipe Frame Disc Harrow
- Offset Disc Harrow is tractor hydraulic operated implement which trails behind the tractor and effectively breaks up clods with deeper penetration due to its heavy weight and design. Both Disc gangs are offset at an angle to ensure no soil remains uncut and heavy crop residue with organic matter is effectively buried.
- In addition the implement being easily attached and transportable in top speeds, little time is lost between the shed and the field.
- Due to high quality built up and strong design and maintenance is low.
- High Quality Boron steel Discs.
- Tillage depth of the harrow is 6 inch and can be adjusted with help of angle adjustment.
- High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
Description
Specification
| Model Number | 16DHCF | 18DHCF | 20DHCF | 22DHCF | 24DHCF | ||
| Number Of Disc | 16 | 18 | 20 | 22 | 24 | ||
| Type of mounting | Three point Hitch Linkage (CAT II) | ||||||
| Disc Dia (mm) (Optional) | 560(610 & 660) | ||||||
| Disc Type | Front: Notched, Rear: Plain | ||||||
| Frame (mm) | 100 X 100 ( Sq. Pipe Frame) | ||||||
| Disc Spacing (mm) | 225 | ||||||
| Maximum Depth (mm) | 100-150 (Depends on soil moisture and field conditions) | ||||||
| Gang AXEL (mm) | 32 mm | ||||||
| Width of Cut (mm) (Adjustable) | 1680 | 1930 | 2220 | 2450 | 2650 | ||
| Weight (Kg) (560 Disc) | 525 | 560 | 615 | 650 | 710 | ||
| Bearings Hub | 6 | 8 | |||||
| Suitable HP Range | 55 – 60 | 70 – 75 | 60 – 70 | 80 – 90 | 90 – 110 | ||
