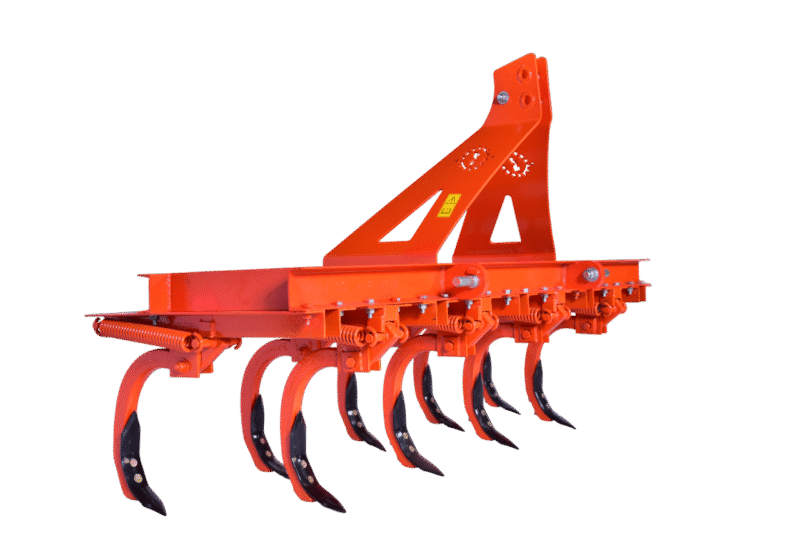

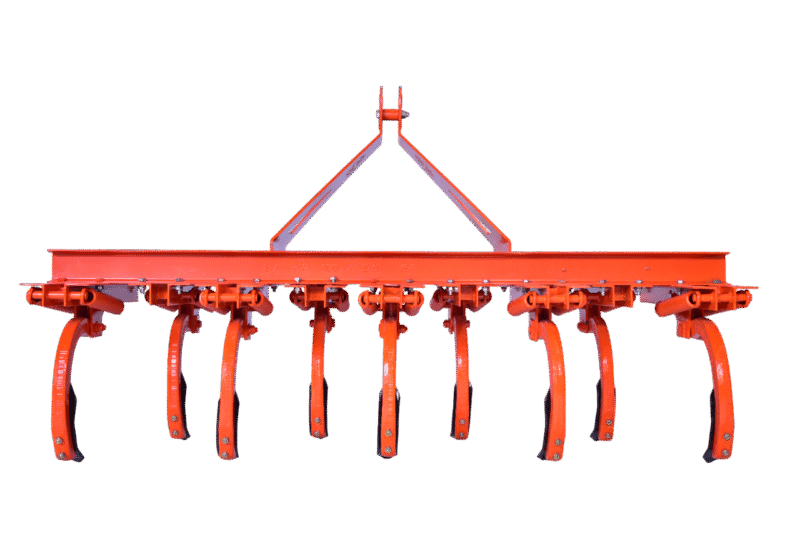

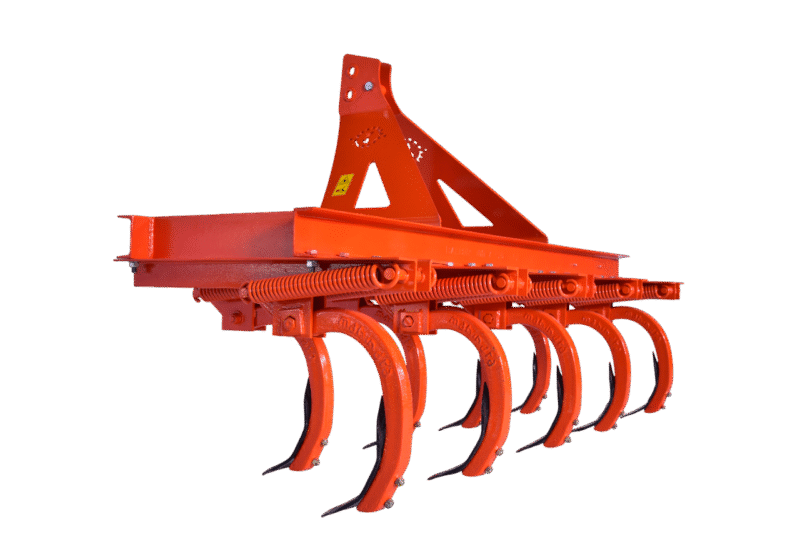

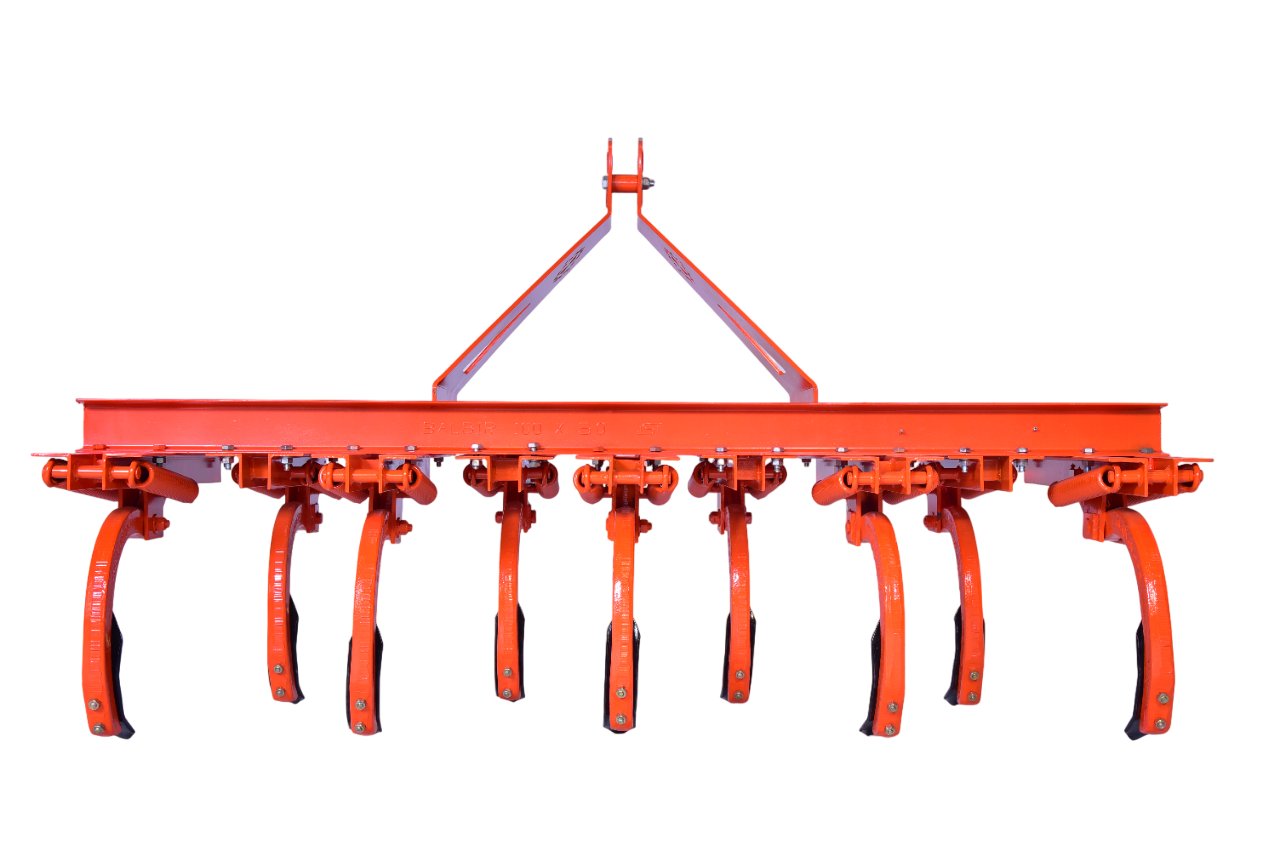

Spring Loaded Tiller

Spring loaded Tyne assemblies derive their strength from heavy duty angles which once fixed to the immensely strong main frame cannot move or strain out of position.
Extra Heavy Duty Type Spring Loaded Tiller” is designed for toughest operations.
It is suitable for hard top soil ,uproot stubbles and leaves.
Provision for spacing adjustments between tynes to be useful for various soil conditions and various crops.
It can give the depth up to 7 to 9 inches in hard soil.
The spring-loaded tynes swing back under break-away pressure of 163Kg: pass over the obstruction and return to the working position without affecting the working depth of the implement.

Category: Cultivators

Description

Model Number	7TST	9TST	11TST	13TST	15TST
Number Of Tyne	7 Tyne	9 Tyne	11 Tyne	13 Tyne	15 Tyne
Mounting CAT	Cat II (75 X 12)
Main Frame mm	75 X 40 Channel, 65 x 65 x 5mm support angles for tynes		100 x 50 mm Channel, 65 x 65 x 6mm support angles for tynes
Size of Tyne (Material)	25mm Thickness.( EN8)
Number Of Coils (Nos)	Spring Coils 50
Over All: LXWXH (Approx. mm)	800 X 1610 X 965	800 x 2020 x 965	800 x 2475 x 965	800 X 2932 X 965	800 x 3390 x 965
Number Of Spring	14	18	22	26	30
Shovel Thickness mm (Material)	8 mm (EN-42)
Working Width Range (Approx. mm)	1400	1856	2312	2768	3224
Spacing Between Tyne	230			228.5	230
Weight (Approx. in Kgs)	225	280	340	393	425
Tractor HP Range Suitability	35-40	40-50	55-70	70-80
