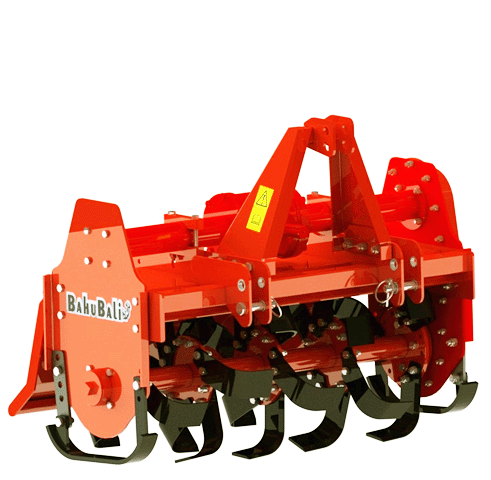

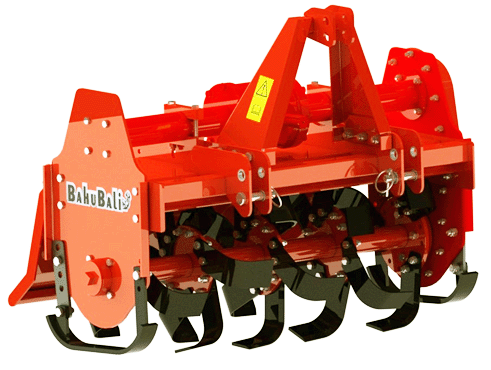

Rotavators
- This rotary tiller is a tractor PTO driven machine used for pudding the soil before rice transplantation, chopping and mixing of green manure, crop residue and stubbles into the soil to make it more fertile. As a secondary tillage implement, it prepares fine to accurate seed-bed in one go for sowing any type of crop.
- The drive to the blades from the gear box is by shaft and rugged gears to give long life and reliability.
- Choice of L-Blades, Spike-Blades.
- Adjustable mounting brackets.
- Single Speed / Multi Speed gear box.
- Spring loaded adjustable trailing board.
- Choice of chain drive or gear drive.
- Rotor speed standard 210 R.P.M. optional 235 R.P.M.
- Automatic spring loaded chain tensioner.
Description
Specification
| Description | 18 | 24 | 30 |
| Gear Box | Single/ Multi speed Gear Box* | ||
| Input RPM /Rotor RPMs : | 540 / 180 to 240 | ||
| CAT Mounting | CAT I | ||
| Type of Blades : | L Type/C Type | ||
| No. of flange : | 4 | 5 | 6 |
| Side Drive : | Gear Type | ||
| Working Depth (depending on soil) | Min : 120 mm – Max : upto 210 mm | ||
| Anti Loosening | Nylock Nuts provided as a standard fitment | ||
| Width | 1 | 1.2 | |
| Weight (Kg) | 178 | 195 | 220 |
| Suitable for HP : | 24 | 24-35 | |
