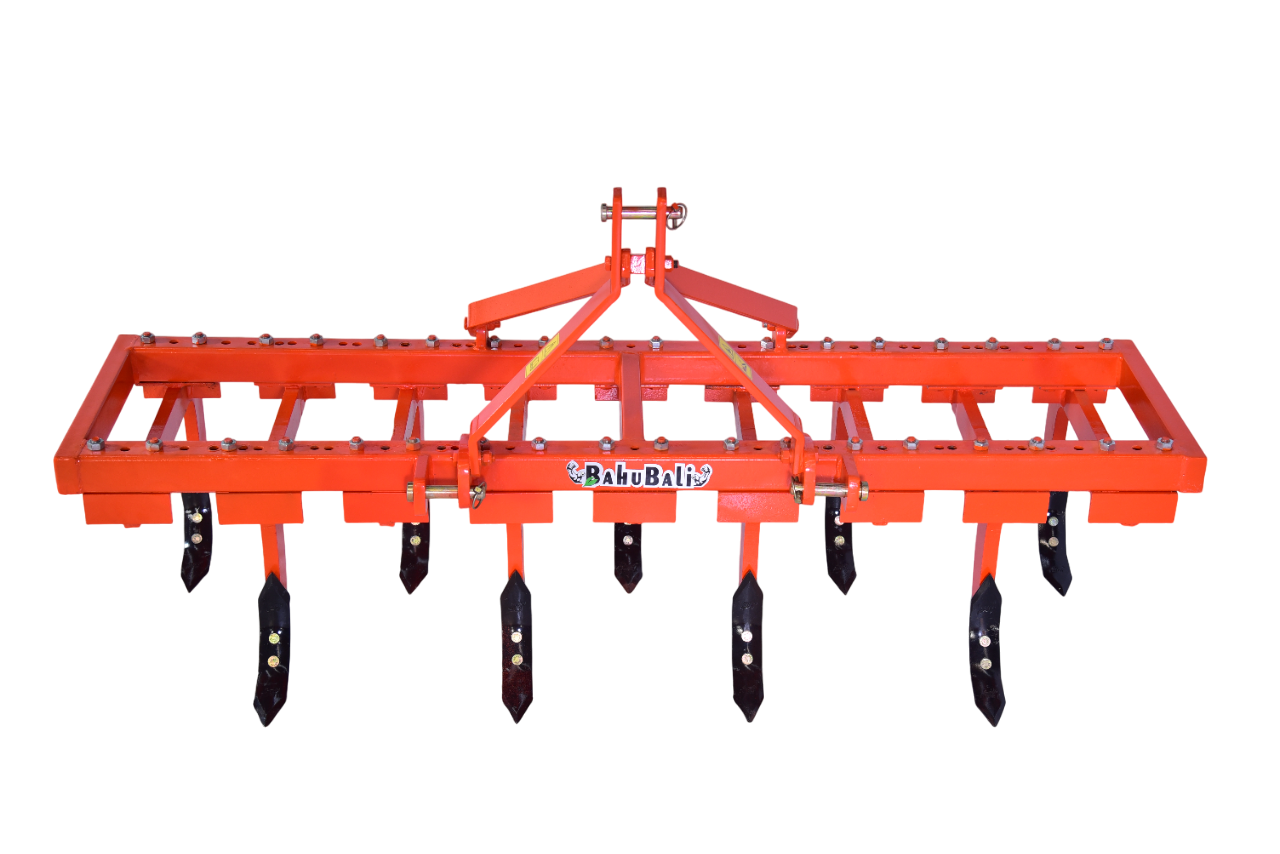

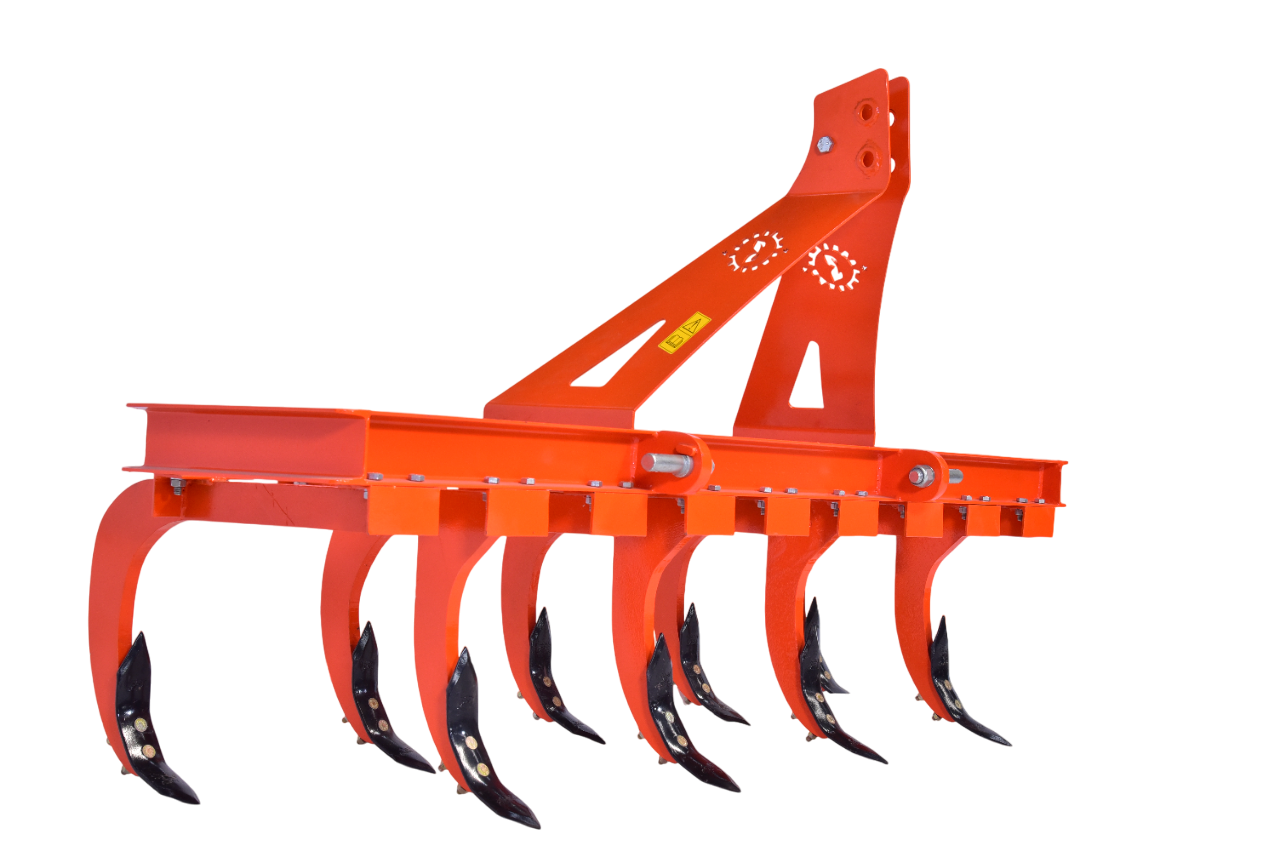

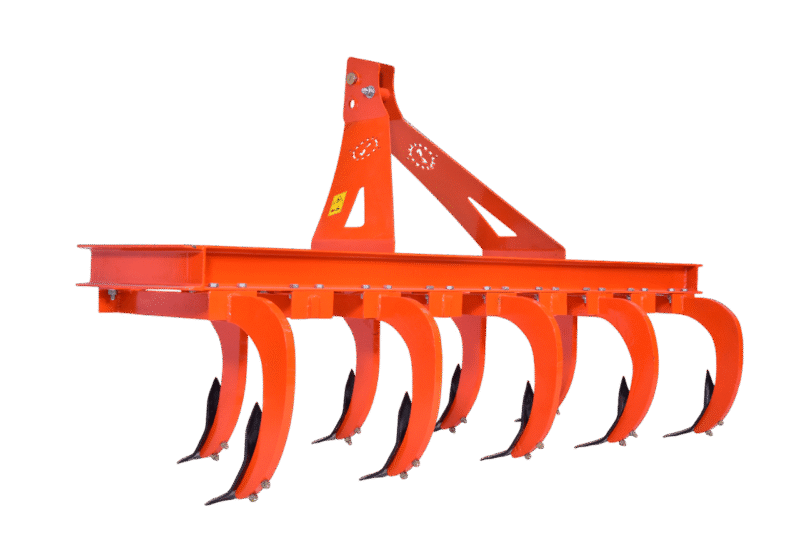

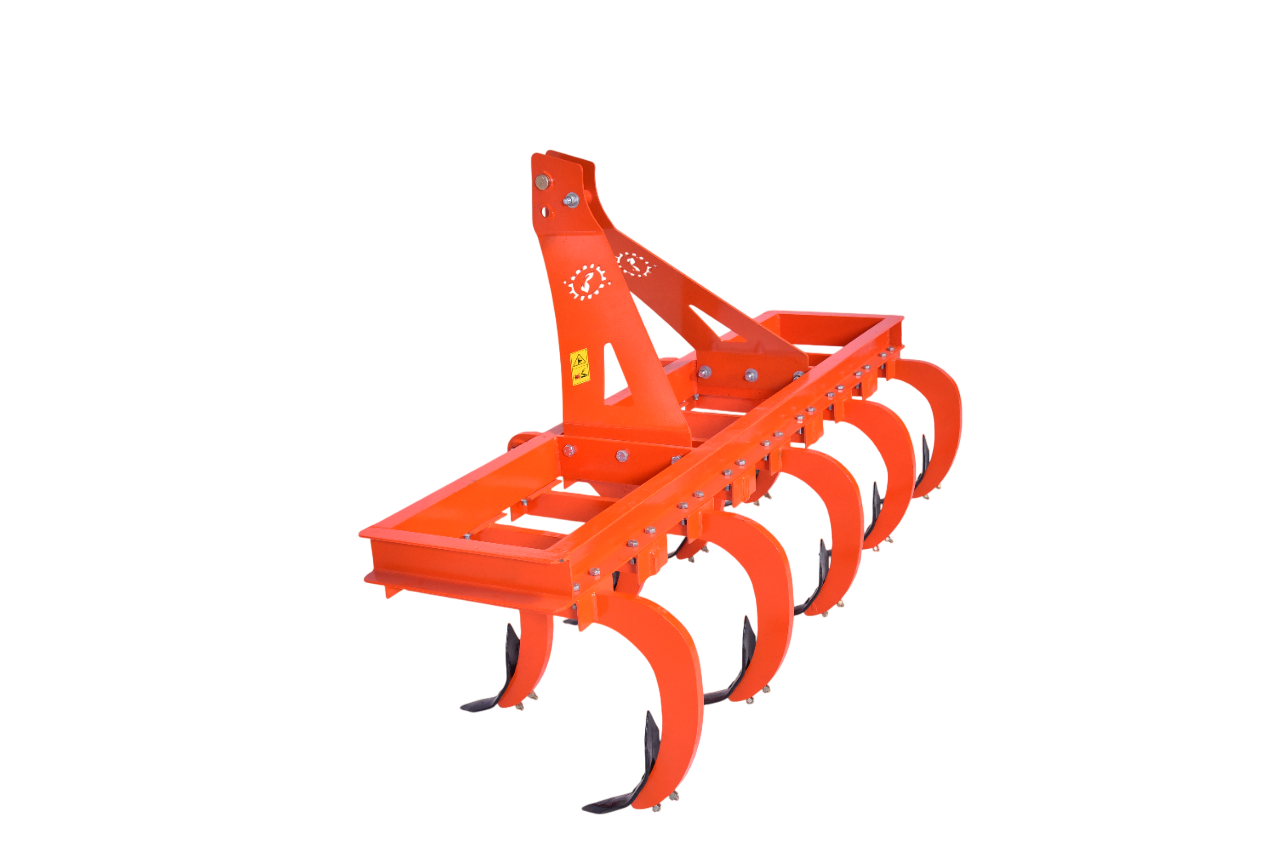

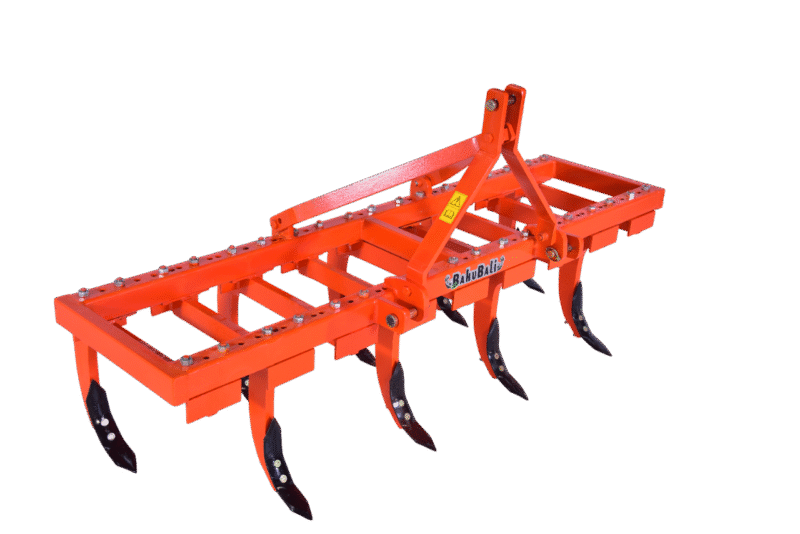

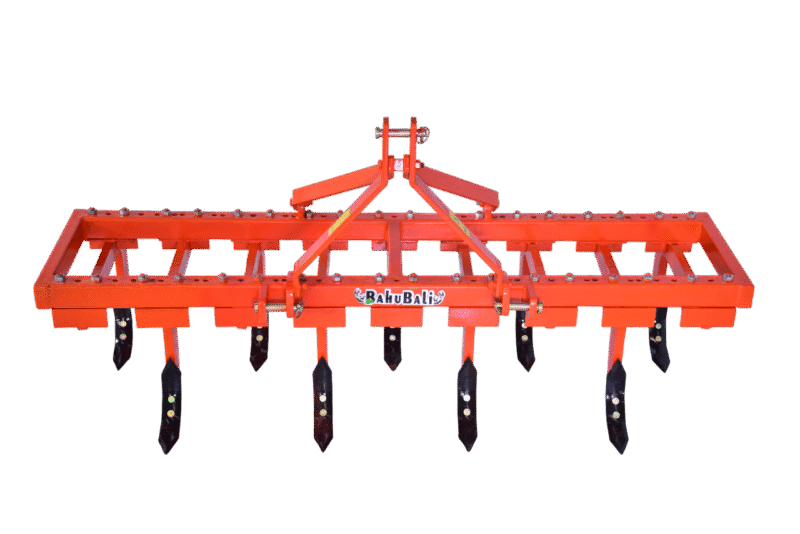

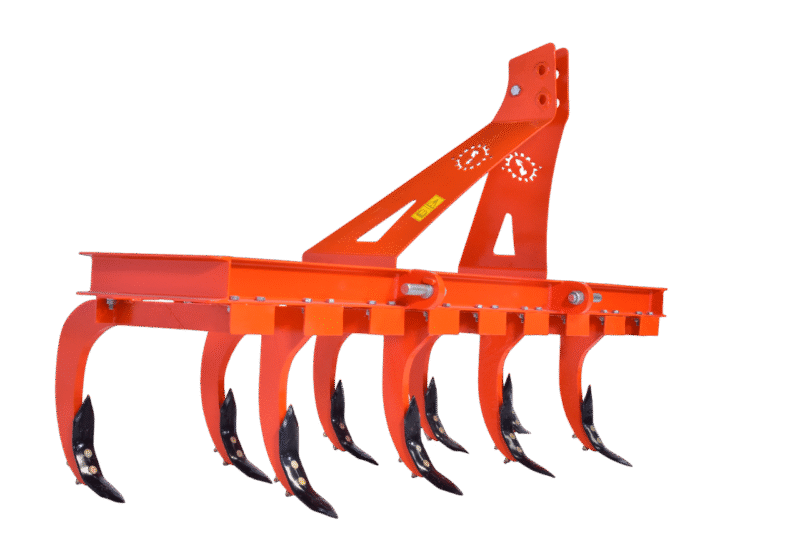

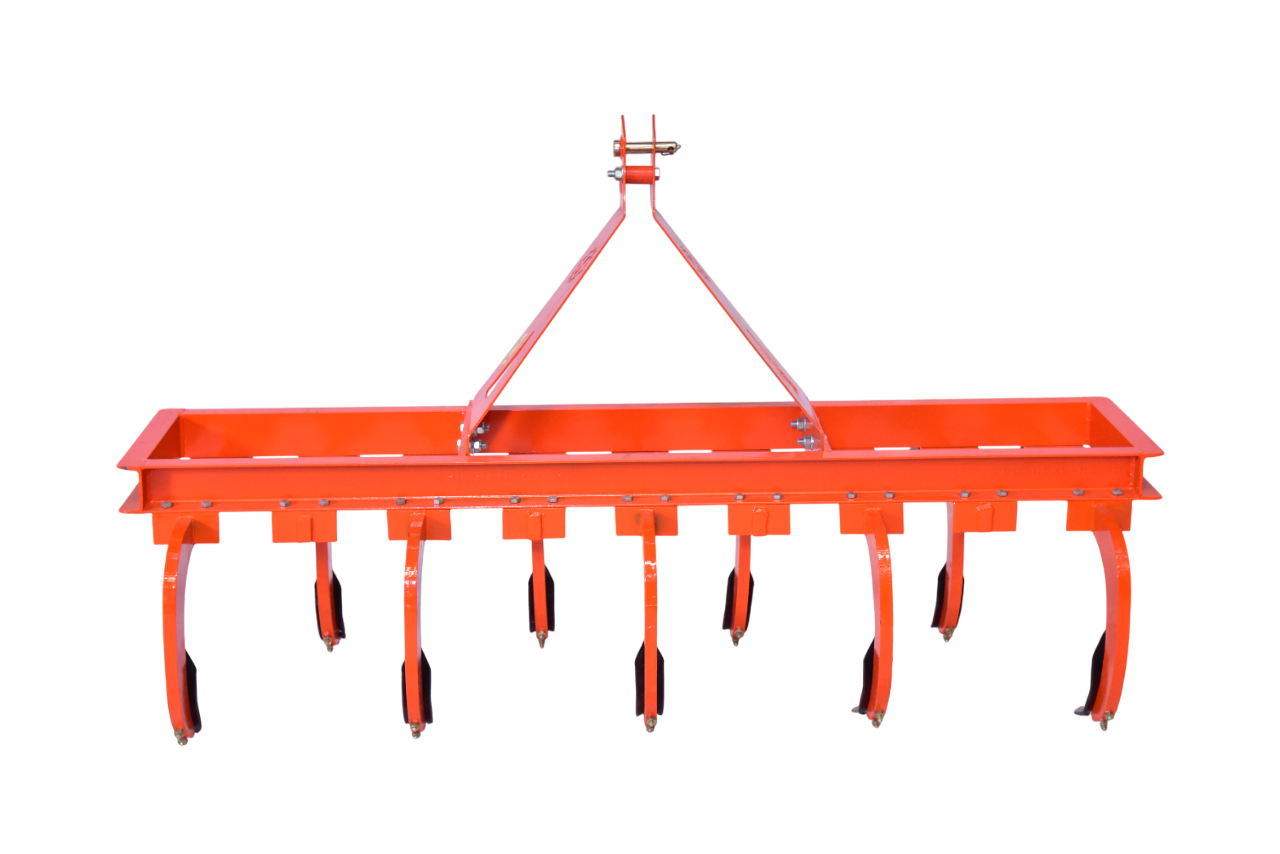

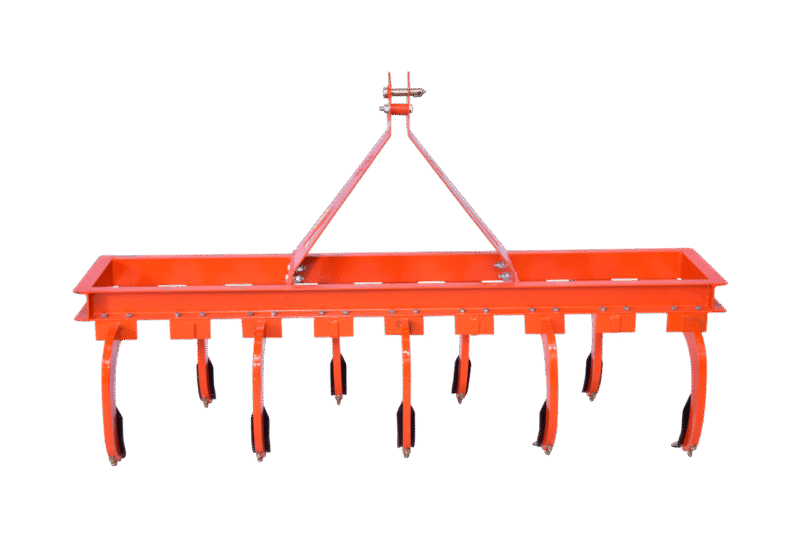

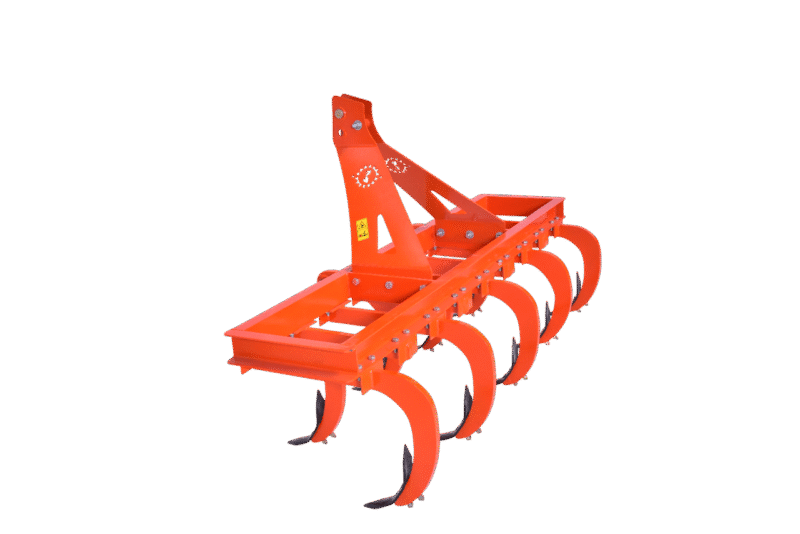

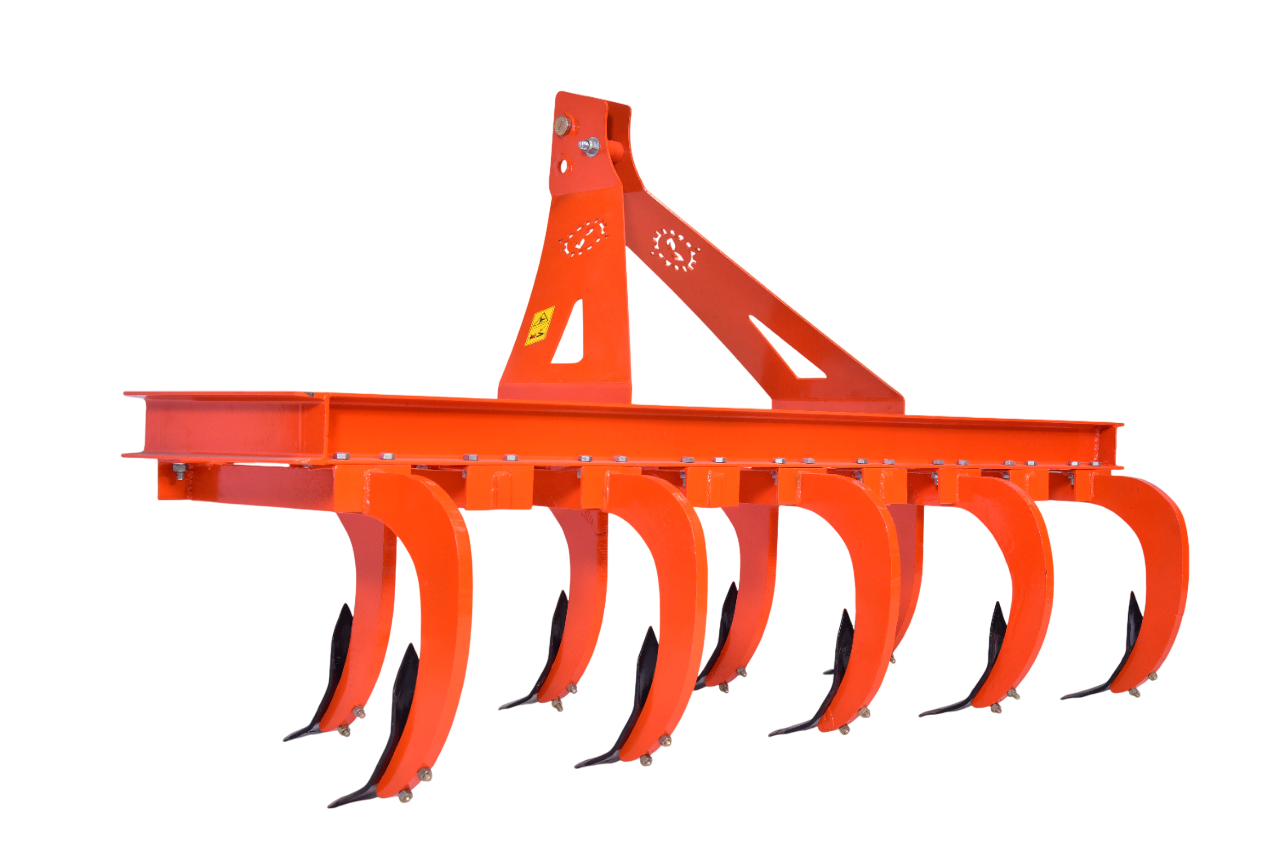

Rigid Type Cultivator

The cultivators loosens and aerates the soil to a depth of 9 inches.
Extra Heavy Duty Rigid Tiller” is designed for toughest operations.
It is suitable for various soil conditions.
It is multipurpose heavy duty tiller.
The tynes used in this tiller have been cut at precise angles which ensure that the tiller penetrates the land effectively with minimum load on the tractor. The tynes used in this tiller have thickness which is matched to the soil conditions of the end-user.

Description

Model Number	5TRT	7TRT	9TRT	11TRT	13TRT	15TRT
Number Of Tyne	5 Tyne	7 Tyne	9 Tyne	11 Tyne	13 Tyne	15 Tyne
Mounting CAT	Cat II
Main Frame (mm)	75 x 40 or 100 x 50 Channel Frame
Size of Tyne (Material)	25 mm Thickness EN8
Tyne Type	Rigid Type
Shovel (Material)	8 mm (EN-42)
Over All: L x W x H (mm)	635 x 1130 x 965	635 X 1610 X 965	790 X 2070 X 965	790 X 2540 X 965	790 X 2995 X 965	790 X 3450 X 965
Width Of Cut (mm Approx.)	950	1400	1950	2312	2768	3224
Spacing Between Tyne	230
Weight (Approx. in Kgs)	115	135	210	252	292	350
Tractor HP Range Suitability	35-40		45-50	50-60	60-70	70-80
