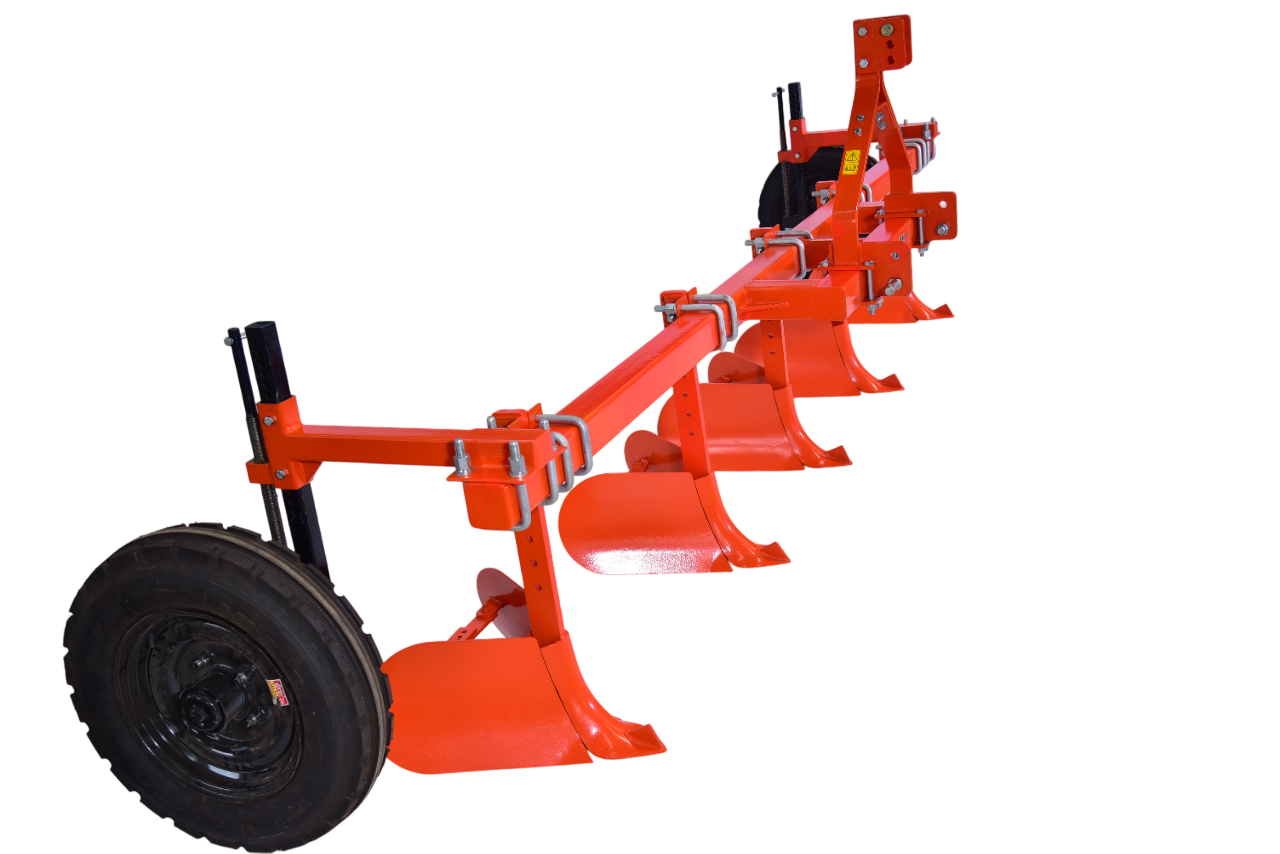

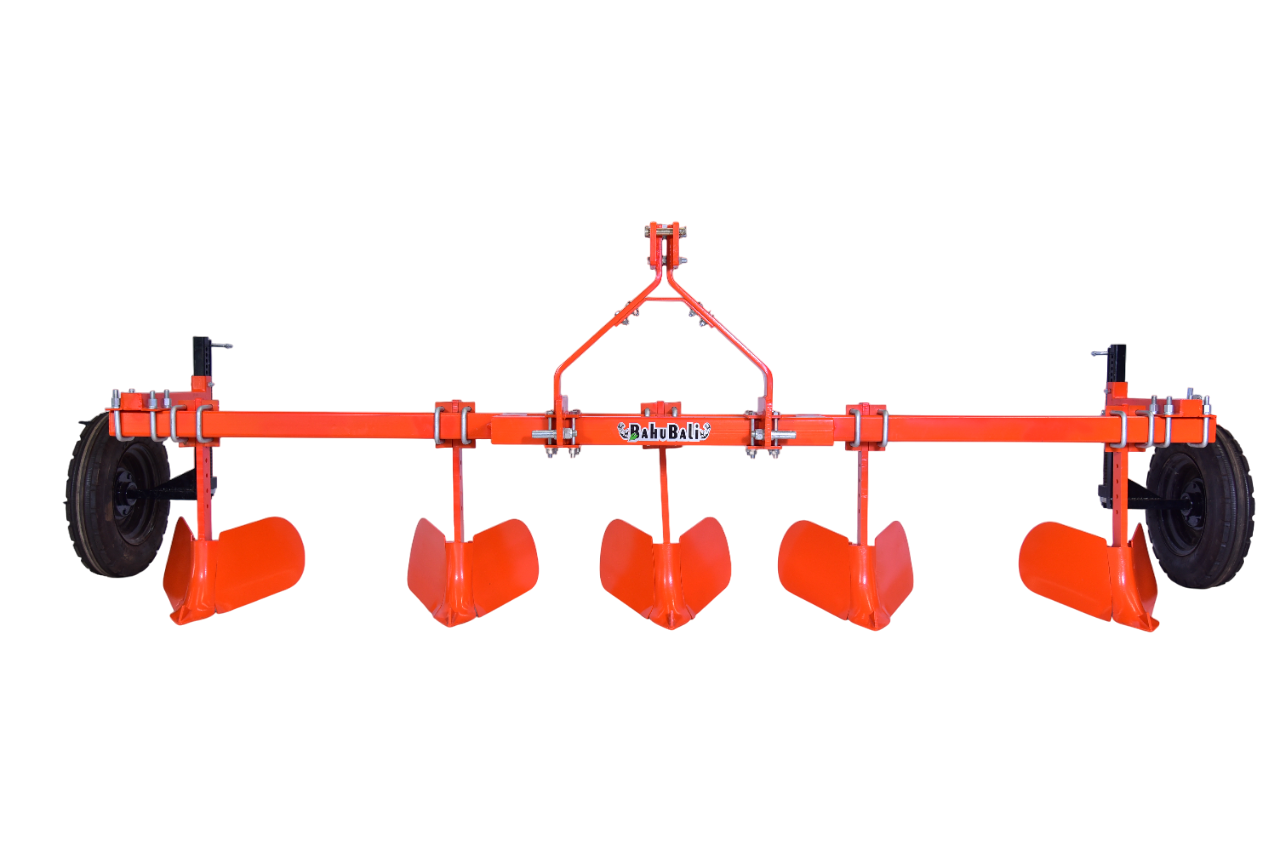

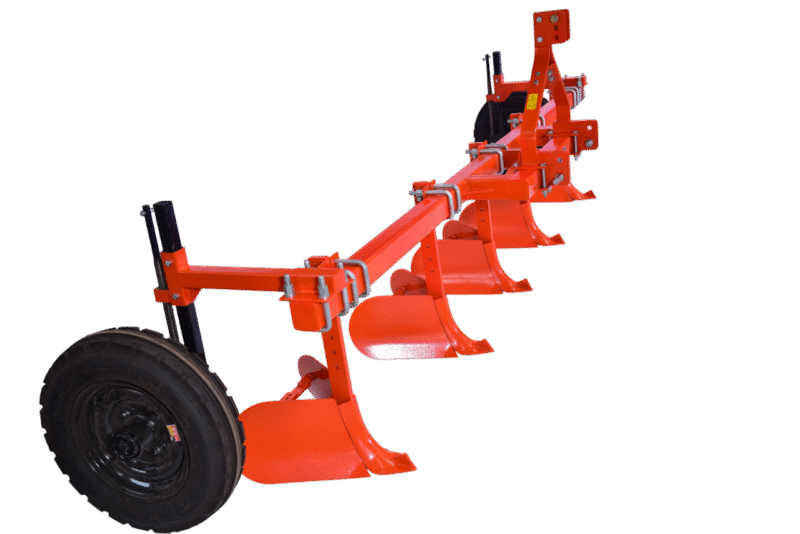

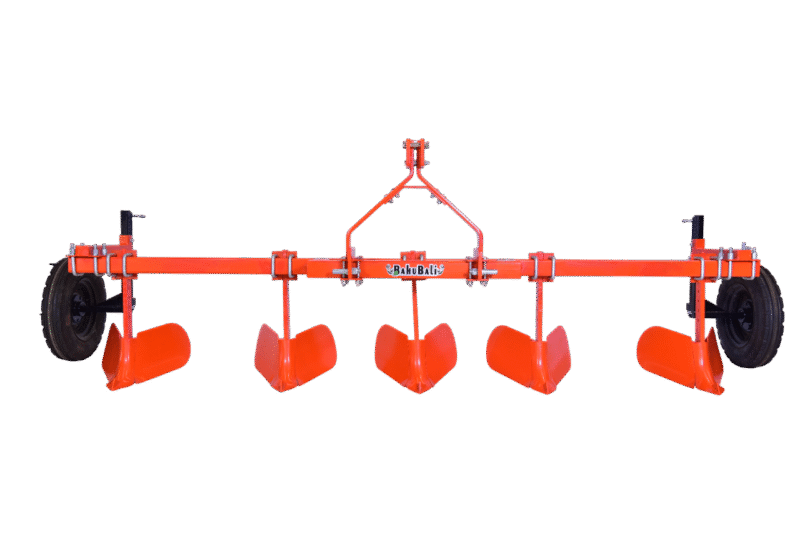

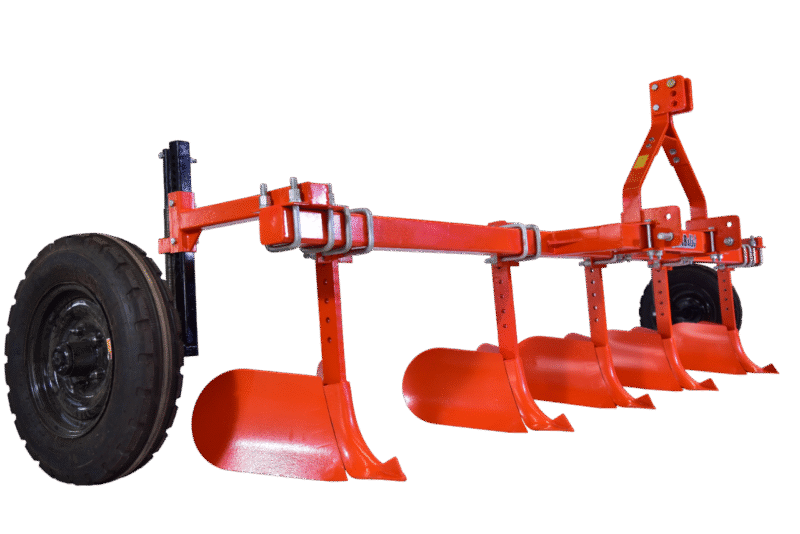

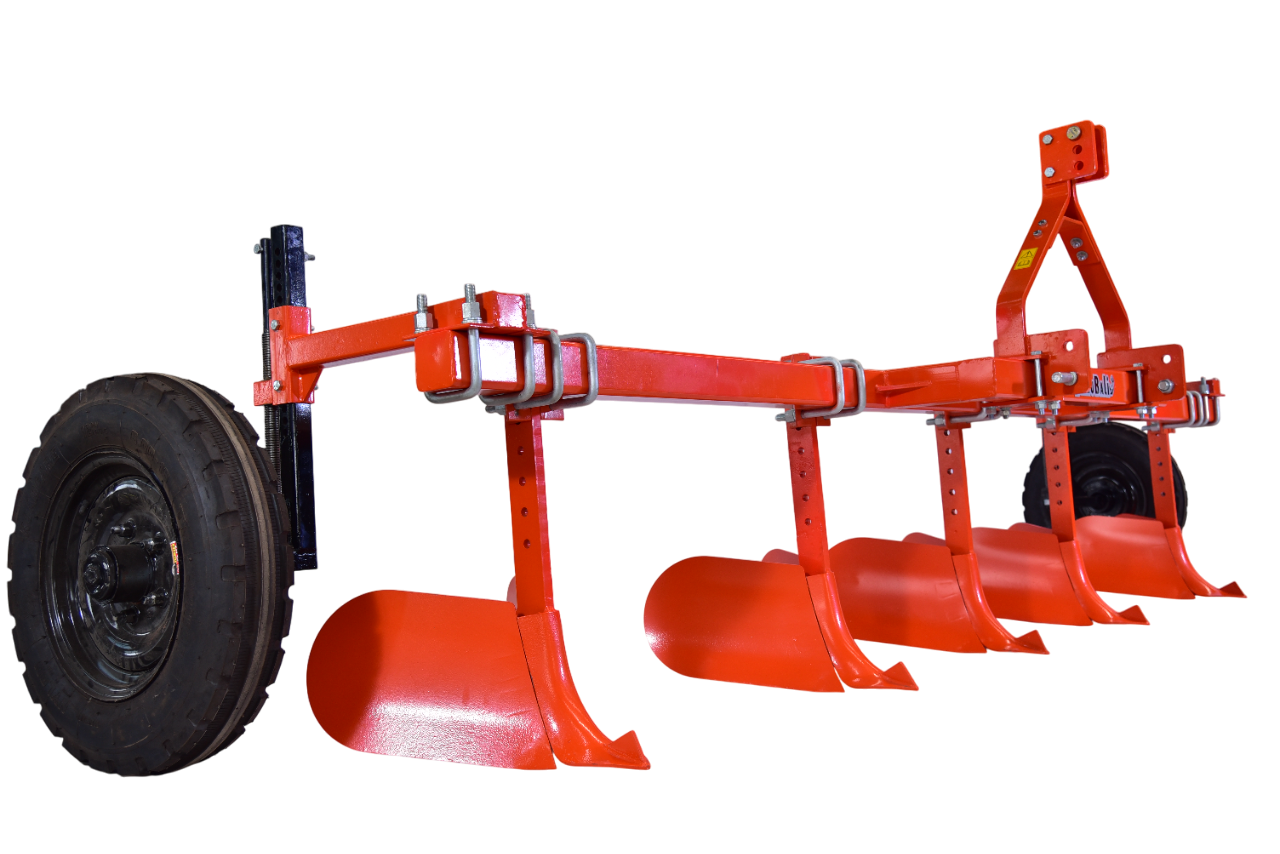

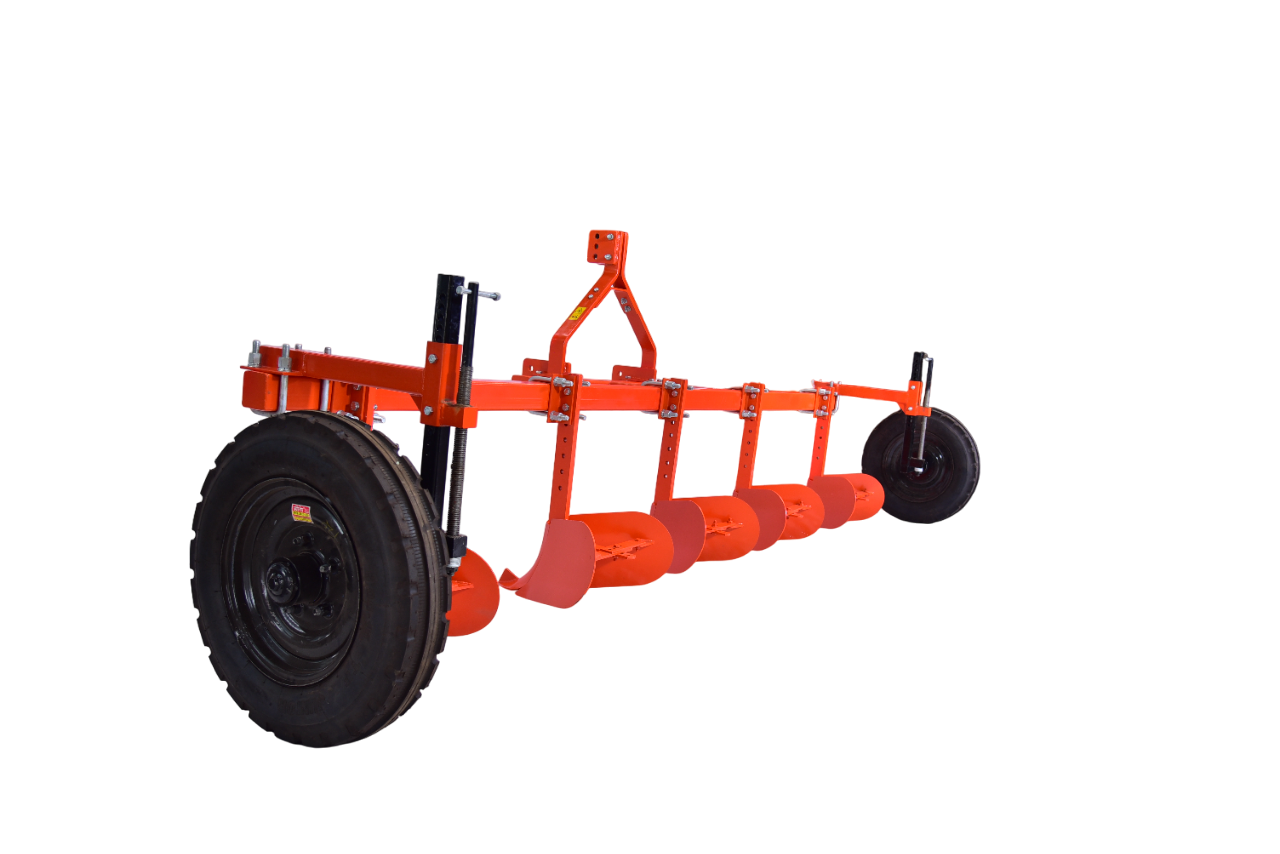

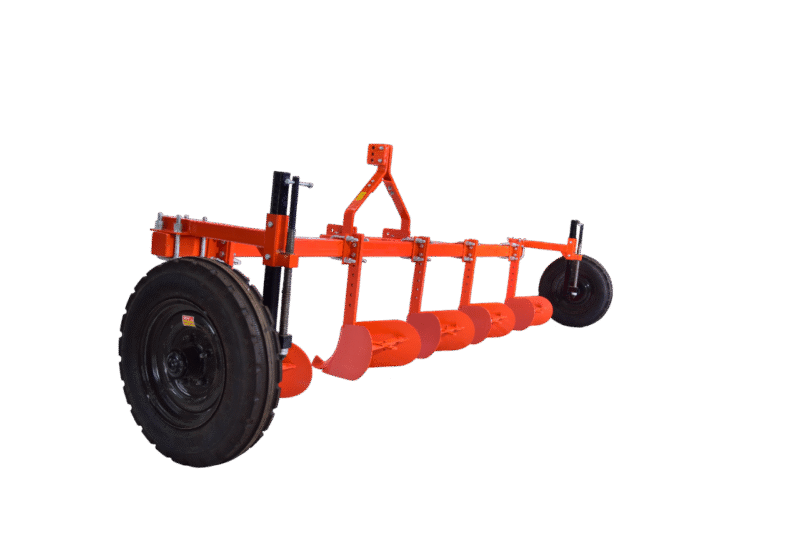

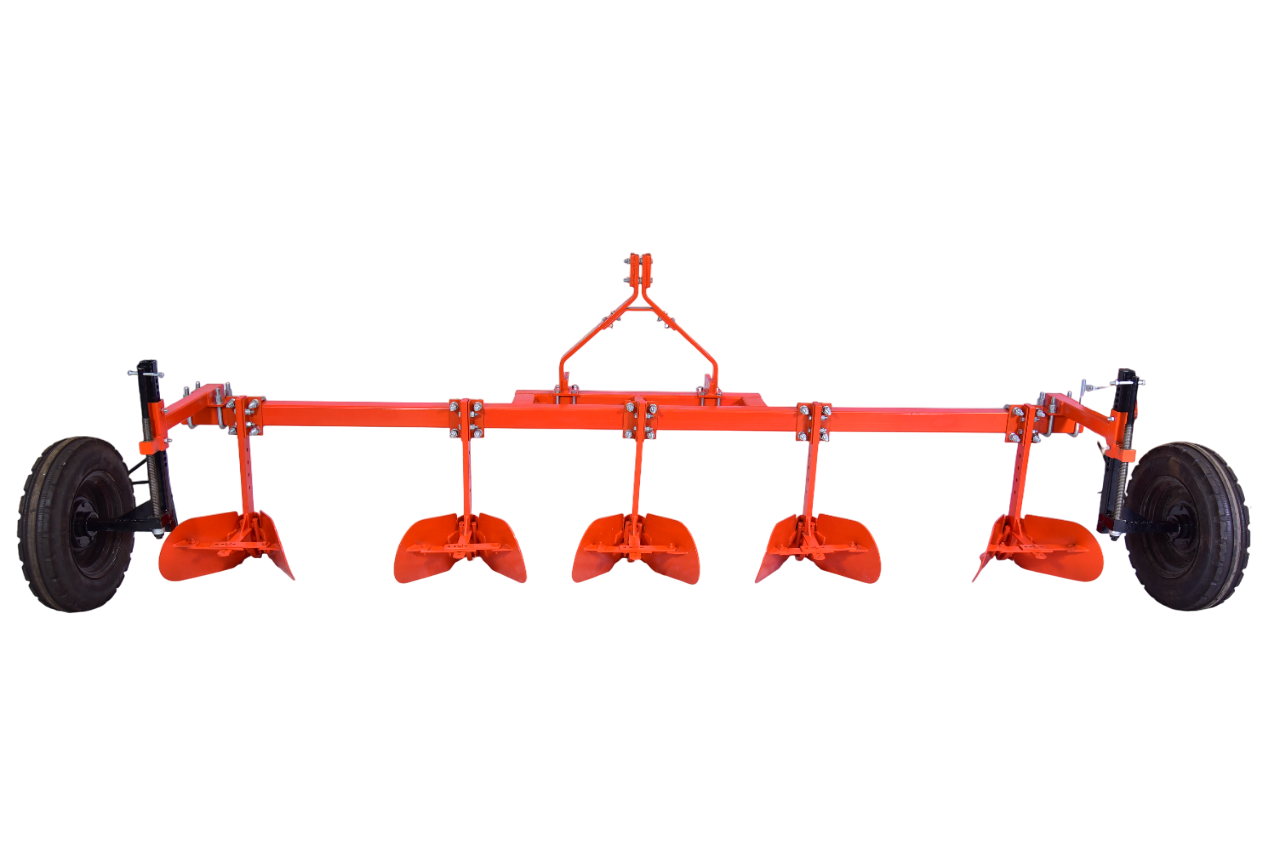

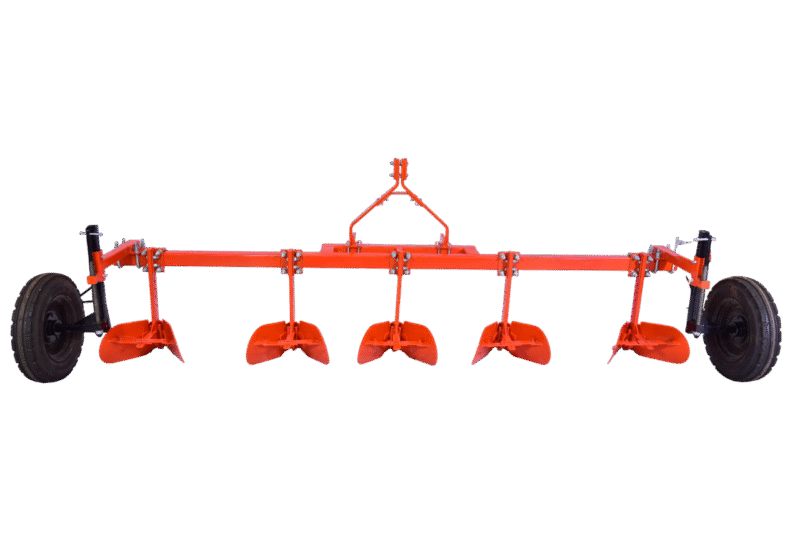

Ridger With Tyre
- It is best suited for medium to light soils. It is used for simple ridge making which makes it useful for planting vegetables & crops and allows water management in the fields. It is a basic implement which makes it very easy to use. It can be easily transported by mounting it directly to the three point linkage of the tractor.
- Its robust pipe frame provides adequate weight & strength to the ridger, allowing it to make bunds / ridges properly.
- The distance between furrows can be adjusted which allows the farmer to vary the height width of the ridge/bund.
- The ergonomically designed shovels used in this tiller have a unique composition which ensures high durability & efficient working.
- The working depth of the ridge/bund can be controlled using the tyres provided with the Ridger
Description
Specification
| Description | 3FRT | 4FRT | 5FRT |
| Number Of Furrow | 3 Furrow | 4 Furrow | 5 Furrow |
| Mounting CAT | Cat II | ||
| Main Frame | 100 X 100 | ||
| Farrow | 5 mm thick | ||
| Type Of Farrow | M.S | ||
| Working Width Range (mm Approx.) | Adjustable | ||
| Spacing Between | Adjustable | ||
| Working Depth Range (mm Approx.) | 210 to 250 (Adjustable) | 210 to 250 | 210 to 250 |
| Weight (Approx. in Kgs) | 350 | 405 | 490 |
| Suitable HP Range | 45-55 | 50-70 | 70-90 |
