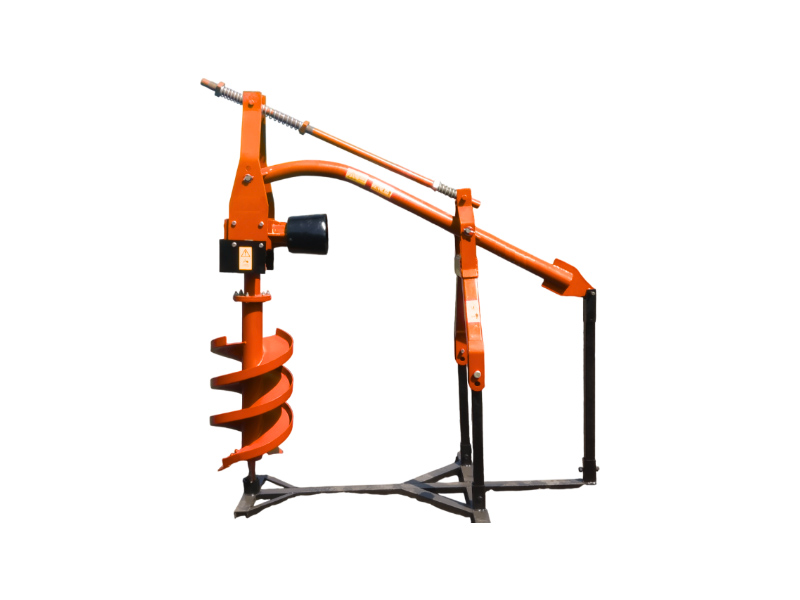

Post Hole Digger
- Post Hole Digger is a PTO driven machine that digs holes in rows on equal distances mechanically and economically. It is best suited for tree plantation. It can Also be used for making for electric poles and farm hedges.
- It is a PTO driven implement it is fastest method to dig hole in farm land.
- Removed soil will be placed around the pit which becomes easy to fill the pit back after plantation or erection work done.
- It has robust structure to ensure and excellent performance to the Customer.
- We replace auger with same frame as per 6,9,12,18,24,36 inches hole diameter required with depth of 2 to 4 feet.
- Its heavy-duty gearbox encapsulates a best-in-class crown-pinion which provides a high output RPM to the auger blade.
Description
Specification
| Model Number | PHD912OC | PHD912 | PHD18 | PHD2436 | |
| Frame | Heavy Duty Rectangular pipe | ||||
| Three Point Linkage | Category-1 | Category-2 | |||
| Gear Box | Compatible with 30 HP max, With ratio 3:1 Ratio | Compatible with 55 Hp max, With ratio 3:1 Ratio | |||
| Out Put Shaft | 2″ (50mm) | ||||
| Input rpm | 540 | ||||
| PTO | Regular | ||||
| Auger length (APPOX) inch | 40″ | ||||
| Auger Size inch | 6″ / 9″ | 9″ / 12″ | 18″ | 24″ | |
| Weight (Approx.) Kg | 115 / 130 | 220 / 240 | 236 | 290 | |
| Tractor Power (Hp) | 20 To 24 HP | 35-45 Above | 45-50 (Above) | ||
