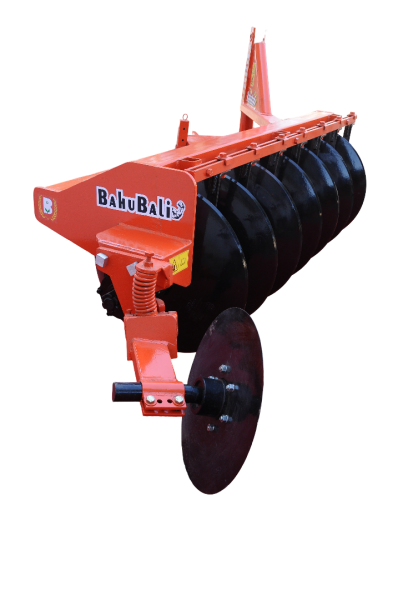

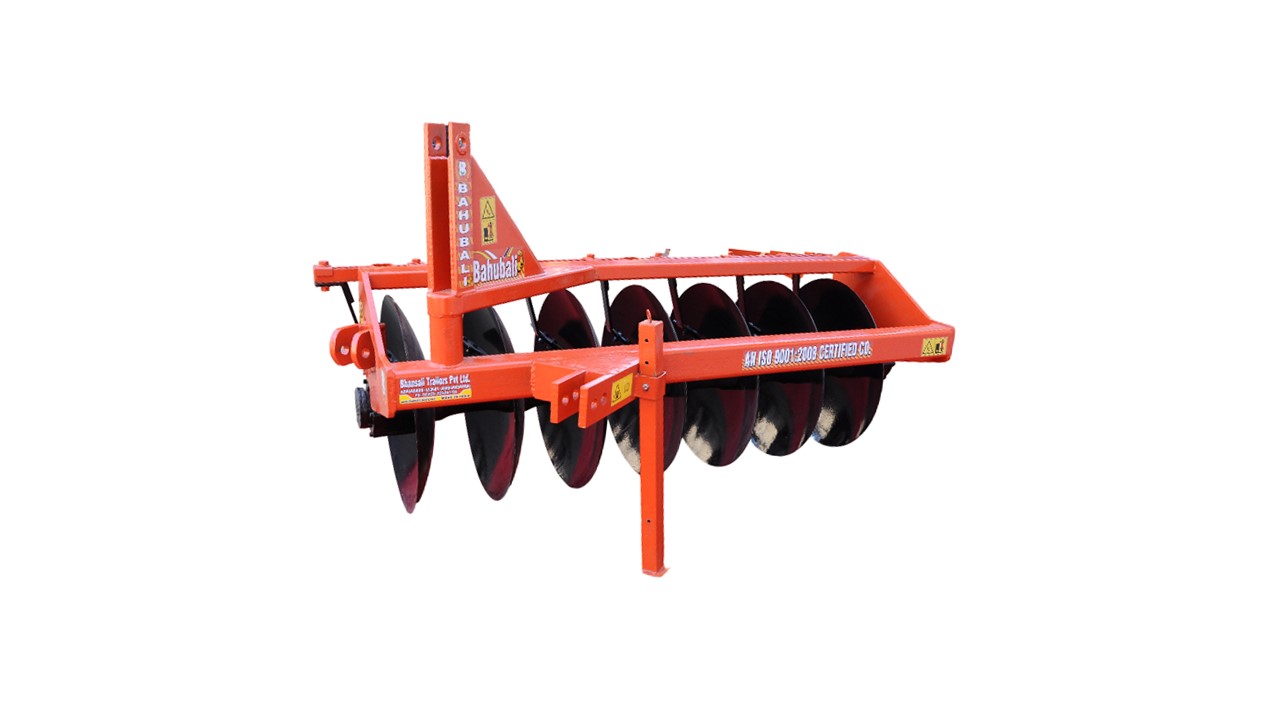

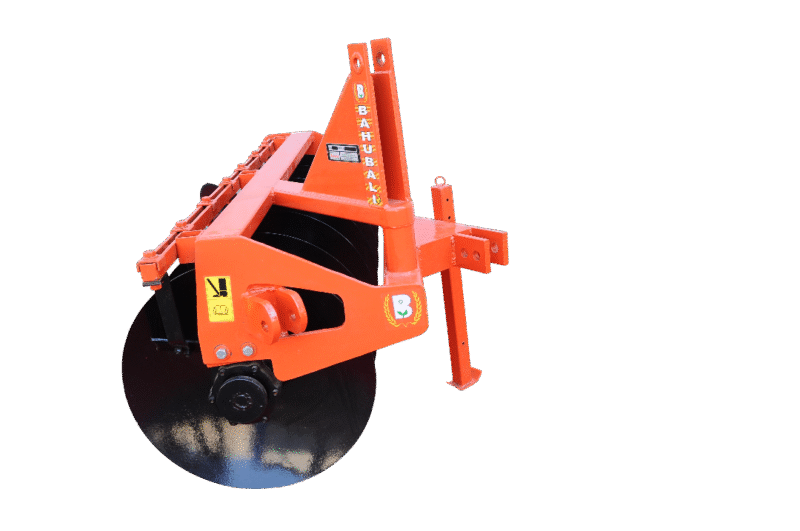

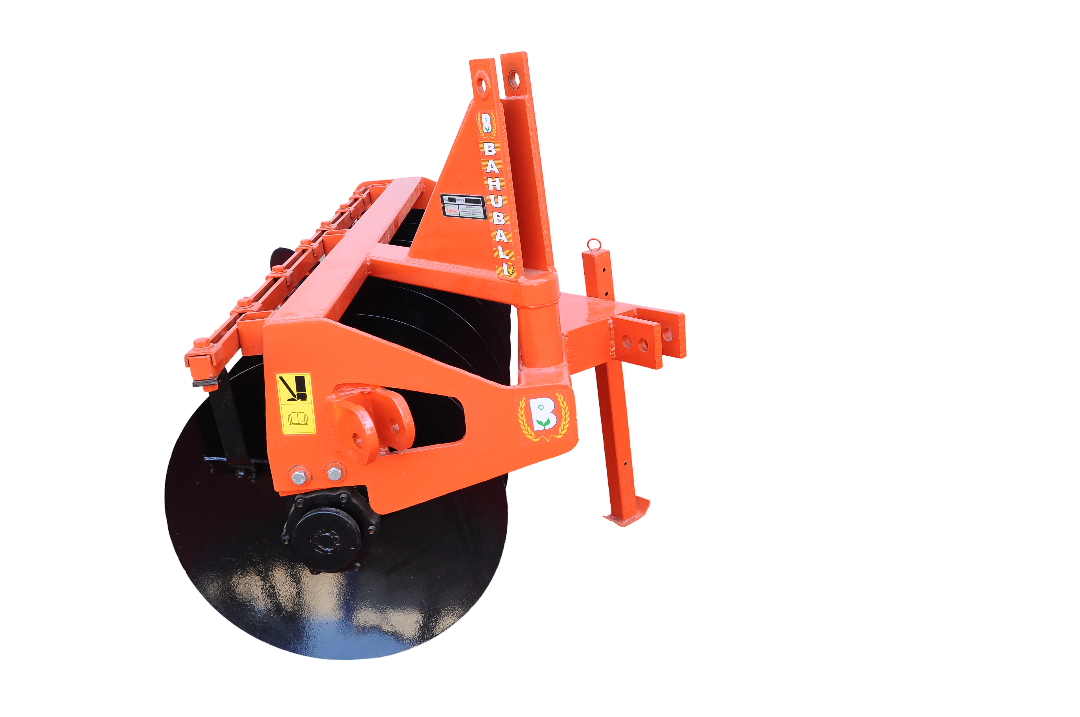

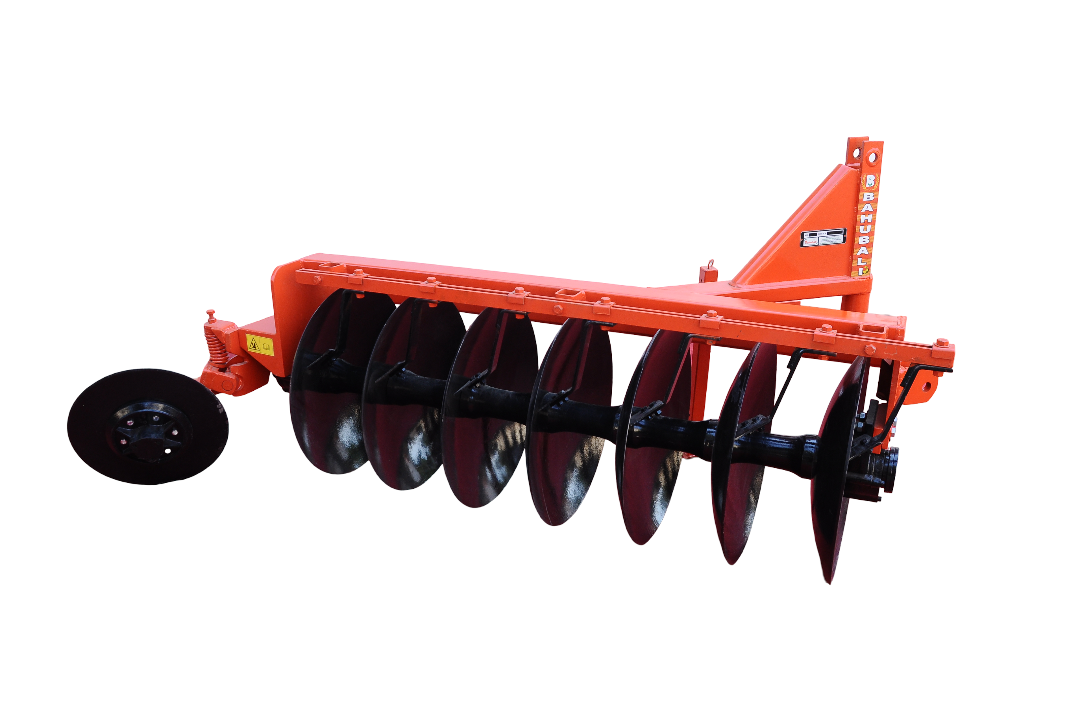

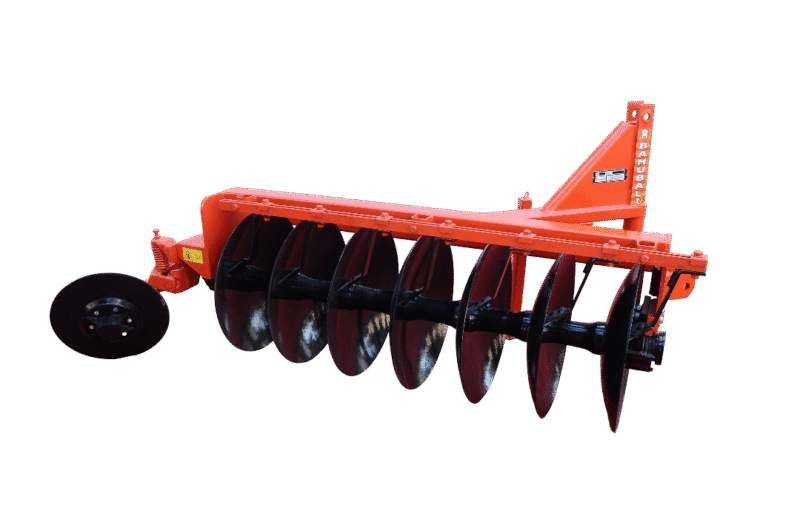

Poly Disc Harrow
1.Poly Disc Harrow to tractor with three-point linkage system. The poly Disc Harrow is designed specifically for paddy field & root instead ,sticky , stony and hard soil.
2.The machine can also fit for dry-land. poly Disc Harrow is used for chopping of stems and mixing with soil after harvesting. After using of plough on the field, you can use this Disc Harrow for breaking of clods and crumbling of soils. Our poly Disc Harrow is also used on all kinds of soils for making of seed bed, seeding bed, chopping of weeds, mixing of organic and inorganic fertilizers with soil and aeration as easily.
3.It is ideal for rain feed areas for checking soil erosion by water and wind.
4.High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
5.High quality seals prevent the entry of mud and water into the bearings and hubs.
Description
Specification
| Model Number | 4PD | 5PD | 6PD | 7PD | |
| Number Of Disc | 4 Disc | 5 Disc | 6 Disc | 7 Disc | |
| Mounting CAT | Cat II | ||||
| Main Frame | Sq. Pipe 100 X 100 | ||||
| Size of Disc mm (Optional) | 610, (660) | ||||
| Type Of Disc | Plain Disc , Boron Steel | ||||
| Axel Type (mm) | 40 or 50 or 60 mm | ||||
| Working Depth Range (mm Approx) | 152 – 304 mm (Depends on soil moisture and field conditions) | ||||
| Spacing Between Disc (mm) | 228 or 250 | ||||
| Weight (Approx. in Kgs) | 350 | 400 | 470 | 510 | |
| Suitable HP Range | 35 – 50 | 50 – 60 | 55 – 70 | 70 – 80 | |
| Ball Bearing | 32209 | ||||
| Bearing Housing | 2 Nos. (SG iron) | ||||
