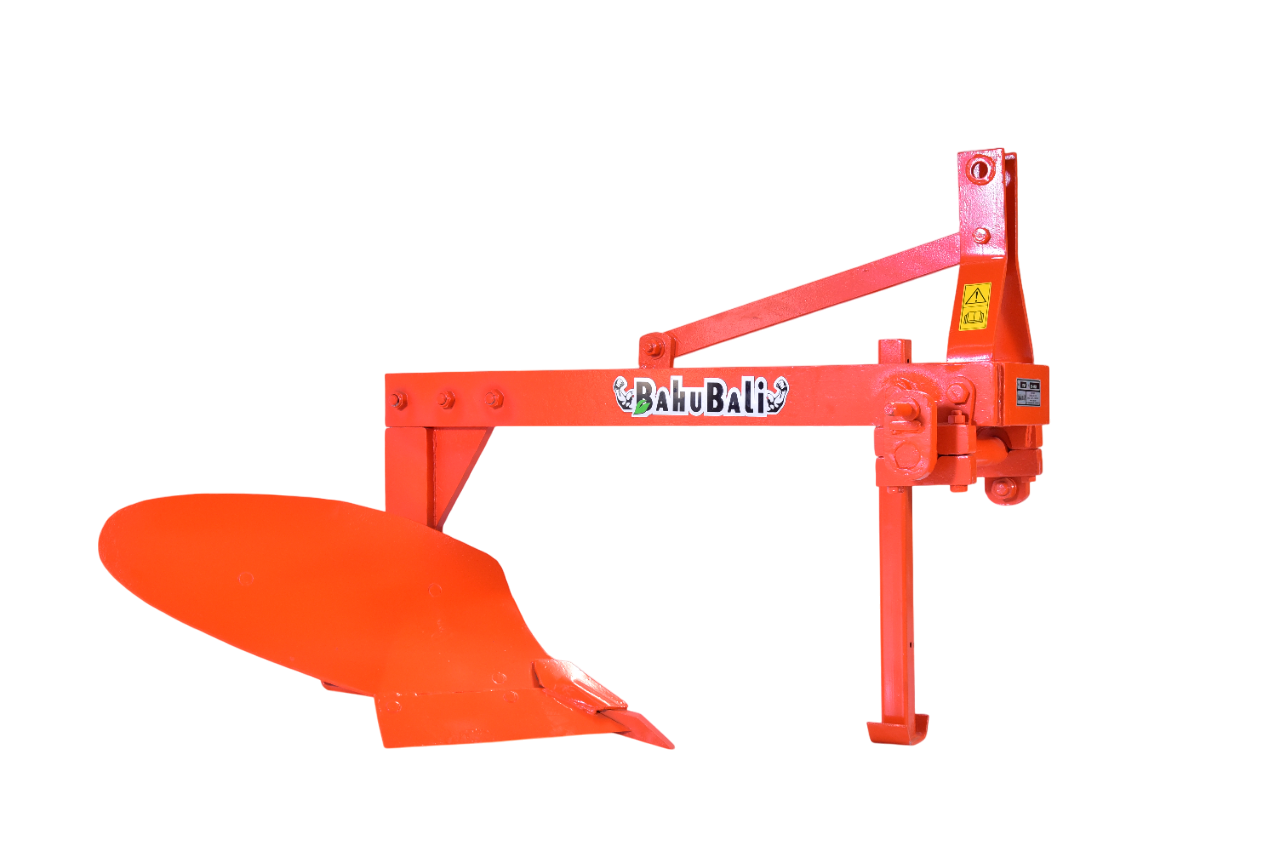

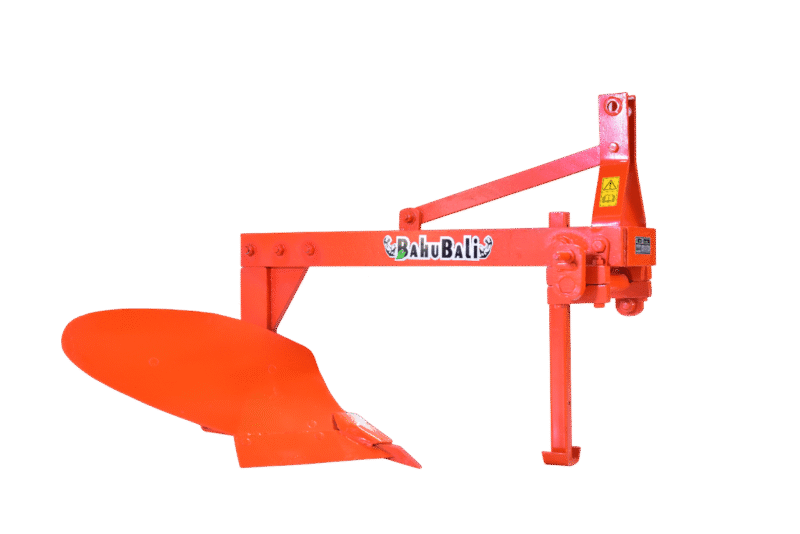

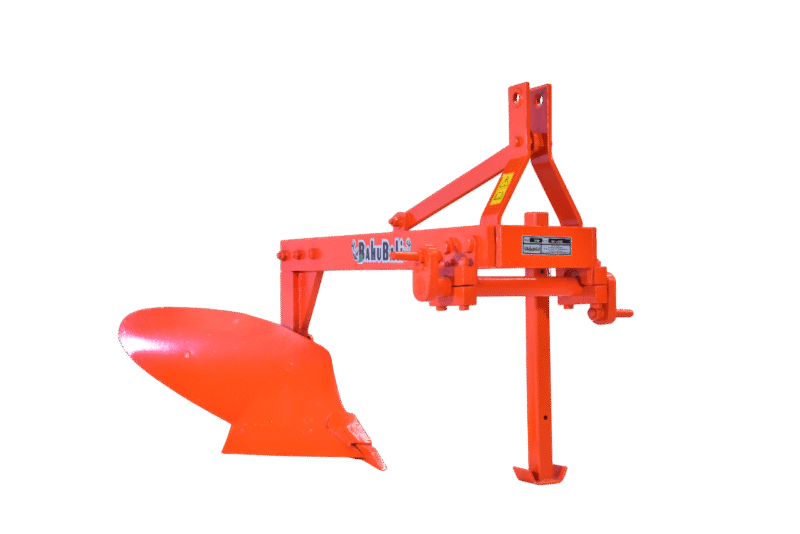

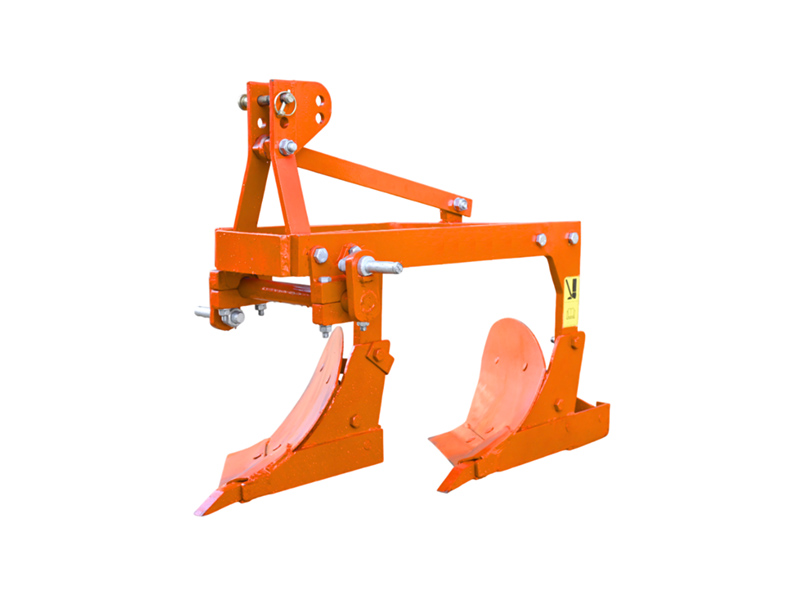

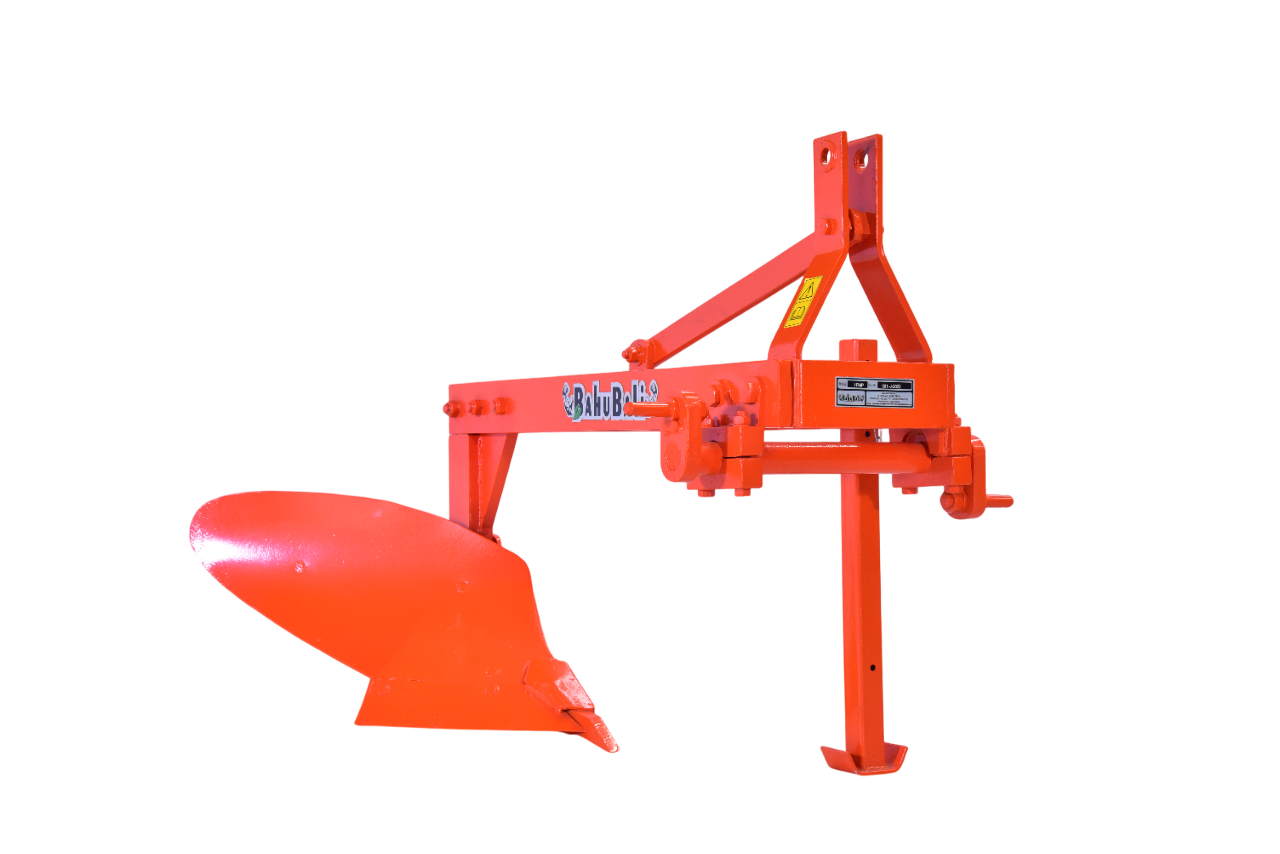

Mould Board Plough

  1. Bottom Mould Plough are tractor drawn conventional implement being widely used for primary tillage operations.
  2. Mould Board Plough can work & useful in very hard soil conditions and in soils where securing is a problem.
  3. Made for high quality material and helps in better inversion of soil. The plough has special wear-resistant steel blade with bar points for toughest ploughing jobs.
  4. Low maintenance cost.
  5. Increase tractor stability.
  6. Bar point bottom ensures longer life as it can be extended or reversed and reused till the last possible length.

Description

Specification

Model Number 1MBP 2MBP Unit
Number of Bottom 1 2 Nos.
Board Size (Thk) 5 mm
Width of Cut (approx.) 305(Italian) 550 mm
Depth of Cut 180-225
Overall Length 800 1100 mm
Overall Width 800 mm
Overall Height 850 mm
Total weight 58 85 kg
Suitable HP range 18-25 HP
Bottom size of MB plough 220 mm
Mast height 360/480 mm
Span 400 mm
