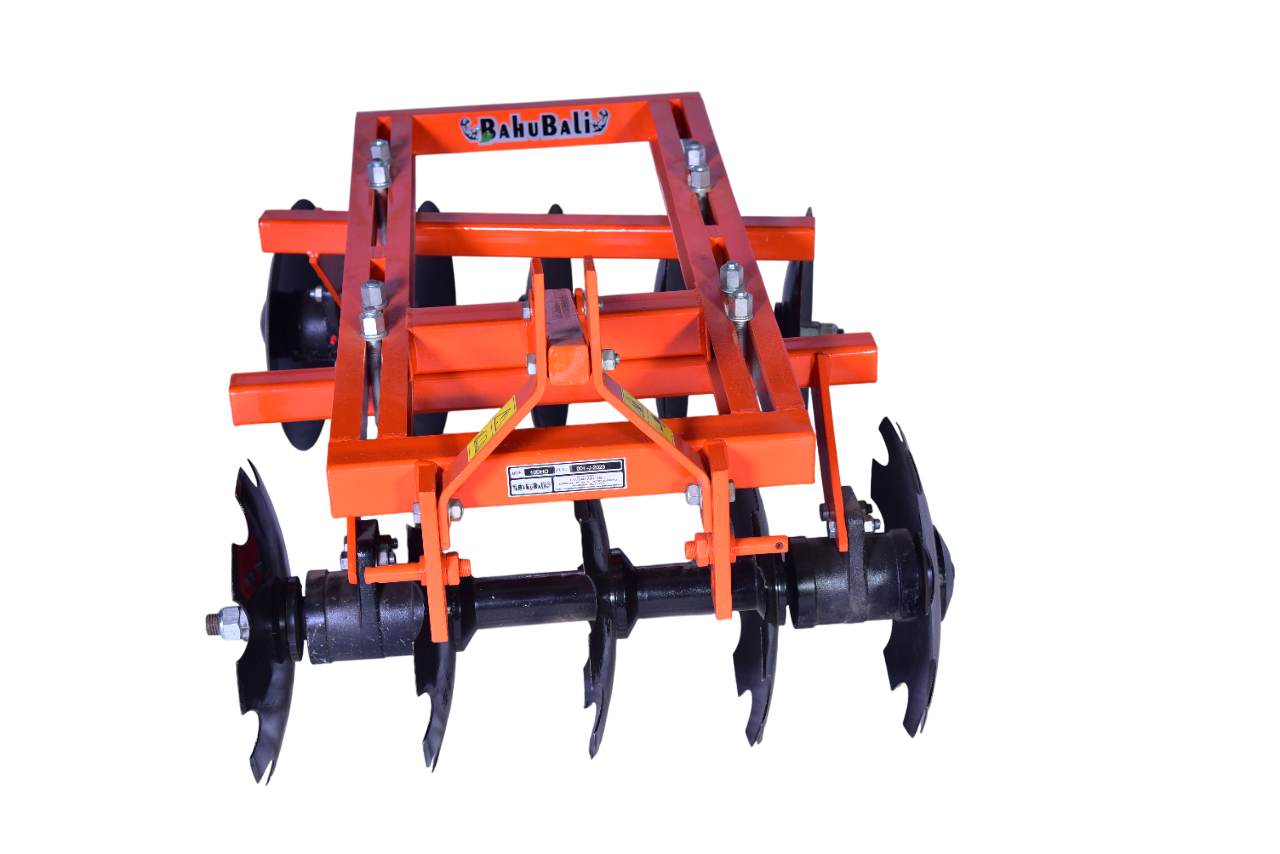

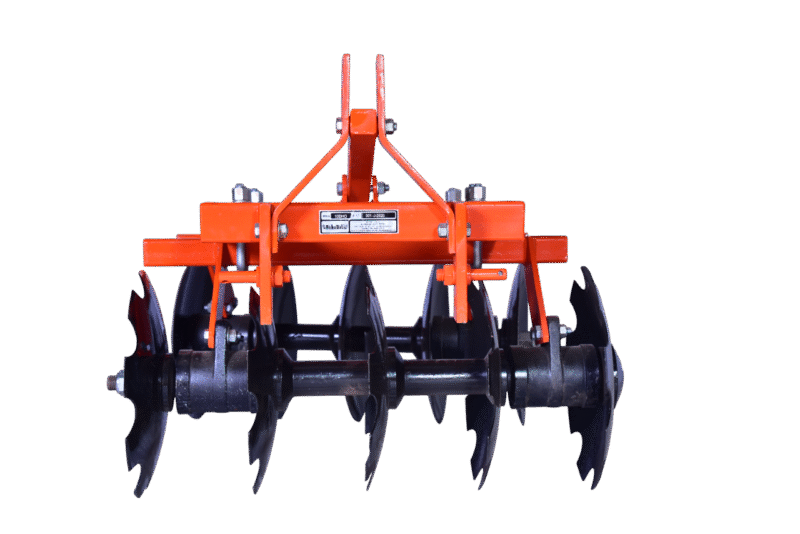

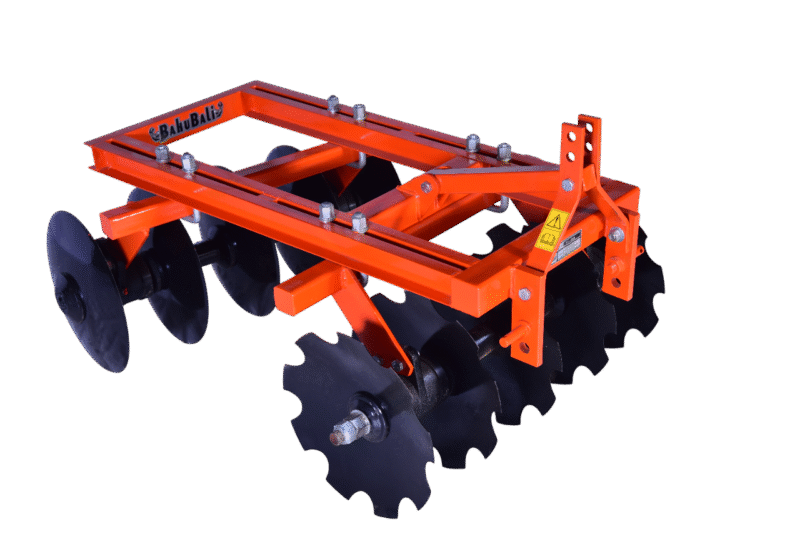

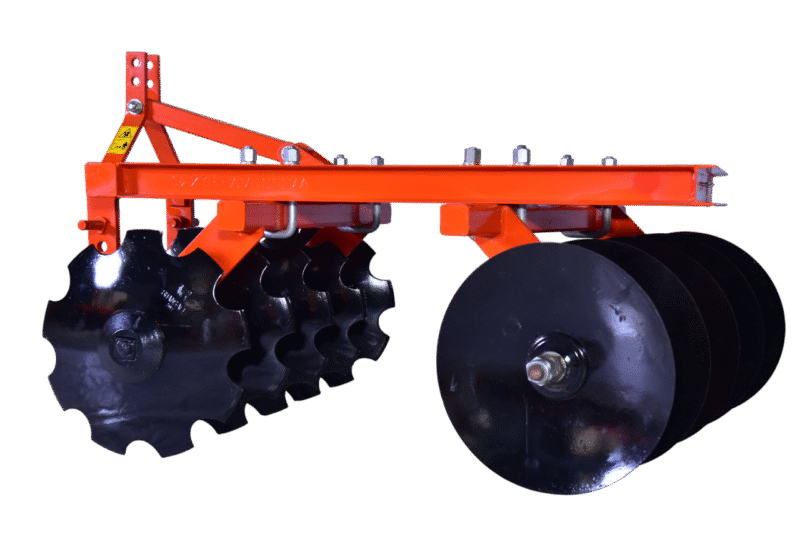

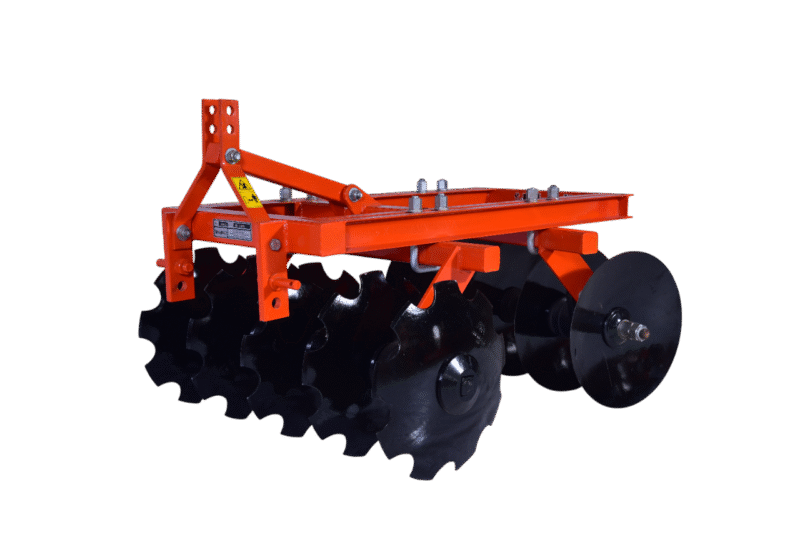

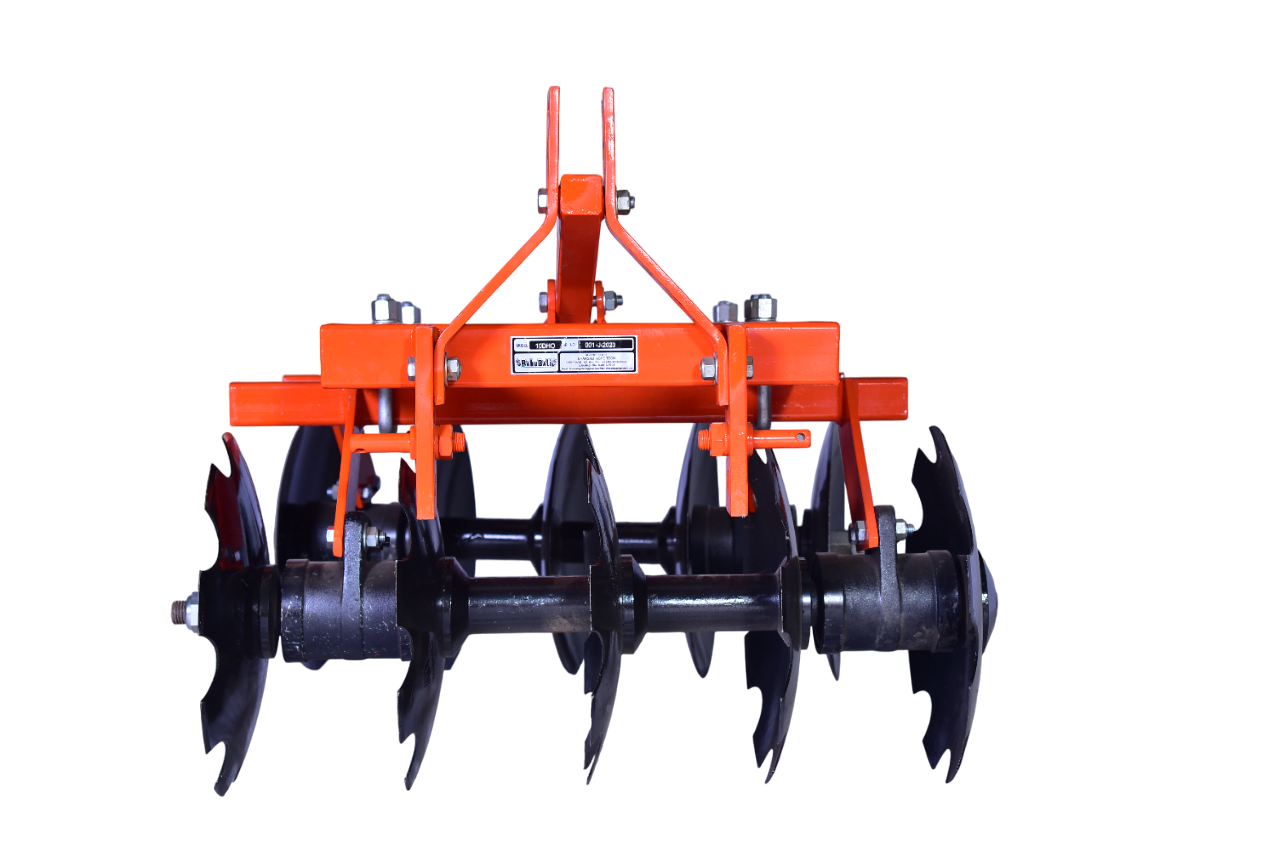

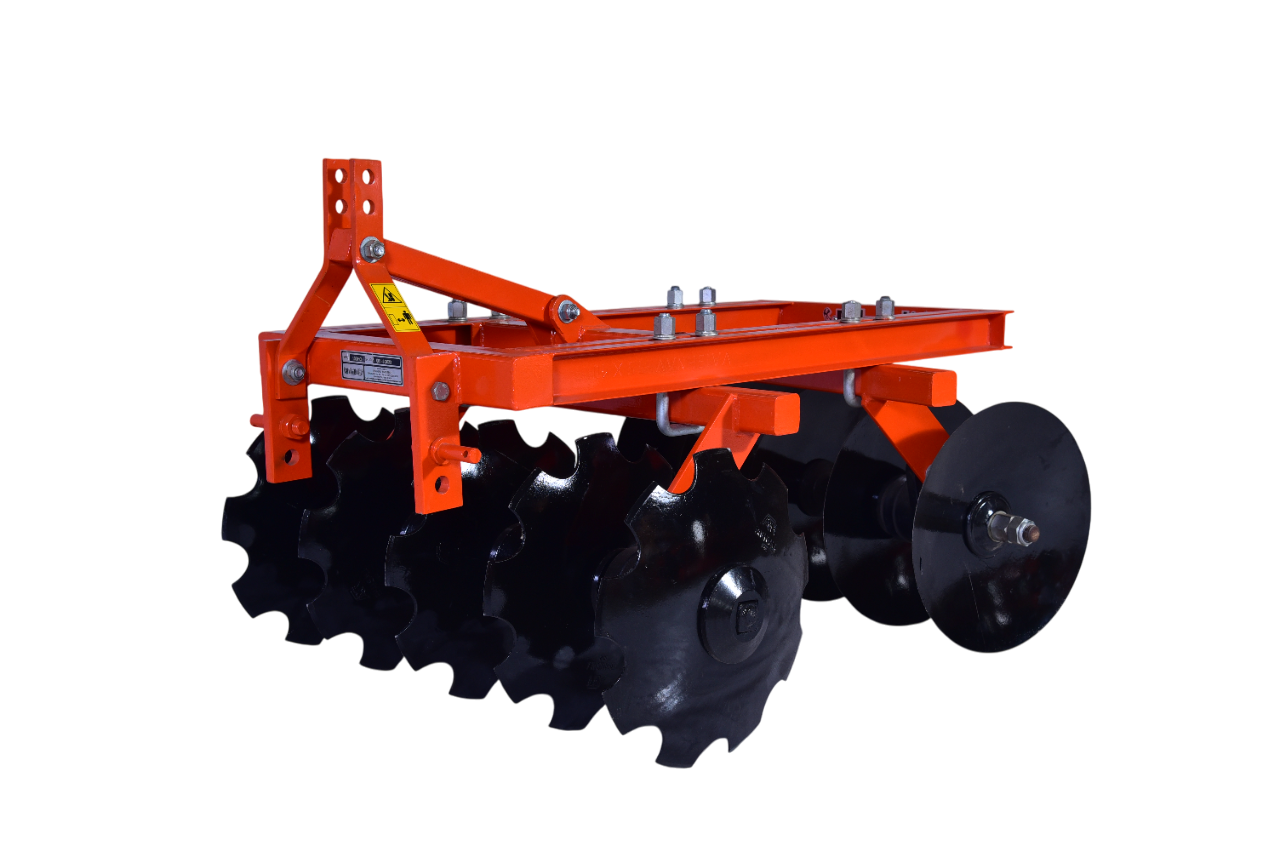

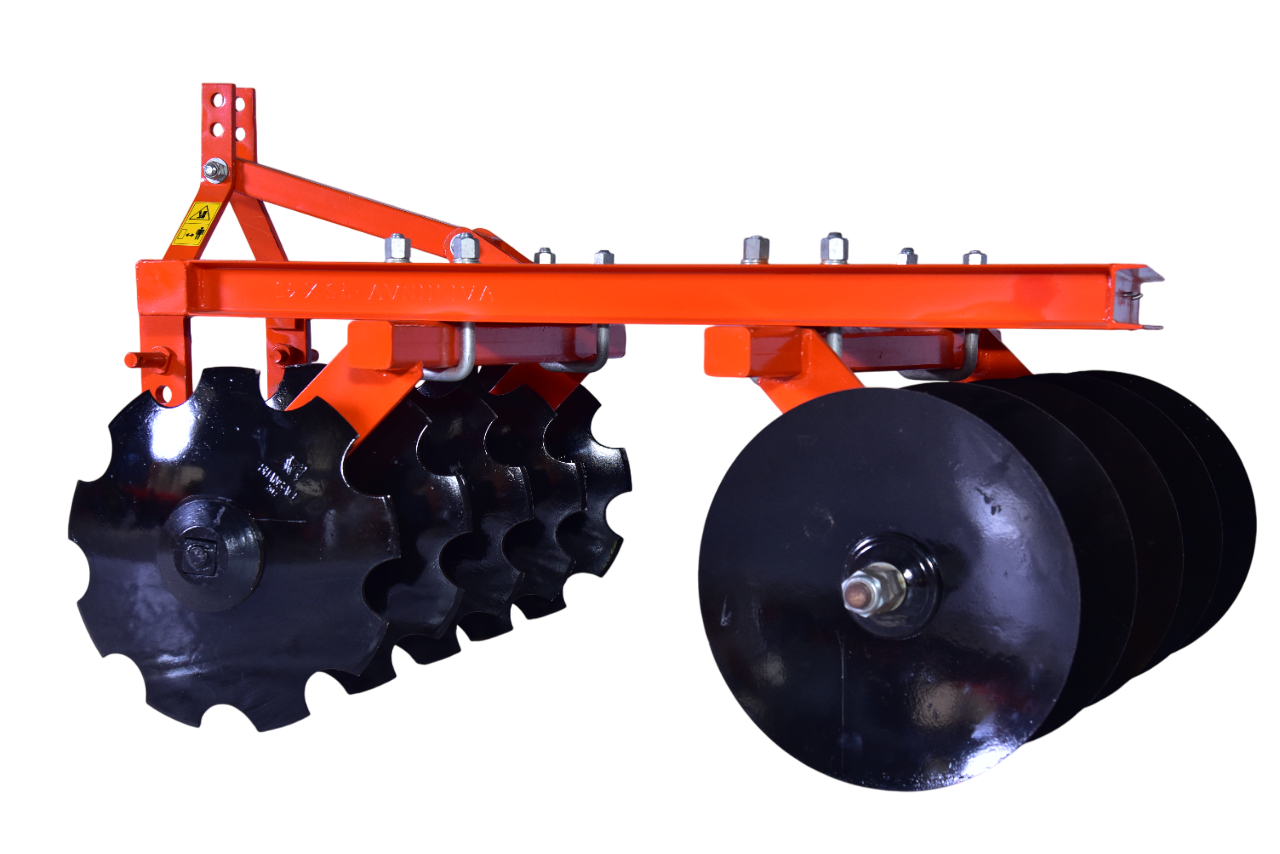

Harrow
- It can be used in both forms i.e. mounted as well as trailed.
- High quality boron steel disc with 48~52 HRC hardness.
- Tillage depth of the harrow is 150~200 mm.
- Easily transportable – as it gets easily attached and mounted.
- Adjustable gang axles angle upto 46°.
- High quality bearings and hubs ensure smooth operation and put minimum load on the tractor.
- High quality seals prevent the entry of mud and water into the bearings and hubs.
Description
Specification
| Model Number |
8DHO |
10DHO |
Unit |
| No of Disc |
8 |
10 |
No |
| Type of Disc |
Plain & Notch |
|
| Disc Dia |
18” |
mm |
| Width of Cut |
Adjustable |
mm |
| Space between Disc |
225 |
mm |
| Max Depth |
100-150 |
mm |
| Weight (Approx.) |
140 |
160 |
Kg. |
| Width of cut |
Adjustable |
mm |
| Suitable H.P range |
18-25 |
HP |
