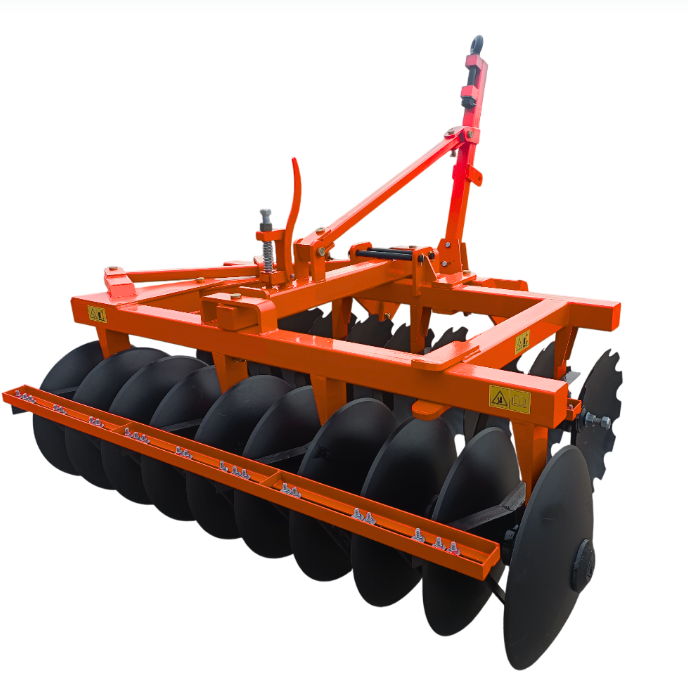

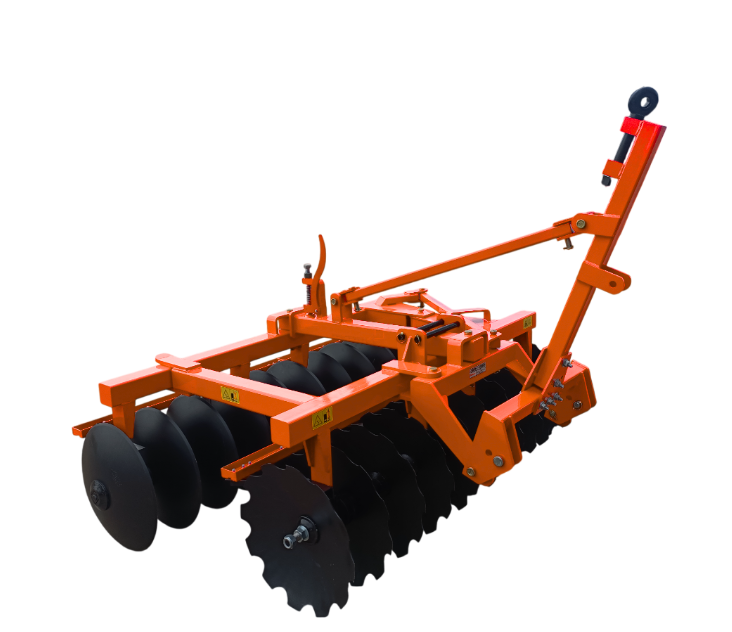

Compact Disc Harrow

It can be used in both forms i.e. mounted as well as trailed.
High quality boron steel disc with 48~52 HRC hardness.
Tillage depth of the harrow is 150~200 mm.
Easily transportable – as it gets easily attached and mounted.
Adjustable gang axles angle upto 46°.
High quality bearings and hubs ensure smooth operation and put minimum load on the tractor.
High quality seals prevent the entry of mud and water into the bearings and hubs.

Category: Harrow Tag: Secondary Implements

Description

Model Number	16DCH	18DCH	20DCH	22DCH	24DCH
Number Of Disc	16 Disc	18 Disc	20 Disc	22 Disc	24 Disc
Type of mounting	Three point Hitch Linkage (CAT II)
Disc Dia (mm)(Optional)	560 (610 & 660)
Disc Type	Front: Notched, Rear: Plain
Frame (mm)	100 X 100 Sq. Pipe
Disc Spacing (mm)	230
Maximum Depth (mm)	150-200 (Depends on soil moisture and field conditions)
Gang AXEL (mm)	32 mm Sq. Bar
Width of Cut (mm) ( Adjustable)	1900	2100	2200	2450	2650
Weight(Kgs) (560mm Disc)	700	780	850	904	1018
Weight(Kgs) (610mm Disc)	730	835	880	970	1090
Weight(Kgs) (660mm Disc)	780	890	940	1036	1162
Bearings Hub	6	8	8	8	8
Tractor HP Range Suitability	50-60	50-60	60-70	80-90	90-100
