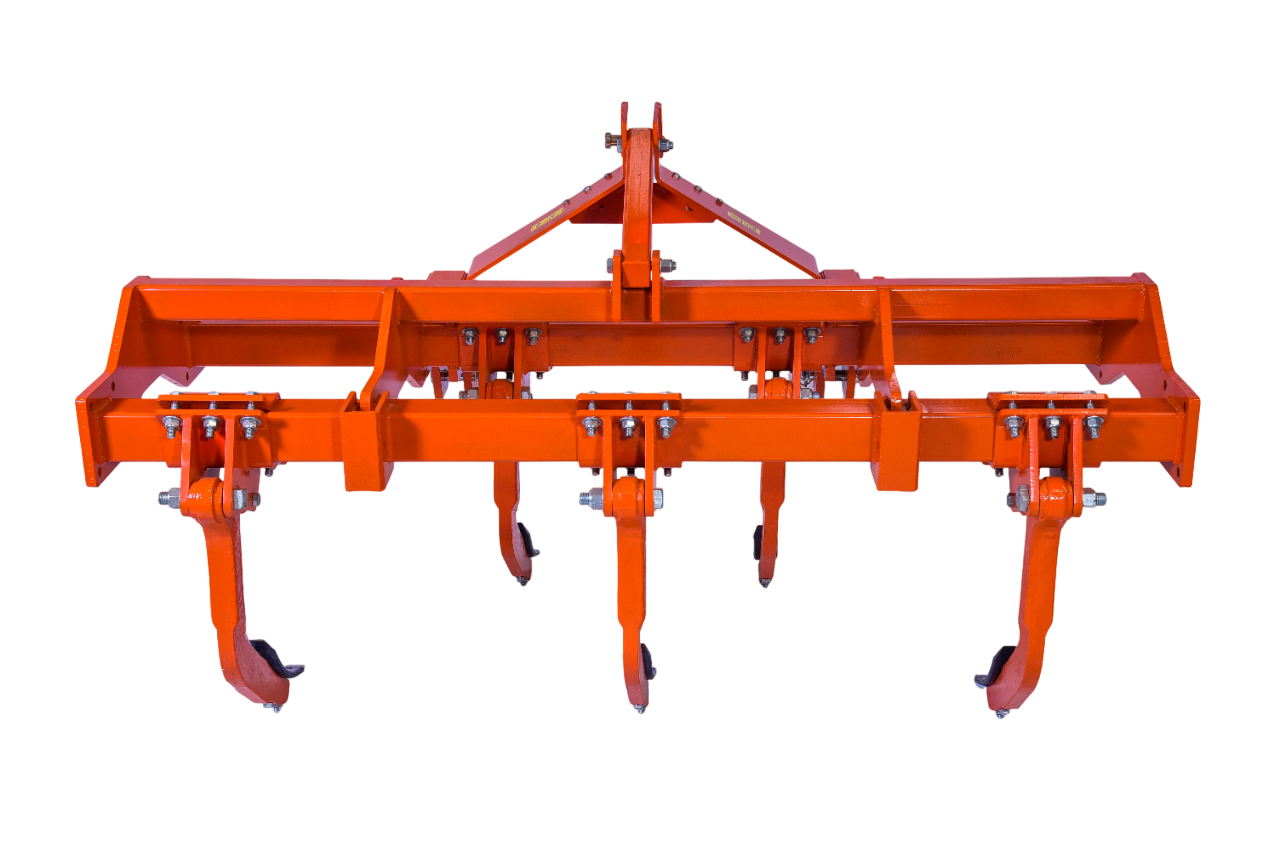

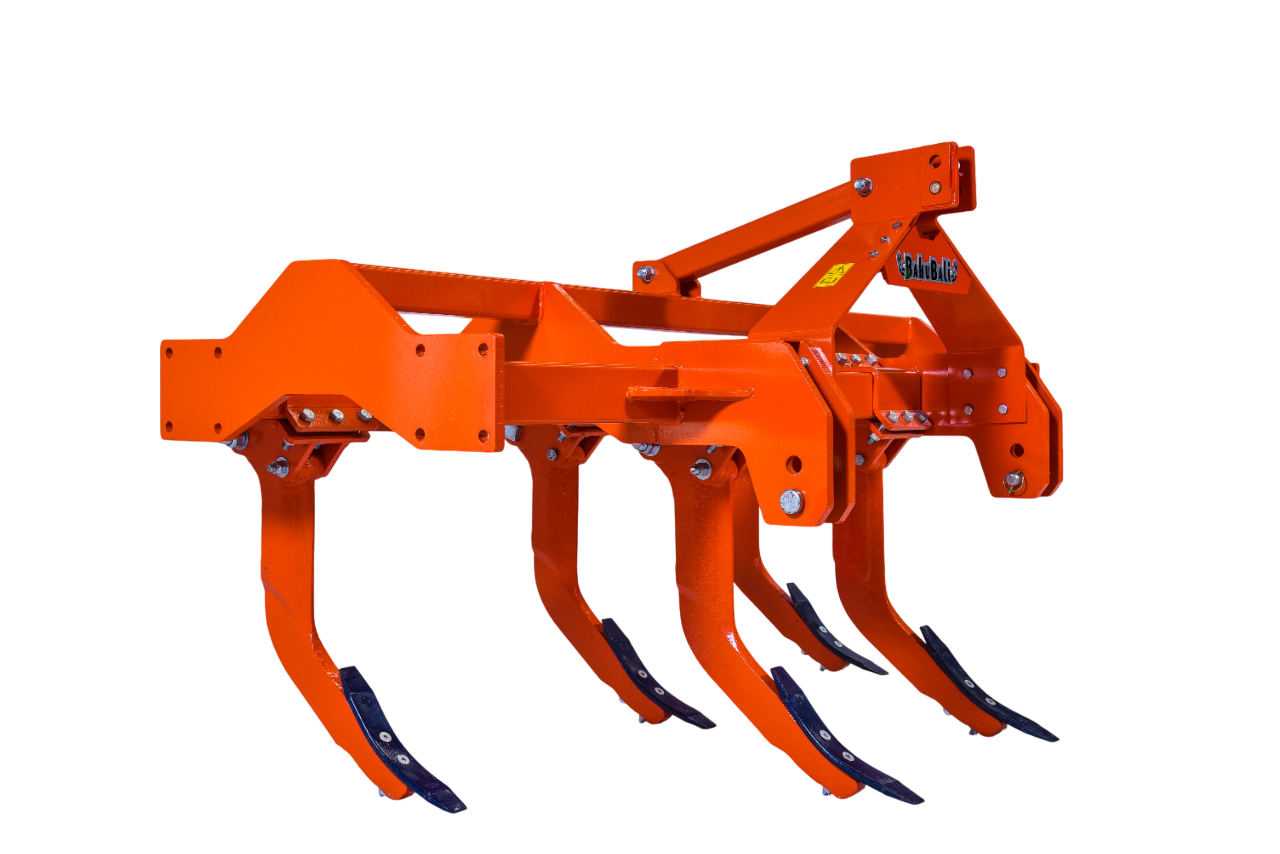

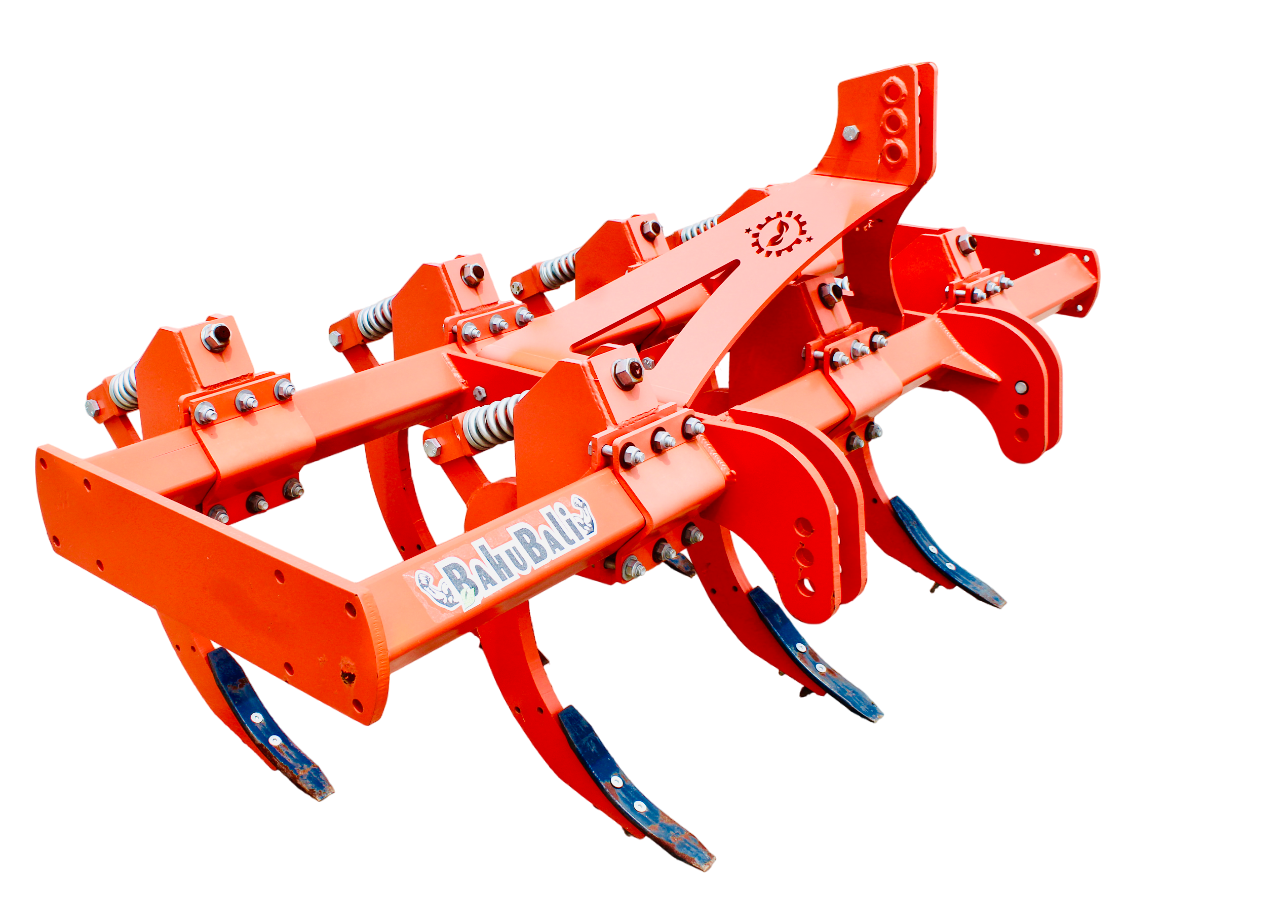

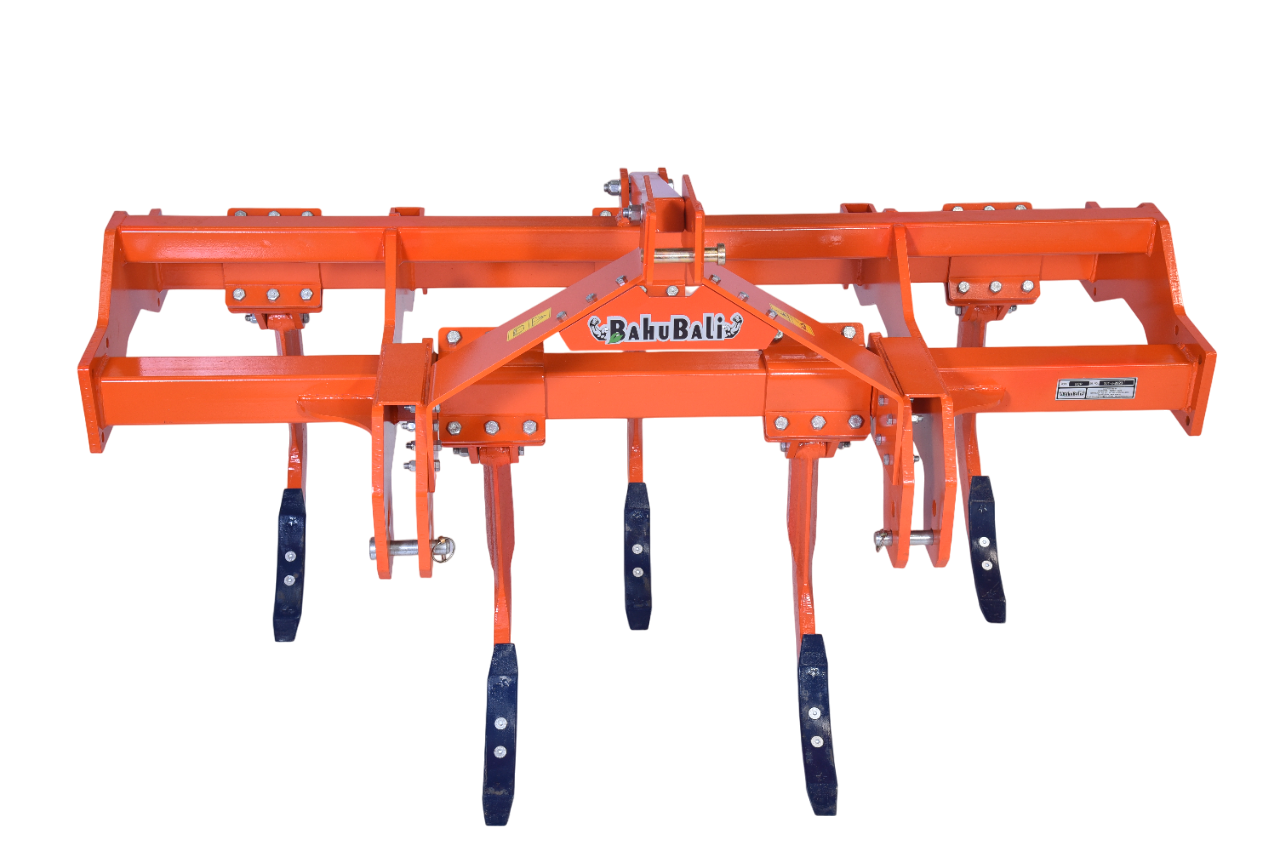

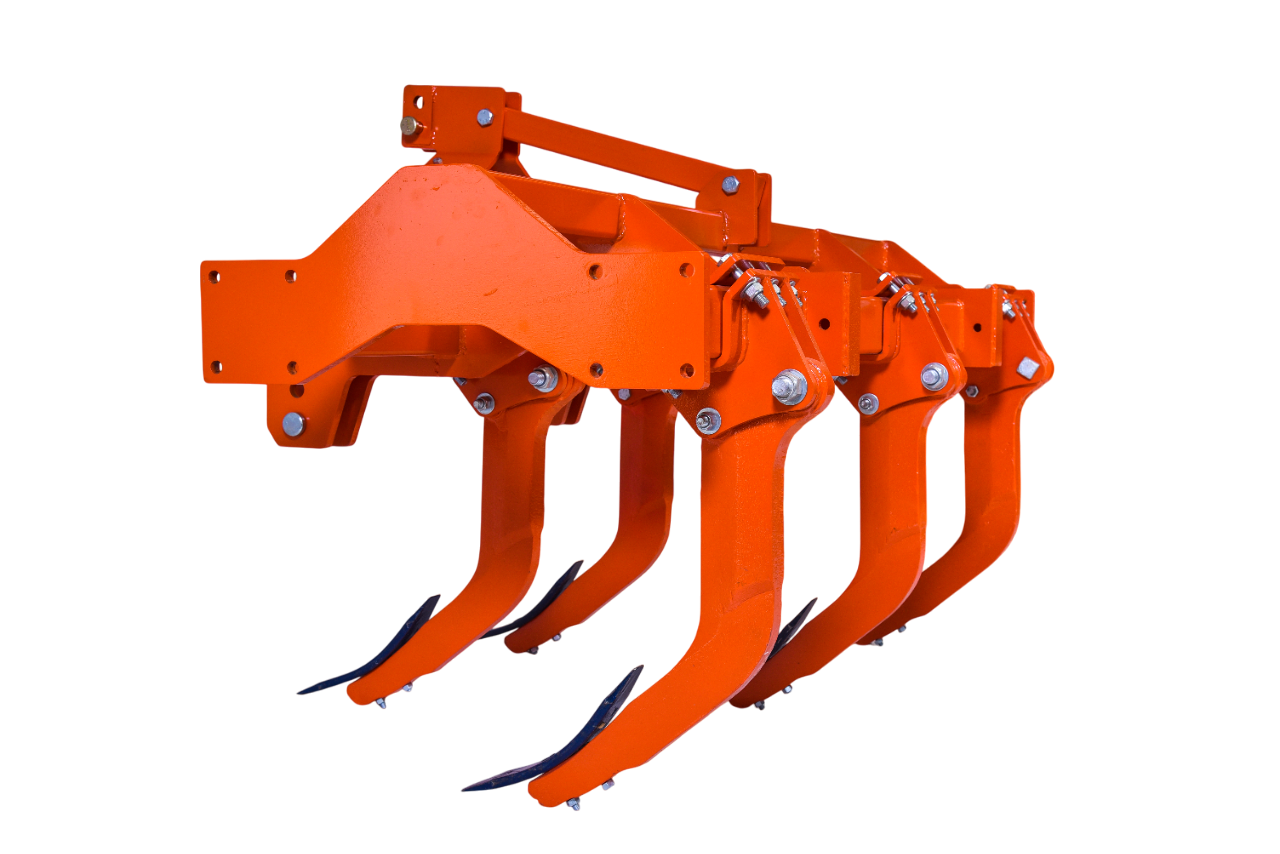

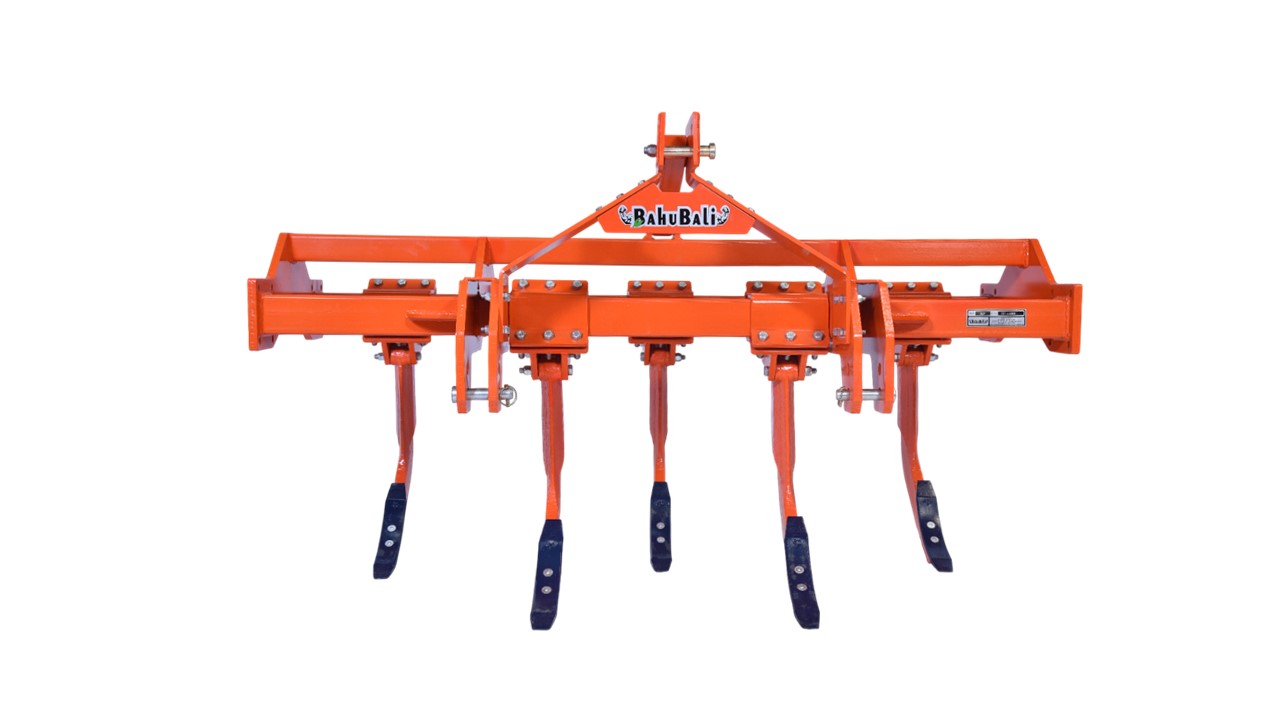

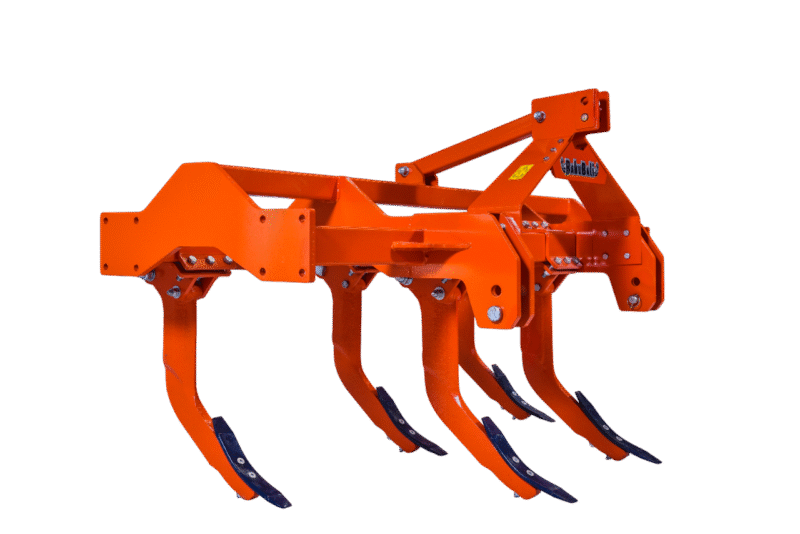

Chisel Plough
- The primary soil tillage machine is mounted on the tractor through a hydraulic lifting unit and a universal three-point linkage system, making it easy to transport to the field.
- In fields plowed with standard ploughs, a hard soil layer usually forms at a depth of 25–40 cm. The chisel plough is designed to break this hard layer using its long, angled tines. This allows rain and irrigation water to penetrate deeper into the soil, improving water storage.
- Since the tines are slim, the surface soil remains less disturbed, helping to retain moisture for a longer time and reducing wind and water erosion.
Description
Specification
| MODEL | SS-1 | SS-2 |
| Number Of Tynes | 5 | 7 |
| Main Frame Size mm | BOX Frame 100×100 | |
| Type Mounting | Three Point Hitch Linkage (Cat II) | |
| Overall length, mm | 1500 | |
| Overall Width, mm | 2150 | 2900 |
| Overall Height, mm | 1270 | |
| Working Width, mm (Depends On soil moisture and field condition) |
1800 | 2500 |
| Weight,(Kg) | 495 | 789 |
| Recommended Tractor Power (HP) | 65-75 | 55-65 |
| Working Depth range (mm) (Depends On soil moisture and field condition) |
400 | |
| Tyne Size mm / Shovel Material | 150 x 25 / EN8 | |
