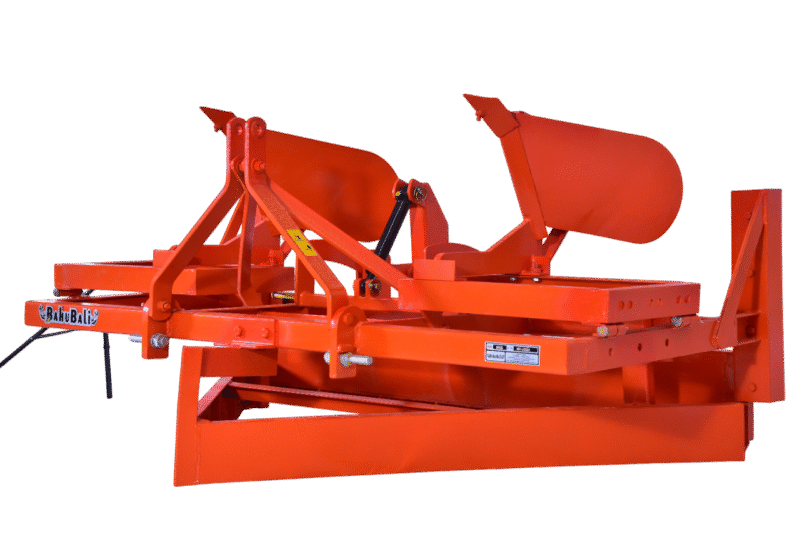

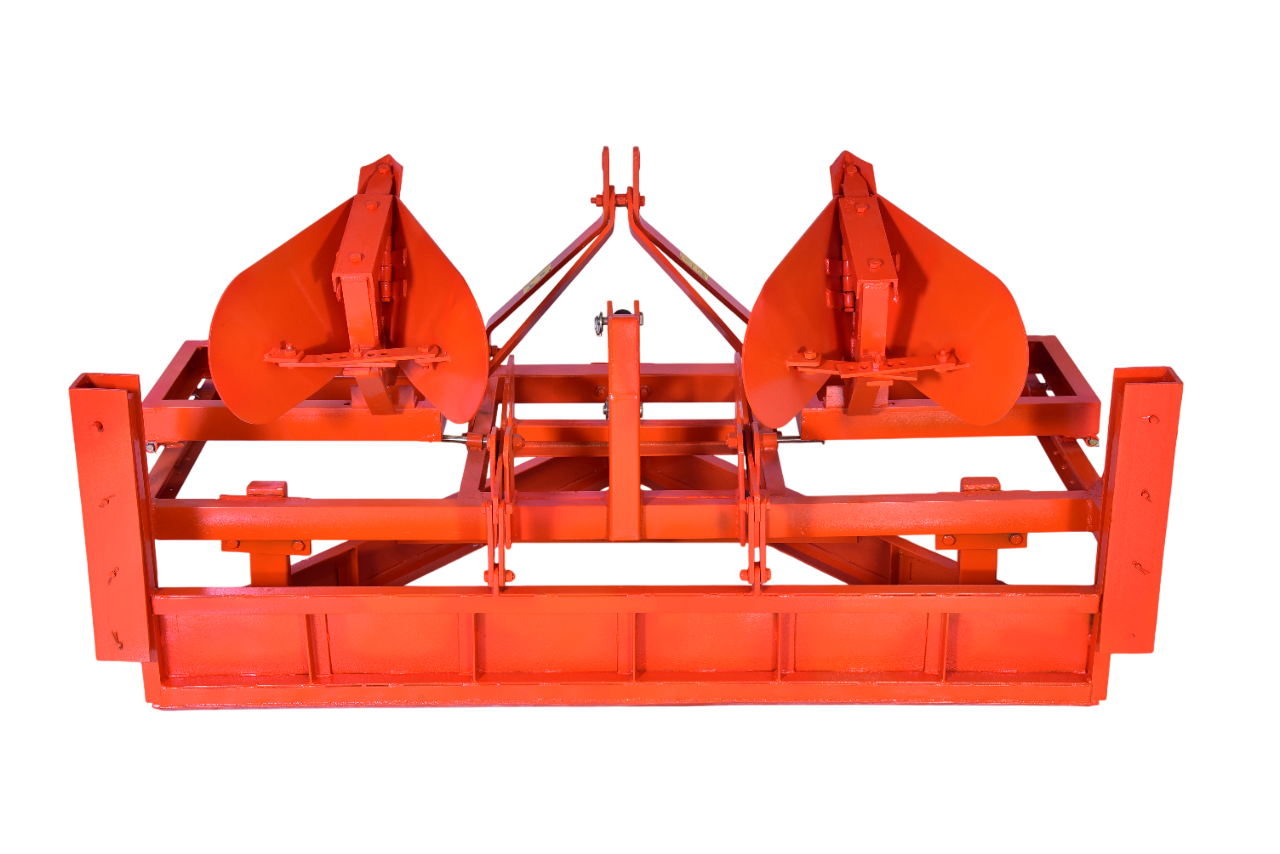

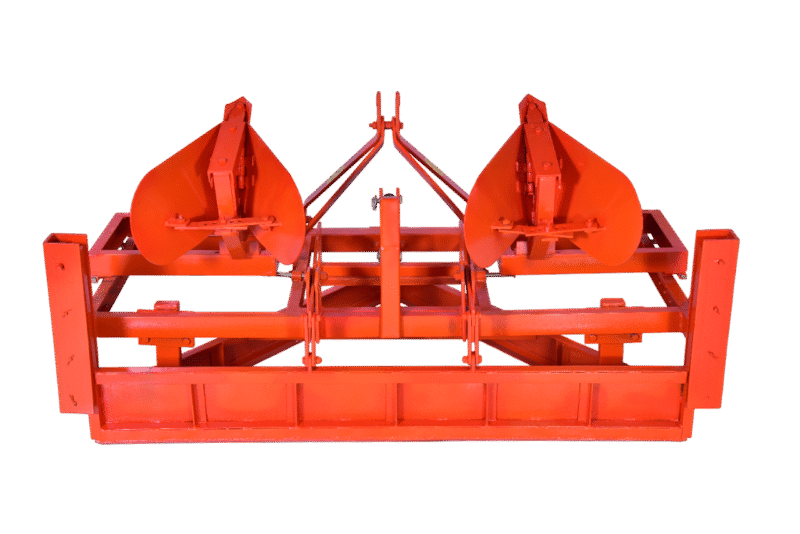

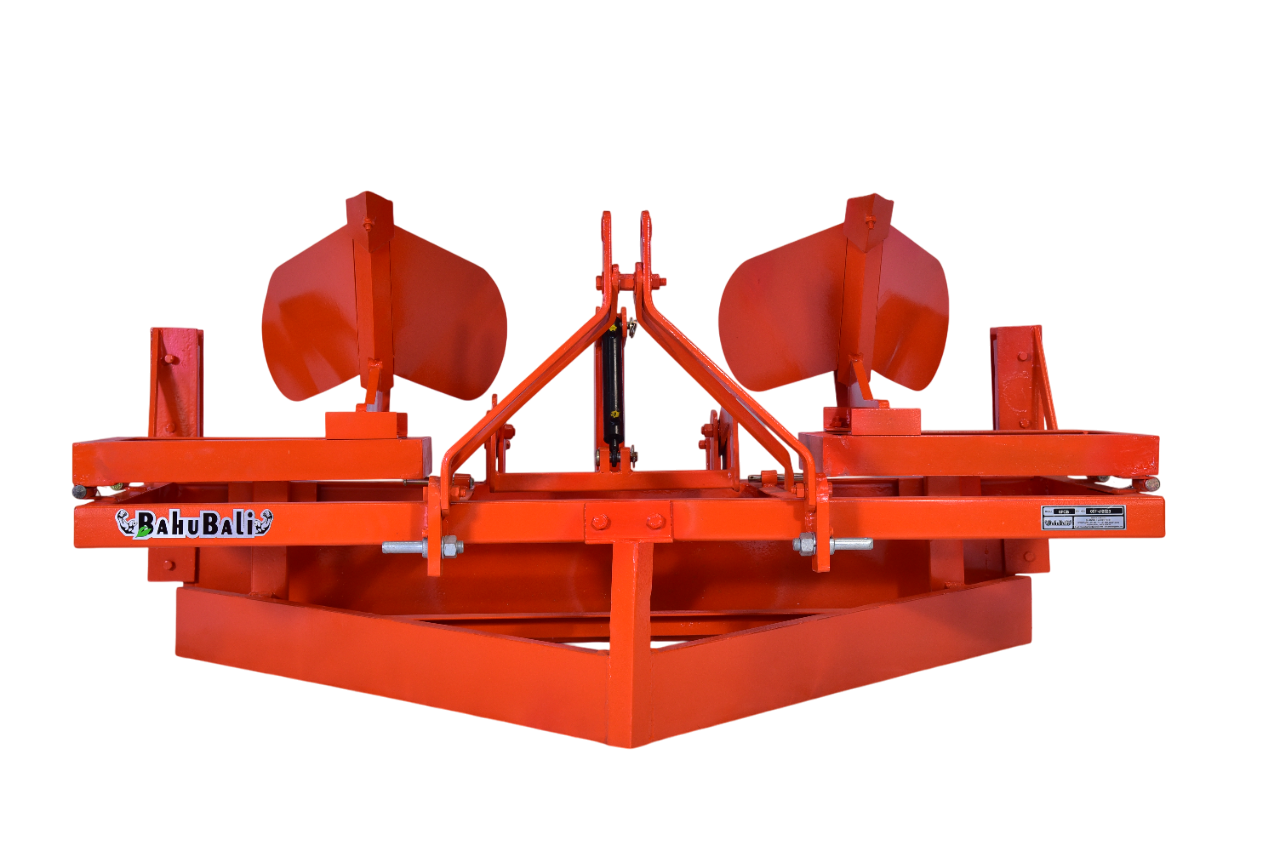

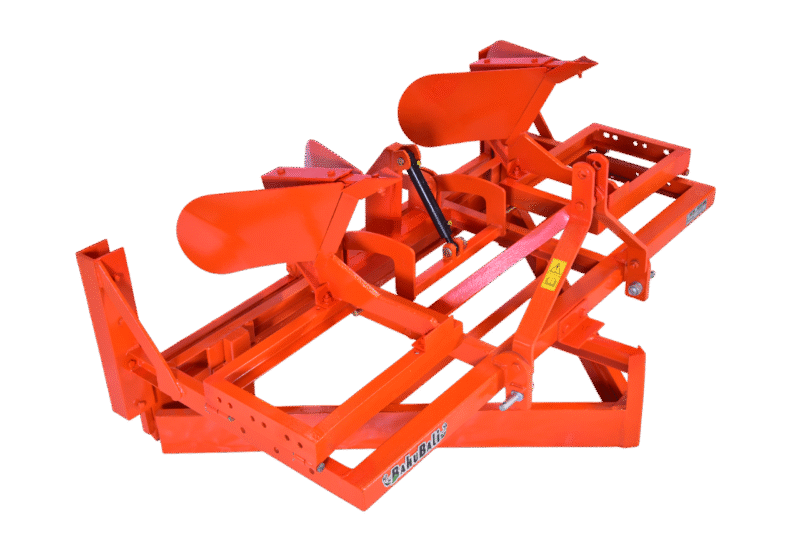

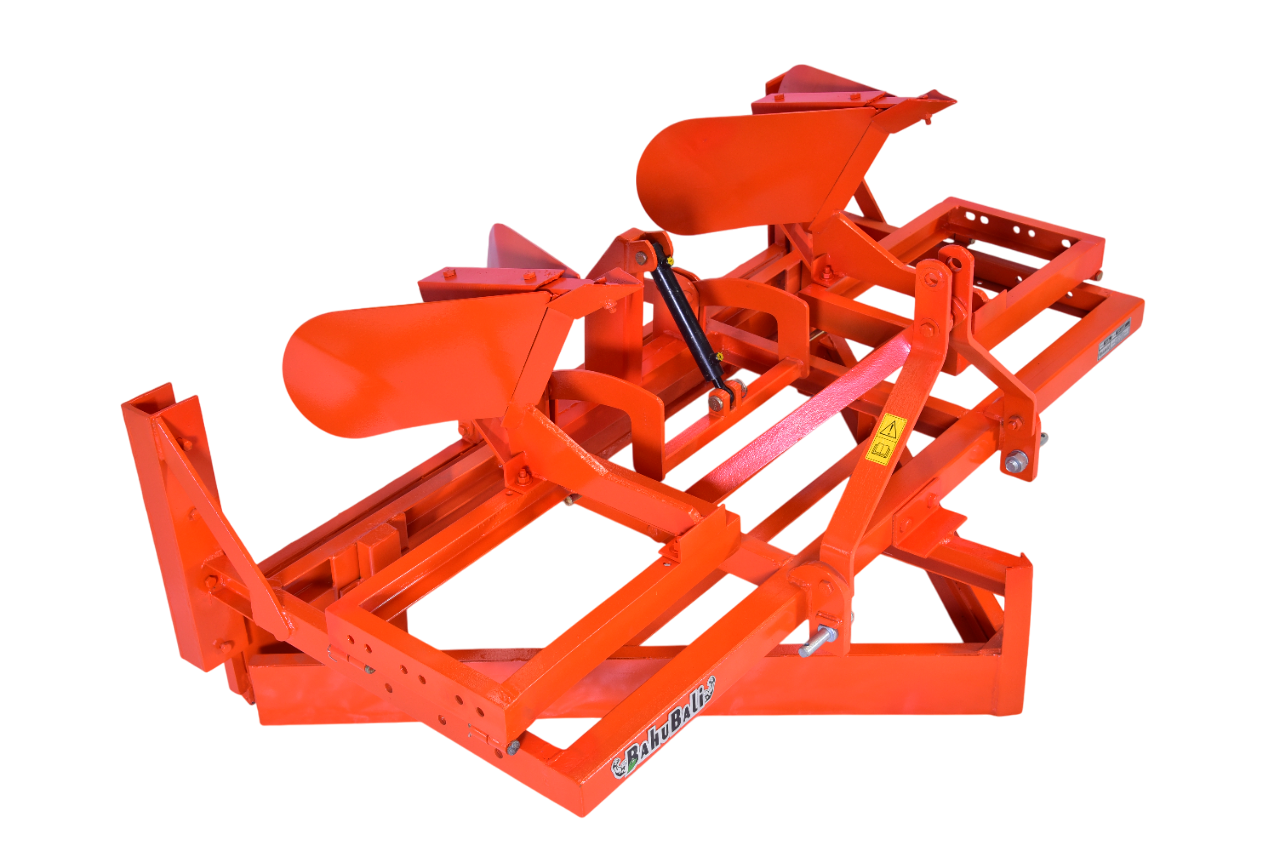

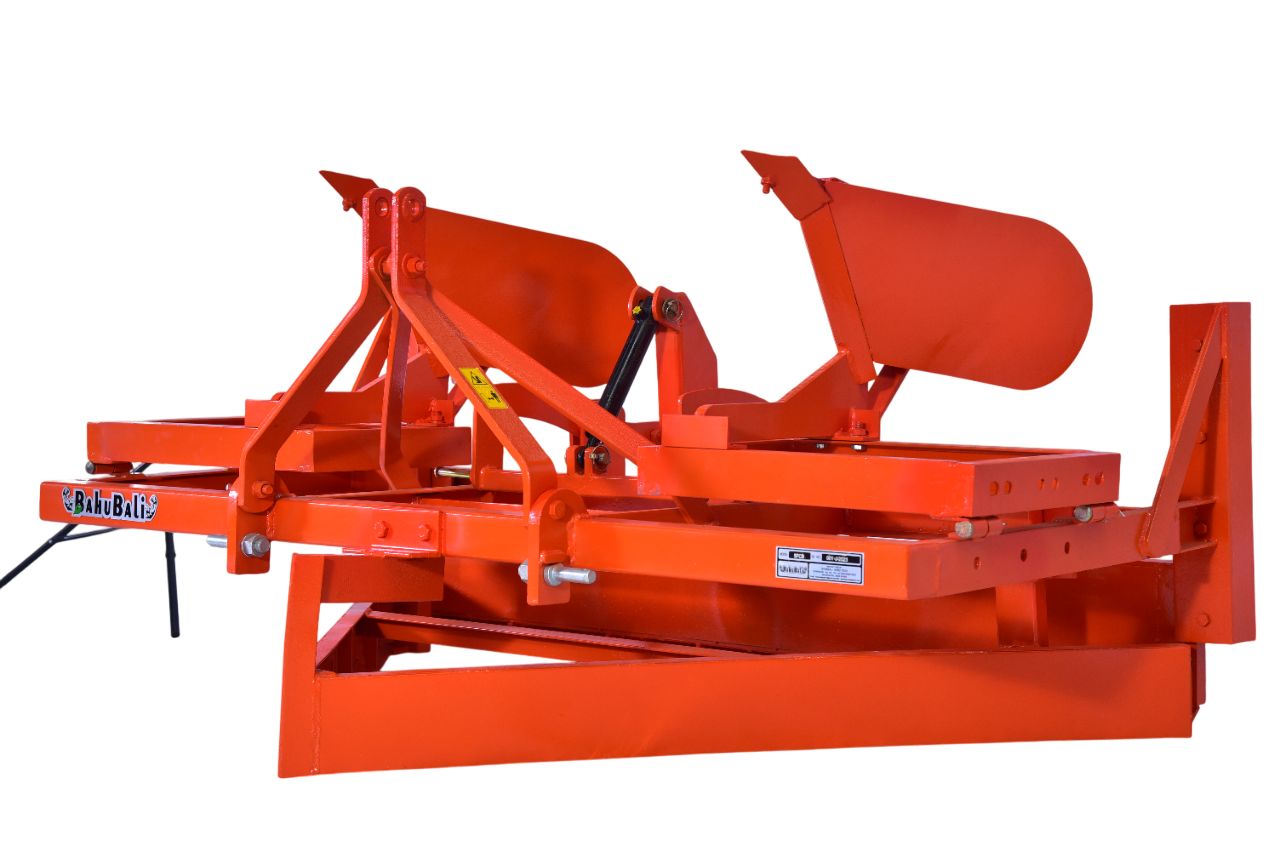

Bunding Machine
- It is Used for forming bunds in well prepared soil to facilitate formation of plots, irrigation and identification.
- It is drawn with the help of a tractor in fields.
- It is mostly used for water conservation in dry area.
- It can store 6 to 8 inches rain water and conservator it.
- It is used full for cultivation of Groundnut, Bellary onion, Ragi, Maize, Black Grame, Coriander, Vegetables, Banana, Papaya, Sappota, Bitter gourd with this Implement it is possible to lay levelled beds, bunds and irrigation channels etc., quickly and perfectly.
Description
Specification
| MODEL NUMBER | BUNDM |
| Main Frame (mm) | 75 X 40 |
| Operated By | Hydraulic Cylinder |
| Working Width Range (Approx. mm) | 1930 |
| Working Depth Range (Approx. mm) | 150 -200 |
| Over All: Length x Width x Height (mm) | 1070 X 2070 X 1000 |
| Mounting | 3 point linkage (Cat II) |
| Weight Kgs | 275 |
| Suitable HP Range | 35-45 |
