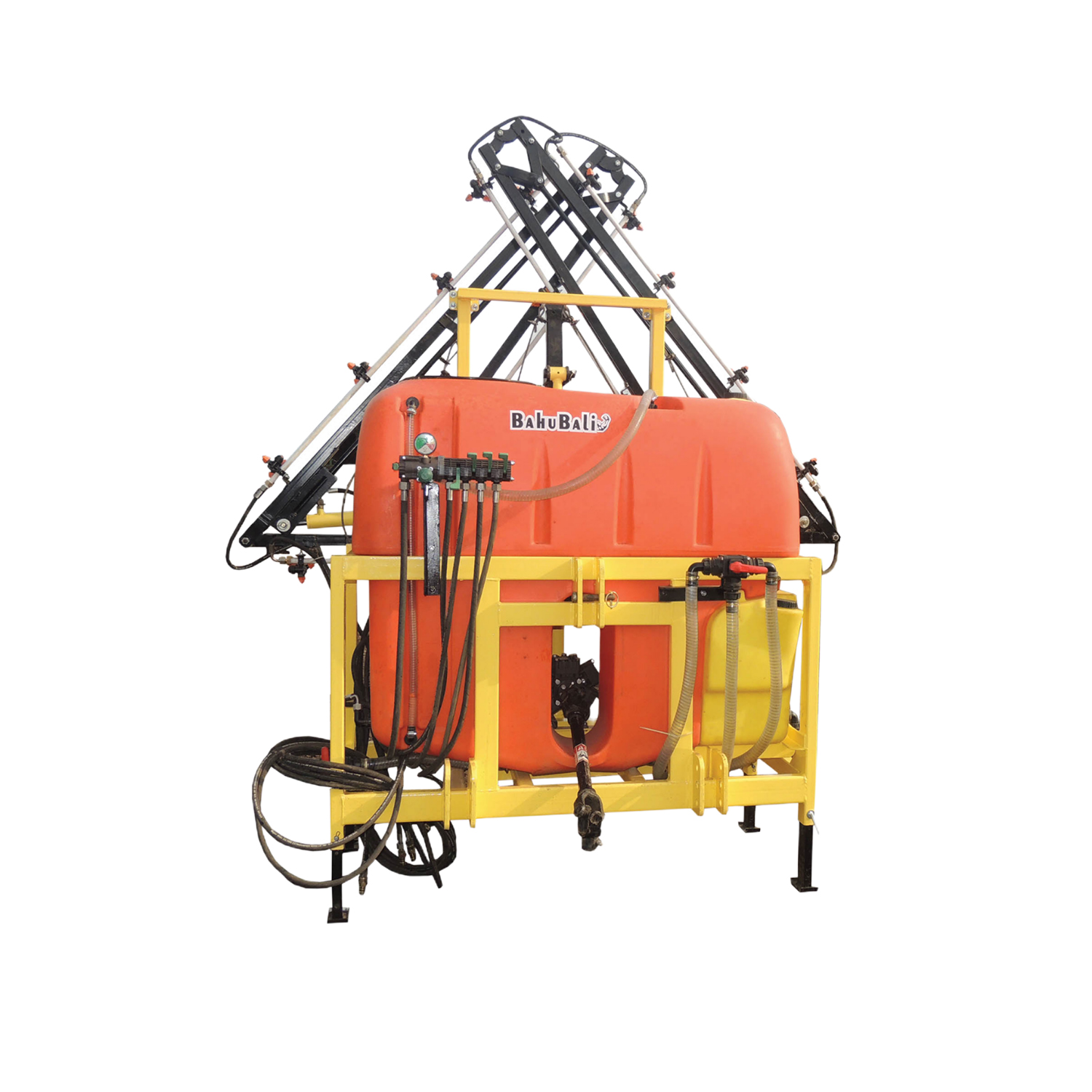

Boom Sprayer
- The tractor operated boom sprayer worked satisfactorily for different crops for spraying operation.
- This sprayer covers large area in one pass so that save the time and energy. Also, reduce some demand and drudgery of labor.
- Chemical water mixture flow direction: tank-suction filter-diaphragm pump-Controls-Nozzles
- Boom can be fold by hydraulically or manually.
- Height of boom can be adjust by hydraulically or mechanical (by sliding mechanism).
- Sprayer available in different capacities such as 300, 400, 500, 600 and 800.
- Use 55 & 65 lpm diaphragm pump (Italy make) and operated by PTO.

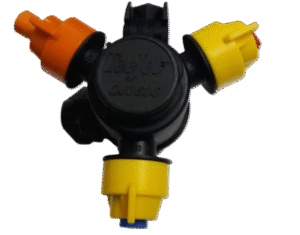

- Used Anti-drip nozzle because form different nozzle distribution pattern to meet specific application requirements.
- Spacing of nozzles on boom are adjusted with proper overlapping and boom distribution pattern.
- Suitable for 24 HP and above tractors.
- Galvanized frame prevent corrosion.
- Guidelines and necessary instruction stickers on tank.
- Low maintenance cost and quick service.
- Bottom of tank attach hydraulic agitator for maintain a proper fertilizer mix in spray tank.
- Design and quality according to Indian climatic condition for durability.
- There are three corrosion resistant polyethylene tank 1. Chemical water mixture, 2. Hand wash 3. Water reservoir tank.
- Fluid volume indicator on the side of tank to view the tank’s contents.
Description
Specification
| Description | BMS-300 | BMS-400 | BMS-500 | BMS-600 | BMS-800 |
| Tank Capacity Italian | 300 ltrs | 400 ltrs | 500 ltr | 600 ltrs | 800 ltrs |
| Pump Capacity & Type Italian | 55 lpm (Diaphragm) | 55 lpm (Diaphragm) | 55 lpm (Diaphragm) | 65 lpm (Diaphragm) | 65 lpm (Diaphragm) |
| Boom Length (in Meters) | 6 | 8 | 10 | 12 | 15 |
| No. of Nozzles | 12 | 16 | 20 | 24 | 30 |
| Nozzle Spacing (in cm) | 50 | ||||
| Nozzle Type | Anti Drip | ||||
| Boom Folding Acuation | Manual (Hydraulic Optional) | ||||
| Boom height Adjustment | Mechanical (Hydraulic Optional) | ||||
| No. of Boom Sections | 3 | 3 | 3 | 5 | 5 |
| No. of Supply Section | 3 | 3 | 3 | 4 | 4 |
| Menifold Levers | 3 | ||||
| Boom Folding Type | Line | cross | |||
| Anti Accident Action | Spring Loaded | ||||
| Tractor HP | 24-36 | 36-45 | 40-50 | 50-60 | 60-70 |
| Mounting | CAT-I | CAT-II | CAT-II | CAT-II | CAT-II |
