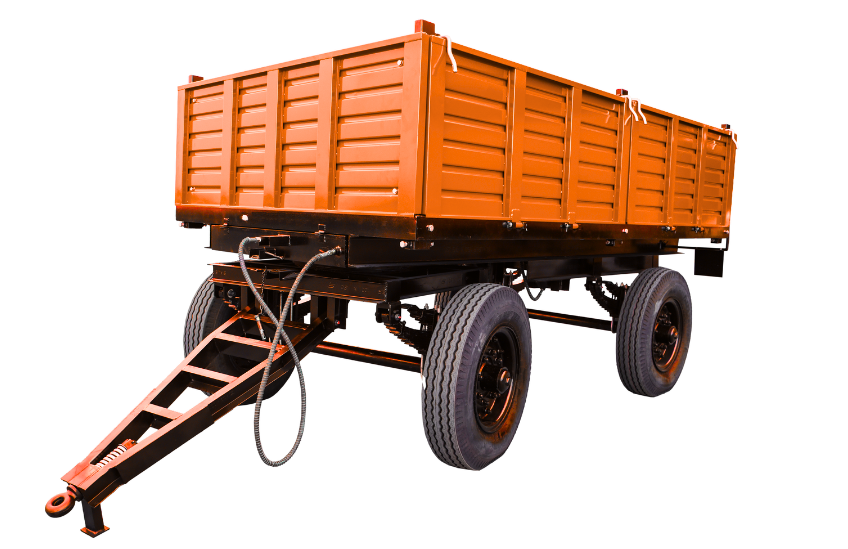

4 Wheel Tipping Trailer

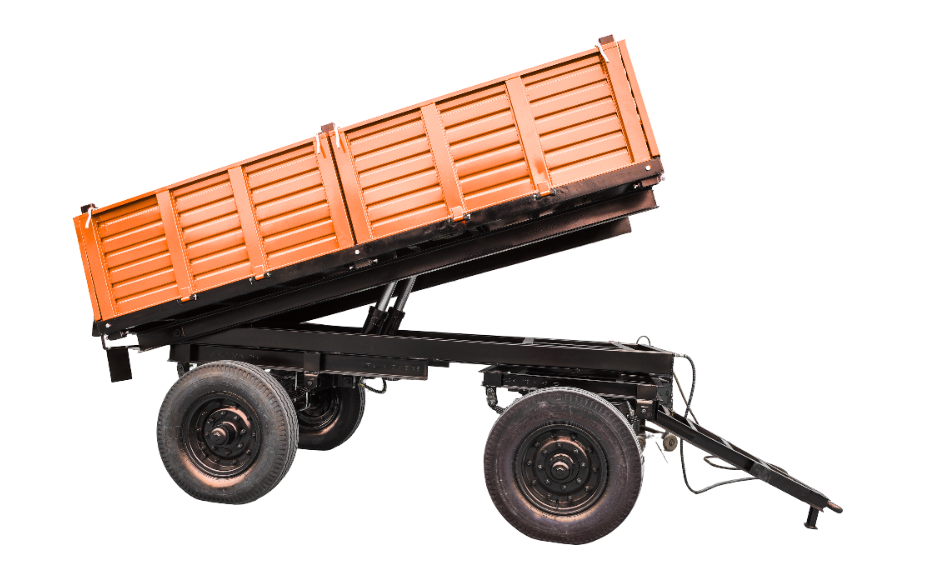

- It is used for transporting materials like seeds, fertilizers, implements etc. needed on the fields and also transporting the finished products to the warehouse/markets. The tipping mechanism allows the farmer to unload the goods from the Trailor without the need of any additional labour and is also less time consuming than manual unloading. This results in higher cost-savings for the farmer.
Description
SPECIFICATIONS
| Description | 12 Ton 4 Wheel Tipping Trailer | 10 Ton 4 Wheel Tipping Trailer | 8 Ton 4 Wheel Tipping Trailer | 6 Ton 4 Wheel Tipping Trailer | 5 Ton 4 Wheel Tipping Trailer |
|---|---|---|---|---|---|
| Model No. | 12T-4W | 10T-4W | 8T-4W | 6T-4W | 5T-4W |
| HP Range | 90-120 | 80-100 | 70-90 | 65-70 | 55-40 |
| Overall Dimension (L x W x H) (mm) | 3960×2030×762 | 3960×2030×610 | 3960×1830×610 | 3650×1830×610 | 3050×1830×610 |
| Axel in mm | 90 | 90 | 80 | 80 | 80 |
| Wheel Nos. | 4 | 4 | 4 | 4 | 4 |
| Wheel Bolt | 8 | 8 | 8 | 8 | 5 |
| Bearing Size | 32213, 32216 | 32213, 32216 | 32213, 32211 | 32211, 32213 | 32209, 32211 |
| Tyre Size | 9.00×20 | 9.00×16 | 9.00×16 | 9.00×16 | 7.50×16 |
| Leaf Spring Size (inch) | 42″ | 42″ | 42″ | 36″ | 36″ (Optional) |
| Chassis in mm | 150×75 Box Type | 150×75 Box Type | 150×75 Box Type | 125×65 | 100×50 |
| Platform | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
| Panel Sheet Thickness | 2 mm | 2 mm | 2 mm | 2 mm | 1.6 mm |
| Round Table | 750 mm | 750 mm | 750 mm | 750 mm | 600 mm |
| Hyd. Cylinder | 6 Ton | 5 Ton | 6 Ton | 6 Ton | 5 Ton |
| No. of Cylinder | 2 Nos. | 2 Nos. | 2 Nos. | 1 Nos. | 1 Nos. |
