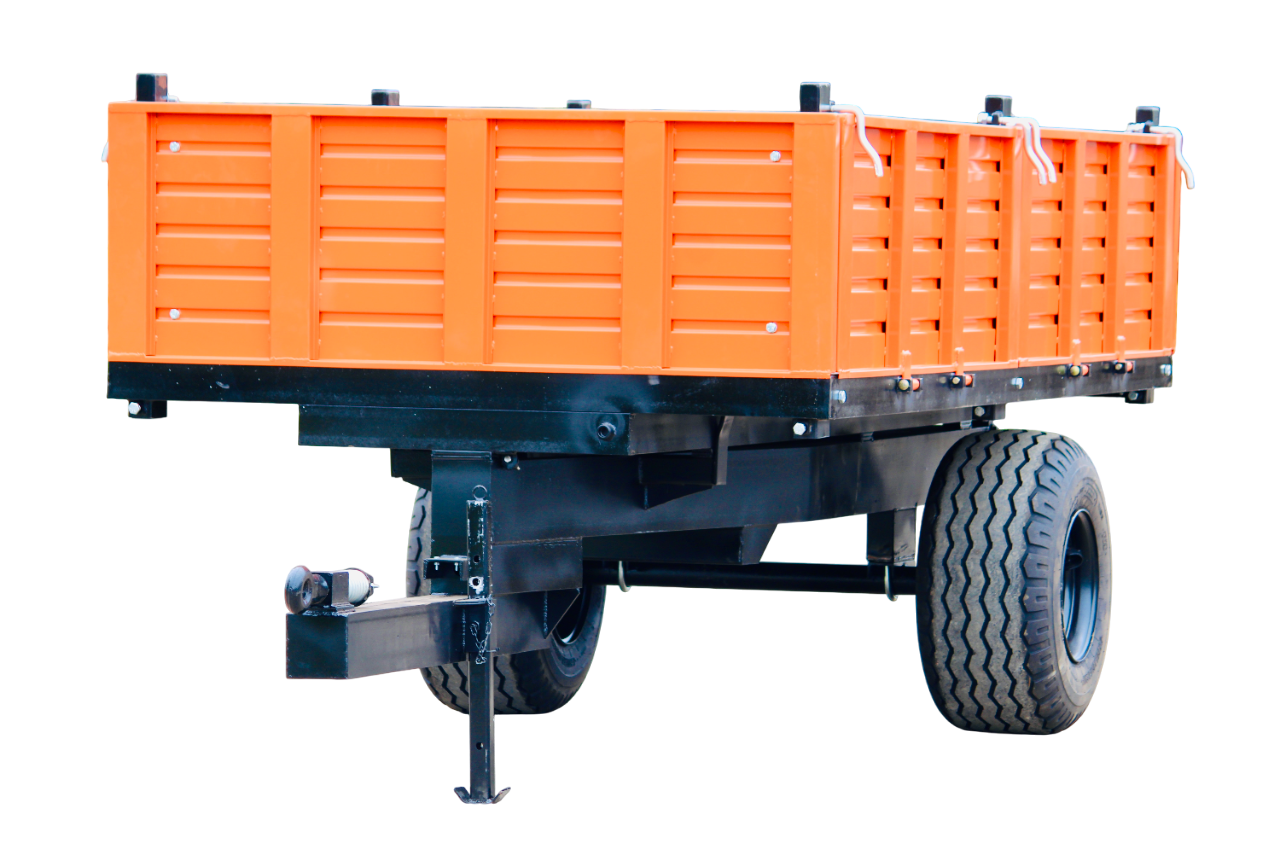

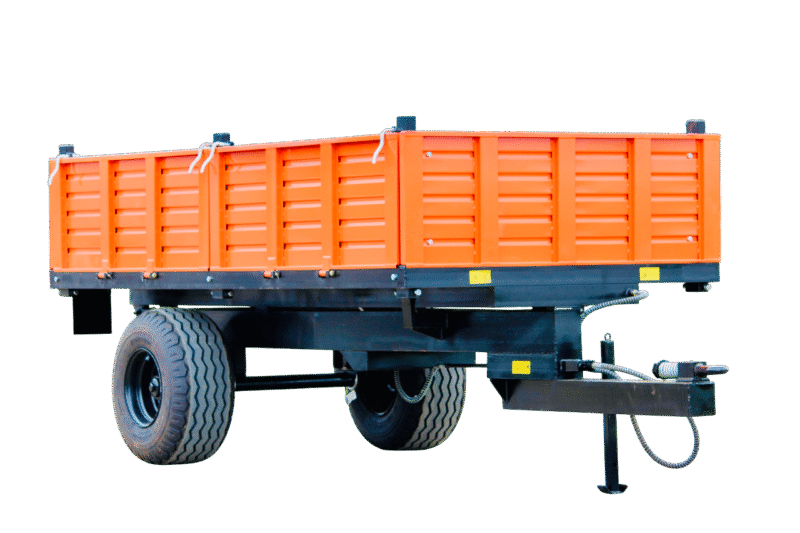

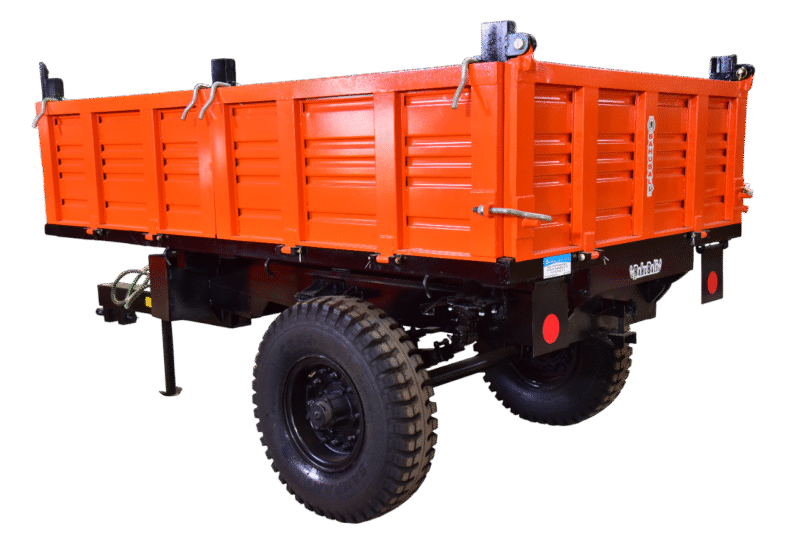

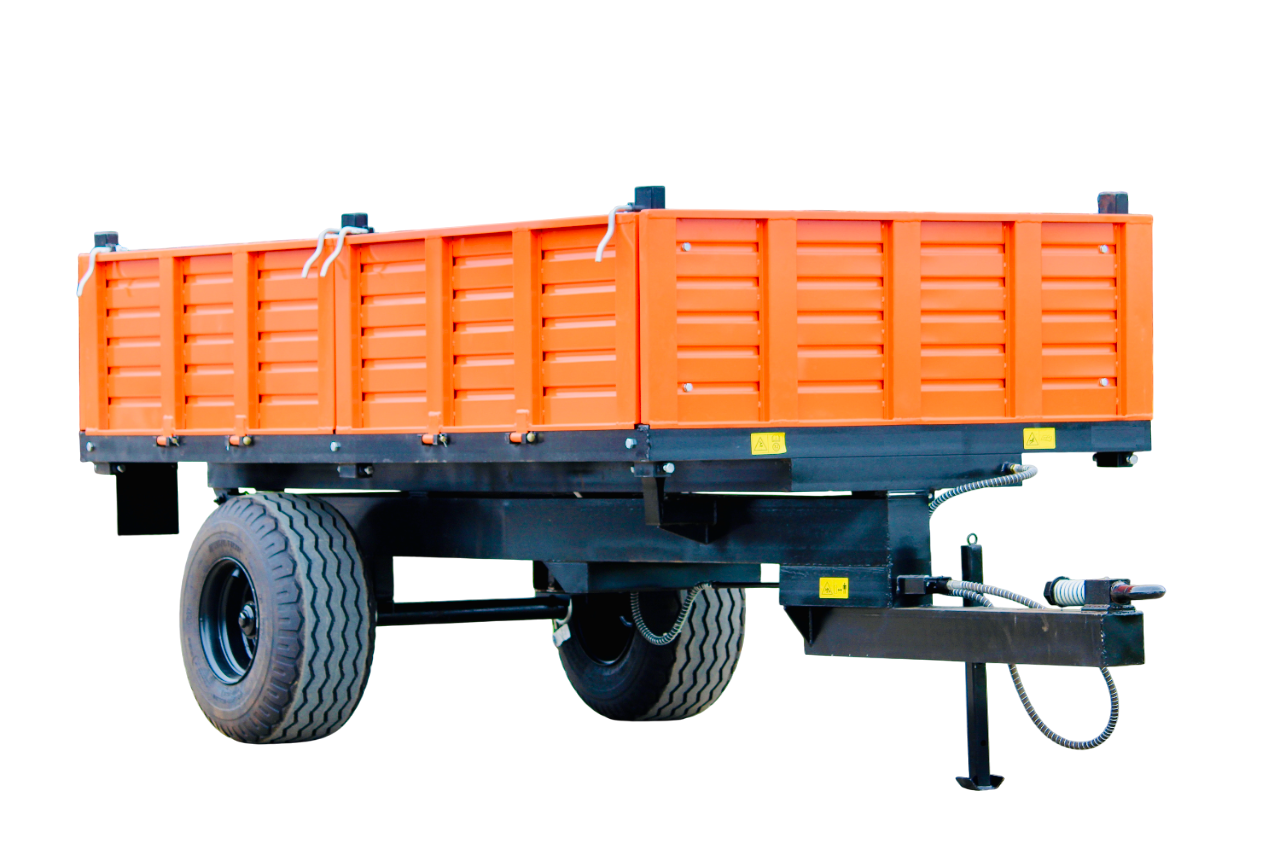

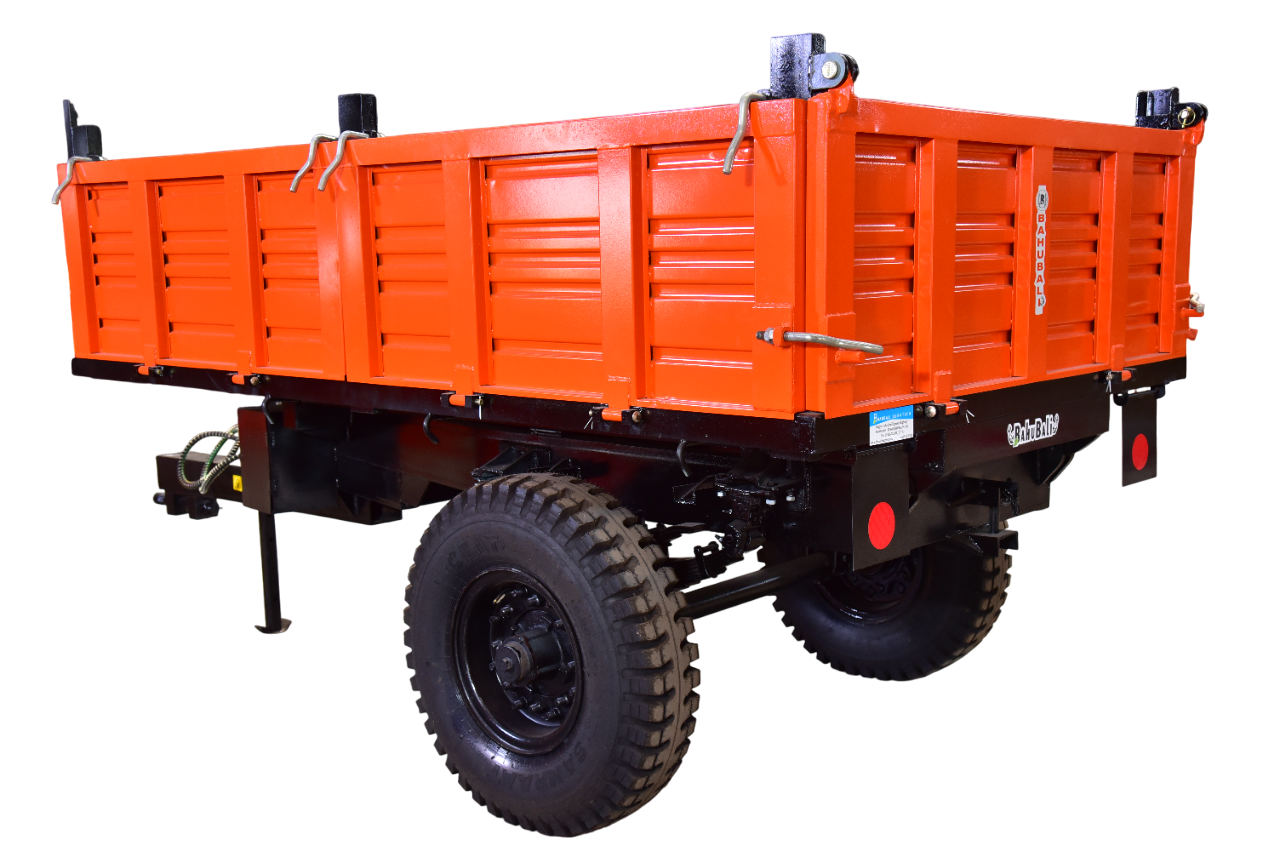

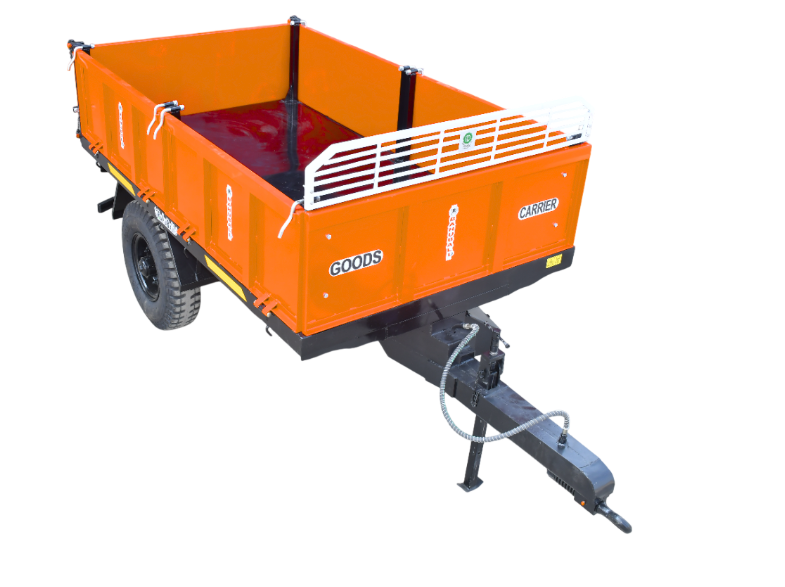

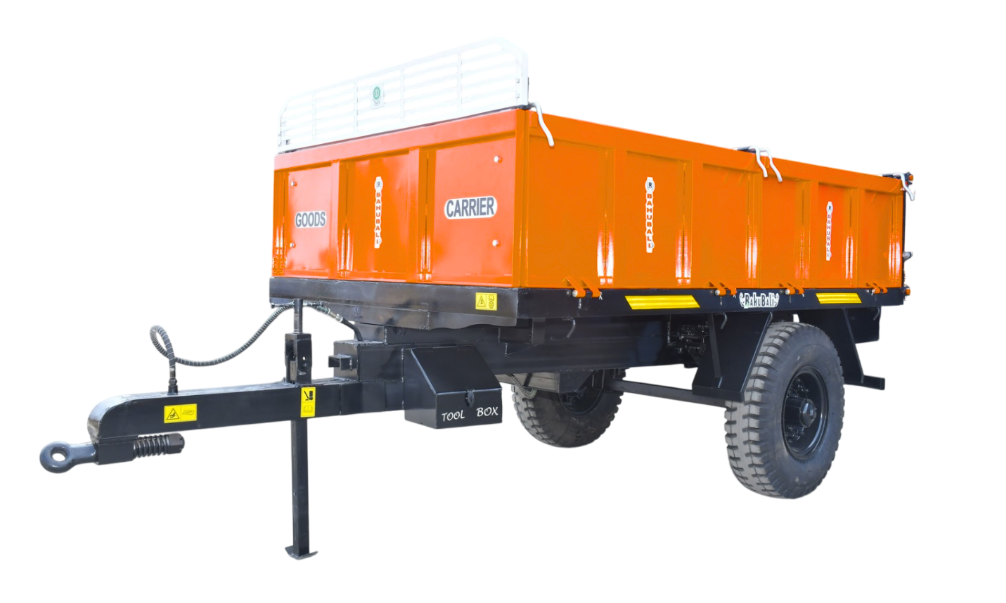

2 Wheel Tipping Trailer
- It has been designed with a completely foldable layout. The front door is fixed while all other doors can be folded (dropped down) which ensures easy loading/unloading of materials.
- CNC machined Hubs & Axles used in this Trailor have been designed for maximum durability & reliability. The bearings placed in these hubs have a very high load bearing capacity, ensuring minimum wear& tear even in toughest usage conditions. Bearing & Hub are protected against water & mud entry using superior quality seals.
- The Tipping Mechanism provided in the Trailor makes use of best-in-class hydraulic jack & pressure pipes which ensures minimum wear & tear. This significantly reduces the maintenance costs for the farmer.
- Its robust chassis has been designed to ensure towing & loading stability, thereby providing a longer life to the Trailor.
- Superior quality wider tyres have been used in this Trailor to make sure that the Trailor has a good grip on the land. This makes it more stable and ensures the operators safety.
Description
SPECIFICATIONS
| Description | 8 Ton 2 Wheel Tipping Trailer | 6 Ton 2 Wheel Tipping Trailer | 5 Ton 2 Wheel Tipping Trailer | 3 Ton 2 Wheel Tipping Trailer |
|---|---|---|---|---|
| Model No. | 8T-2W | 6T-2W | 5T-2W | 3T-2W |
| HP Range | 70-90 | 55-40 | 40-45 | 35-40 |
| Overall Dimension (L x W x H) (mm) | 3960×1830×610 | 3650×1830×610 | 3050×1830×530 | 3050×1830×457 |
| Axel in mm | 90 | 80 | 80 | 60 |
| Wheel Nos. | 2 | 2 | 2 | 2 |
| Wheel Bolt | 8 | 8 | 8 | 5 |
| Bearing Size | 32213, 32216 | 32211, 32213 | 32213, 32211 | 32209, 32211 |
| Tyre Size | 9.00×16 | 9.00×16 | 9.00×16 | 7.50×16 |
| Leaf Spring Size (inch) | 42″ | 36″ (Optional) | 36″ (Optional) | NA |
| Chassis in mm | 200×75 | 200×75 | 150×75 | 150×75 |
| Platform | 3 mm | 3 mm | 3 mm | 3 mm |
| Panel Sheet Thickness | 2 mm | 2 mm | 1.6 mm | 1.6 mm |
| Round Table | NA | NA | NA | NA |
| Hyd. Cylinder | 8 Ton | 6 Ton | 5 Ton | 3 Ton |
| No. of Cylinder | 1 Nos. | 1 Nos. | 1 Nos. | 1 Nos. |
