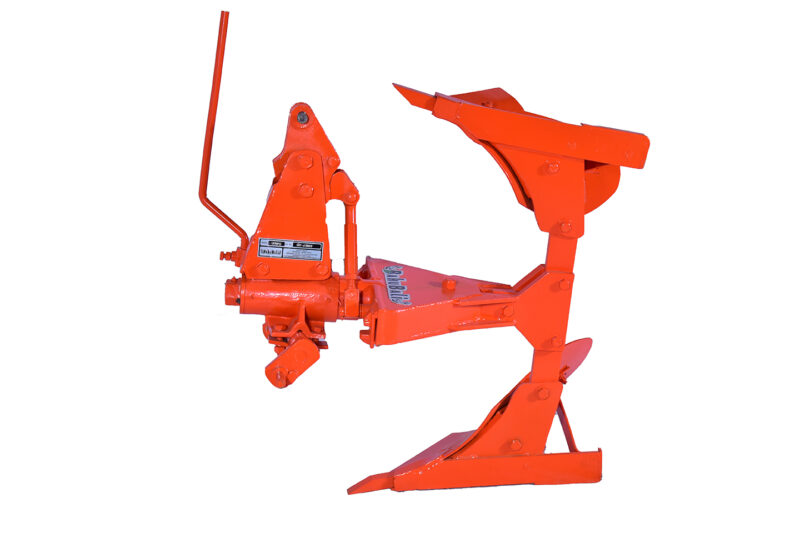

Single Bottom Reversible Plough

  1. Reversible MB Plough is a specially designed agricultural implement used for turning the soil levels up side down, incorporating soil residues and making available more fertile layer for the new crop. It provides deep seed bed preparation with proper aeration and drainage. MB Plough is used as a primary tillage implement for soft and hard soils.
  2. It has a pair of two sets of Mould board ploughs which can be changed or reversed to work in both direction.
  3. Reversing of the Furrow easily done by tilting of a handle bar.
  4. It is easily used for deep-opening and loosening of the soil.
  5. It lifts the soil-cold and throws it on the soil surface breaking the soil-cold into smaller particle size.

Description

Specification

Model Number 1-MBRP 2-MBRP 2-MBRP Unit
Number Furrow (One Side) 1 2 2 Nos.
Size of Plough 8 10
Number of boards 2 4 4 Nos.
Complete width of cut 250-315 450-510 500-615 mm
Depth of Cut 150-200 150-200 150-200 mm
Mould Board 6 6 6 mm
Suitable HP range 18-25 22-27 24-27 HP
Weight 122 190 225 Kg
